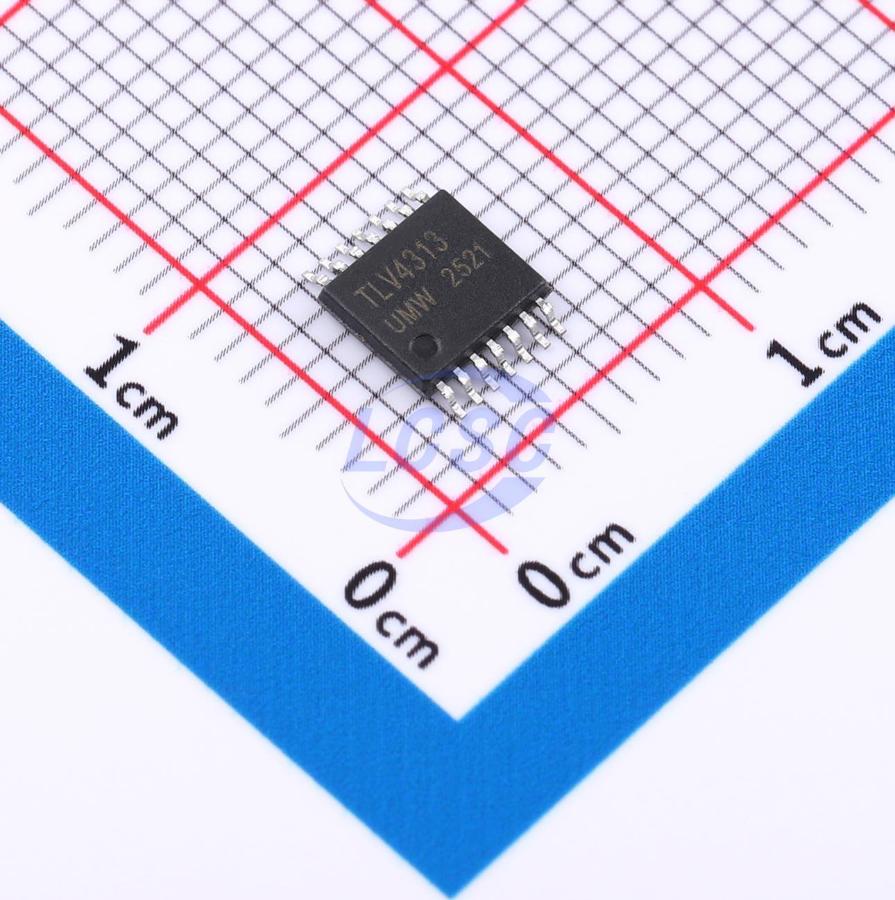

TLV4313IPWR(UMW)

15mA 4 750uV 500V/ms 1pA 85dB 65uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS CompliantActive

Single-channel, dual-channel and quad-channel precision operational amplifiers

Manufacturer: UMW
Manufacturer part #: TLV4313IPWR(UMW)
Store part #: C22368267
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,935 in stock

#C22368267

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹42.20	₹211.00
50+	₹33.15	₹1,657.50
150+	₹29.28	₹4,392.00
500+	₹24.45	₹12,225.00
2,500+	₹22.29	₹55,725.00
4,000+	₹21.00	₹84,000.00

Quantity (min 5, multiples of 5)

5 × ₹42.20

₹211.00

excl. GST

₹248.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TLV4313IPWR(UMW)

₹211.00 for 5 + GST

Specifications

Output Current: 15mA
Number of Channels: 4
Vos - Input Offset Voltage: 750uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 65uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 26nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.164 g

Overview

The UMW TLV313 series single-channel, dual-channel, and quad-channel precision op-amps combine low power consumption with solid performance. This makes them suitable for a wide range of applications such as wearable devices, utility metering, building automation, and currency counters. The series features rail-to-rail input and output swing, low quiescent current (typical 65 μA), wide bandwidth (1 MHz), and ultra-low noise (26 nV/√Hz at 1 kHz), making them attractive for battery-powered applications that require a good balance between cost and performance. In addition, the low input bias current enables these devices to be used in applications with megohm-level source impedances.

Applications

Medical & Healthcare
Fitness & Wearable Electronics
Utility Metering (Heat, Water, Energy)

Key features

Precision amplifier for cost-sensitive systems
Low quiescent current: 65 μA/channel
Wide supply voltage range: 1.8V to 5.5V
Low noise: 26 nV/√Hz at 1 kHz
Gain bandwidth product: 1 MHz
Rail-to-rail input/output
Low input bias current: 1 pA
Low offset voltage: 0.75 mV
Unity-gain stable
Internal RF/EMI filter
Extended operating temperature range: -40℃ ~ +125℃
