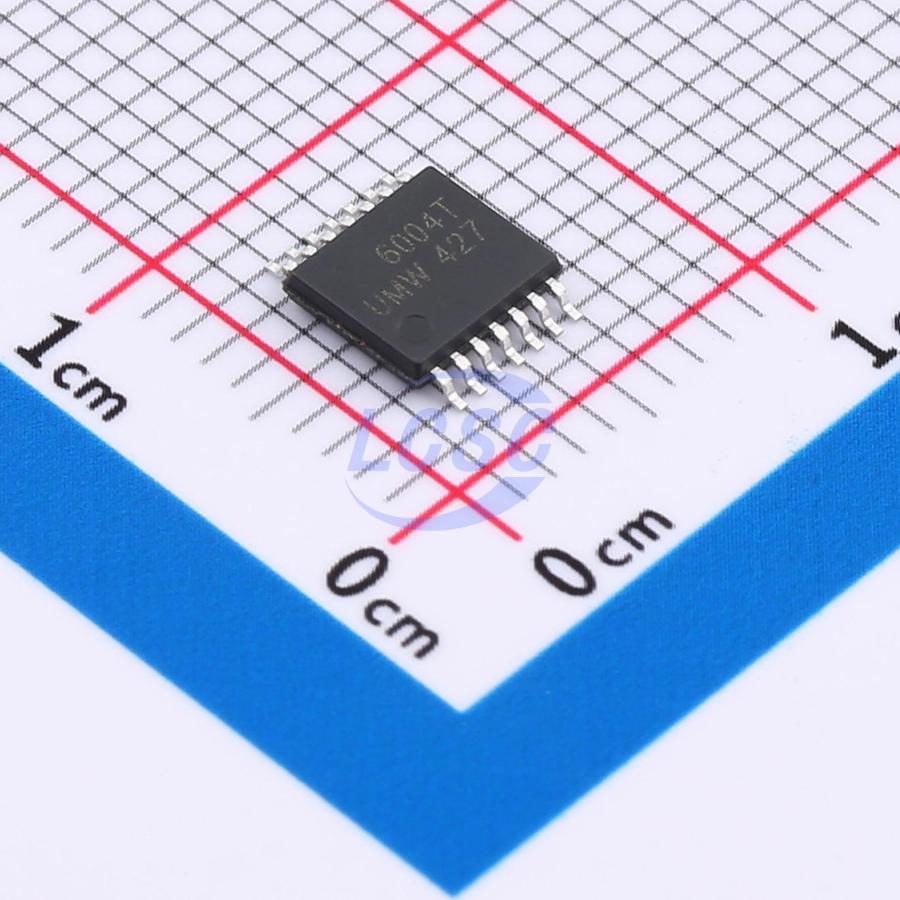

MCP6004T-I/ST(UMW)

23mA 4 4.5mV 600V/ms 1pA 76dB 100uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: UMW
Manufacturer part #: MCP6004T-I/ST(UMW)
Store part #: C32713110
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,465 in stock

#C32713110

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.36	₹126.80
50+	₹19.74	₹987.00
150+	₹17.34	₹2,601.00
500+	₹14.34	₹7,170.00
2,500+	₹13.01	₹32,525.00
4,000+	₹12.20	₹48,800.00

Quantity (min 5, multiples of 5)

5 × ₹25.36

₹126.80

excl. GST

₹149.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

MCP6004T-I/ST(UMW)

₹126.80 for 5 + GST

Specifications

Output Current: 23mA
Number of Channels: 4
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 76dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 100uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.165 g

Overview

MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for general - purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains 45° phase margin (typical) with a 500 pF capacitive load. This family operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail - to - rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 6.0V.

Applications

Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery - Powered Systems

Key features

Gain Bandwidth Product: 1 MHz (typical)
Rail - to - Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 100 μA (typical)
Phase Margin: 90° (typical)
Temperature Range:
Industrial: - 40°C to + 85°C
Extended: - 40°C to + 125°C
Available in Single, Dual and Quad Packages
