MICROCHIP

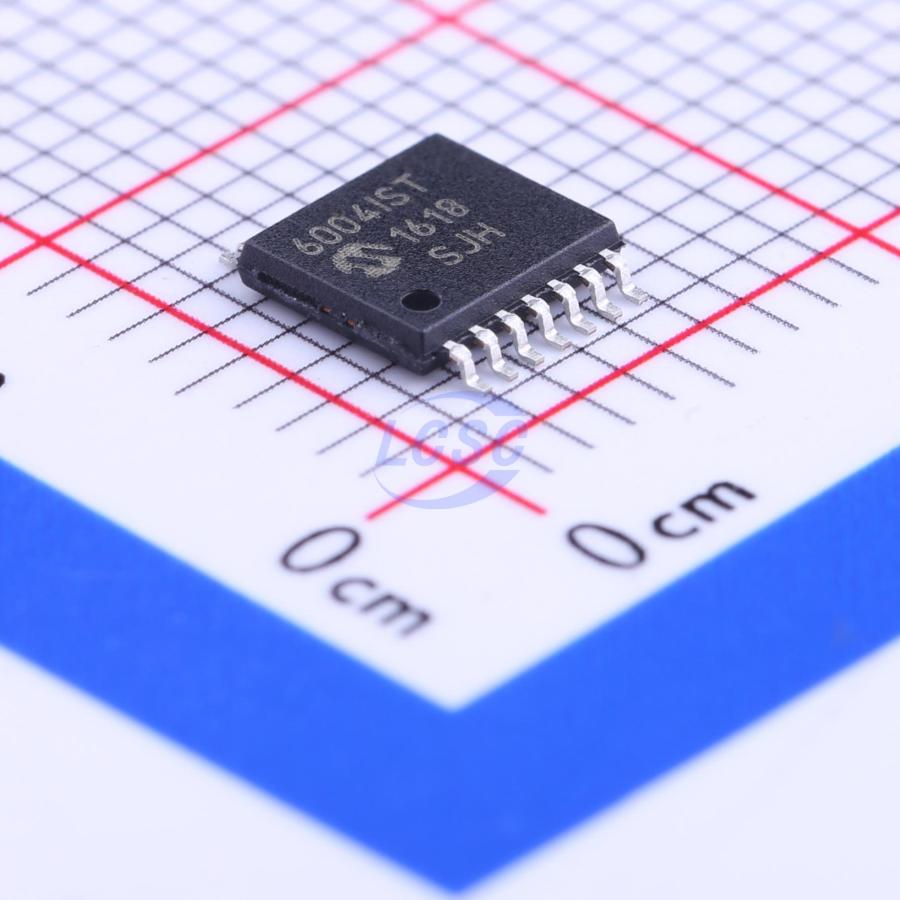

MCP6004T-I/ST

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14

TSSOP-14ROHS3 CompliantActive

1 MHz low-power operational amplifier

Manufacturer: MICROCHIP
Manufacturer part #: MCP6004T-I/ST
Store part #: C50282
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,553 in stock

#C50282

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹76.54	₹76.54
10+	₹60.06	₹600.60
30+	₹53.13	₹1,593.90
100+	₹44.45	₹4,445.00
500+	₹40.55	₹20,275.00
1,000+	₹38.17	₹38,170.00

Quantity (min 1)

1 × ₹76.54

₹76.54

excl. GST

₹90.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

MCP6004T-I/ST

₹76.54 for 1 + GST

Specifications

Output Current: 23mA
Number of Channels: 4
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 100uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.249 g

Overview

The MCP6001/2/4 series operational amplifiers are designed for a wide range of general-purpose applications. This series features a 1 MHz GBWP and 90° phase margin (typical). With a 500 pF capacitive load, it also maintains a 45° phase margin (typical). The series remains operational with a single supply voltage as low as 1.8V, with a quiescent current of 100 μA (typical). In addition, the MCP6001/2/4 supports rail-to-rail input and output, with a common-mode input voltage range from VDD + 300 mV to VSS - 300 mV. This series of operational amplifiers is designed using an advanced CMOS process. The MCP6001/2/4 series is available in industrial and extended temperature ranges. The supply voltage range is 1.8V to 5.5V.

Applications

Automotive
Portable devices
Photodiode amplifiers
Analog filters
Notebooks and PDAs
Battery-powered systems

Key features

Available in SC-70-5 and SOT-23-5 packages
1 MHz gain bandwidth product (typical)
Rail-to-rail input/output
Supply voltage: 1.8V to 5.5V
Supply current: IQ = 100 μA (typical)
90° phase margin (typical)
Temperature range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
Available in single, dual, and quad op-amp configurations

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6004-I/ST#C185811MICROCHIP · TSSOP-14	MICROCHIP	TSSOP-14	30	₹119.68 · 30 in stock	View
MCP6004T-E/ST(UMW)#C32713111UMW · TSSOP-14	UMW	TSSOP-14	11,950	₹22.37 · 11,950 in stock	View
MCP6004T-E/ST#C627416MICROCHIP · TSSOP-14	MICROCHIP	TSSOP-14	4,307	₹77.85 · 4,307 in stock	View
MCP6004-E/ST#C637137MICROCHIP · TSSOP-14	MICROCHIP	TSSOP-14	57	₹97.94 · 57 in stock	View
MCP6004T-I/ST(UMW)#C32713110UMW · TSSOP-14	UMW	TSSOP-14	14,465	₹25.36 · 14,465 in stock	View
