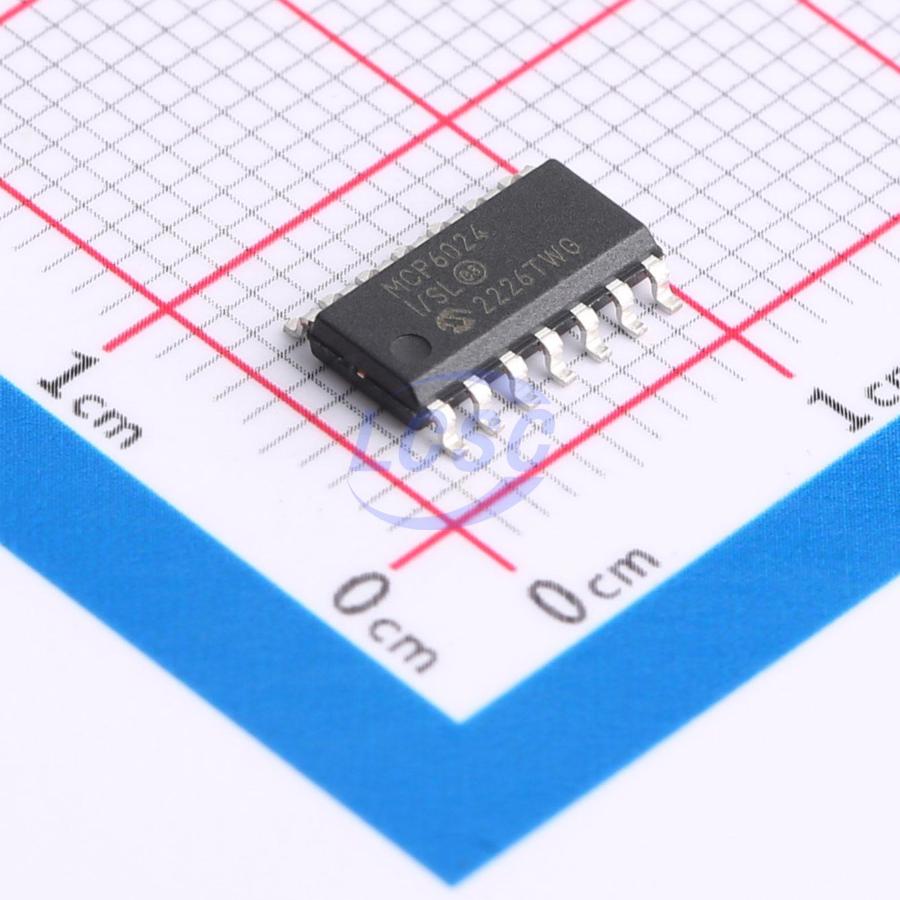

MCP6024T-I/SL

30mA 4 500uV 7V/us 90dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Rail-to-Rail Input/Output, 10 MHz Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6024T-I/SL
Store part #: C43211
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,012 in stock

#C43211

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹223.57	₹223.57
10+	₹186.60	₹1,866.00
30+	₹166.27	₹4,988.10
100+	₹143.36	₹14,336.00
500+	₹132.97	₹66,485.00
1,000+	₹128.44	₹1,28,440.00

Quantity (min 1)

1 × ₹223.57

₹223.57

excl. GST

₹263.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,600 per reel

MCP6024T-I/SL

₹223.57 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 4
Vos - Input Offset Voltage: 500uV
Slew Rate: 7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 3.5uV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation;ESD protection
Input Voltage Noise Density: 8.7nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,600 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.115 g

Overview

The MCP6021, MCP6021R, MCP6022, MCP6023 and MCP6024 are rail-to-rail input and output op amps with high performance. Key specifications include: wide bandwidth (10 MHz), low noise (8.7 nV/√Hz), low input offset voltage and low distortion (0.00053% THD+N). The MCP6023 also offers a Chip Select pin (CS) that gives power savings when the part is not in use. The single MCP6021 and MCP6021R are available in SOT-23-5. The single MCP6021, single MCP6023 and dual MCP6022 are available in 8-lead PDIP, SOIC and TSSOP. The Extended Temperature single MCP6021 is available in 8-lead MSOP. The quad MCP6024 is offered in 14-lead PDIP, SOIC and TSSOP packages. The MCP6021/1R/2/3/4 family is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V.

Applications

Automotive
Multi-Pole Active Filters
Audio Processing
DAC Buffer
Test Equipment
Medical Instrumentation

Key features

Rail-to-Rail Input/Output
Wide Bandwidth: 10 MHz (typical)
Low Noise: 8.7 nV/√Hz, at 10 kHz (typical)
Low Offset Voltage:
Industrial Temperature: ±500 μV (maximum)
Extended Temperature: ±250 μV (maximum)
Mid-Supply VREF: MCP6021 and MCP6023
Low Supply Current: 1 mA (typical)
Total Harmonic Distortion: 0.00053% (typical, G = 1 V/V)
Unity Gain Stable
Power Supply Range: 2.5V to 5.5V
Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
