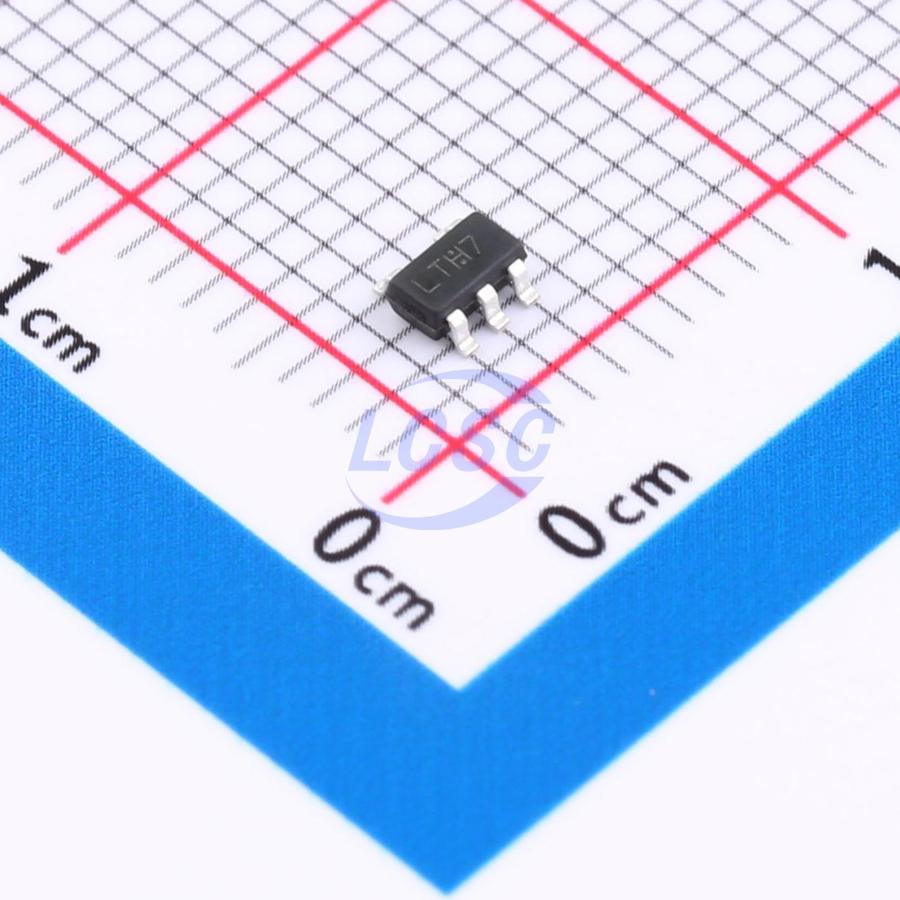

MSTP4054-42
Lithium Battery 500mA SOT23-5L Battery Management
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTP4054-42
- Store part #
- C49208527
- Package / case
- SOT23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,800 in stock
#C49208527
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.21 | ₹64.20 |
| 200+ | ₹2.51 | ₹502.00 |
| 600+ | ₹2.12 | ₹1,272.00 |
| 3,000+ | ₹1.88 | ₹5,640.00 |
| 9,000+ | ₹1.61 | ₹14,490.00 |
| 21,000+ | ₹1.51 | ₹31,710.00 |
20 × ₹3.21
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTP4054-42
₹64.20 for 20 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Quiescent Current
- 5nA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Reverse current blocking;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.043 g
Overview
MSTP4054-42 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its minimal external circuitry makes it ideal for portable devices. Compatible with both USB power and adapter power, it integrates an internal reverse-current protection circuit, eliminating the need for an external blocking diode. A thermal feedback mechanism automatically adjusts the charge current to limit the chip temperature during high-power operation or in high-temperature environments. The device has a full-charge voltage of 4.2V, and the charge current is programmable via an external resistor. When the charge current drops to the end-of-charge (EOC) current, the charging process terminates automatically. Once the input power is removed, the device automatically enters a low-current standby mode with a standby current as low as 5nA.
Applications
- Charging dock
- Bluetooth headset
- GPS
- Mobile phone
- Digital camera
Key features
- Maximum charge current: 500mA
- Ultra-low quiescent current: 5nA
- No external MOSFET, sense resistor, or blocking diode required
- Intelligent thermal regulation for maximum charge rate
- Automatic recharge function
- Precharge voltage: 4.2V
- Charge termination current: 75mA
- Trickle charge threshold: 2.9V
- Package: SOT23-5L
- ESD HBM: 2KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTH7(MS)#C49208526MSKSEMI · SOT23-5L | MSKSEMI | SOT23-5L | 4,650 | ₹2.82 · 4,650 in stock | View |
 | MSTP4054H#C49208529MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 6,230 | ₹8.03 · 6,230 in stock | View |
 | TP4054-MS#C7473157MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,390 | ₹6.07 · 1,390 in stock | View |
 | 4054H-MS#C49208528MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,400 | ₹7.37 · 1,400 in stock | View |
 | TP4055-MS#C22462568MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 30 | ₹11.97 · 30 in stock | View |
