NC7S00M5X
10uA 2V~6V 15ns@5V,15pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive

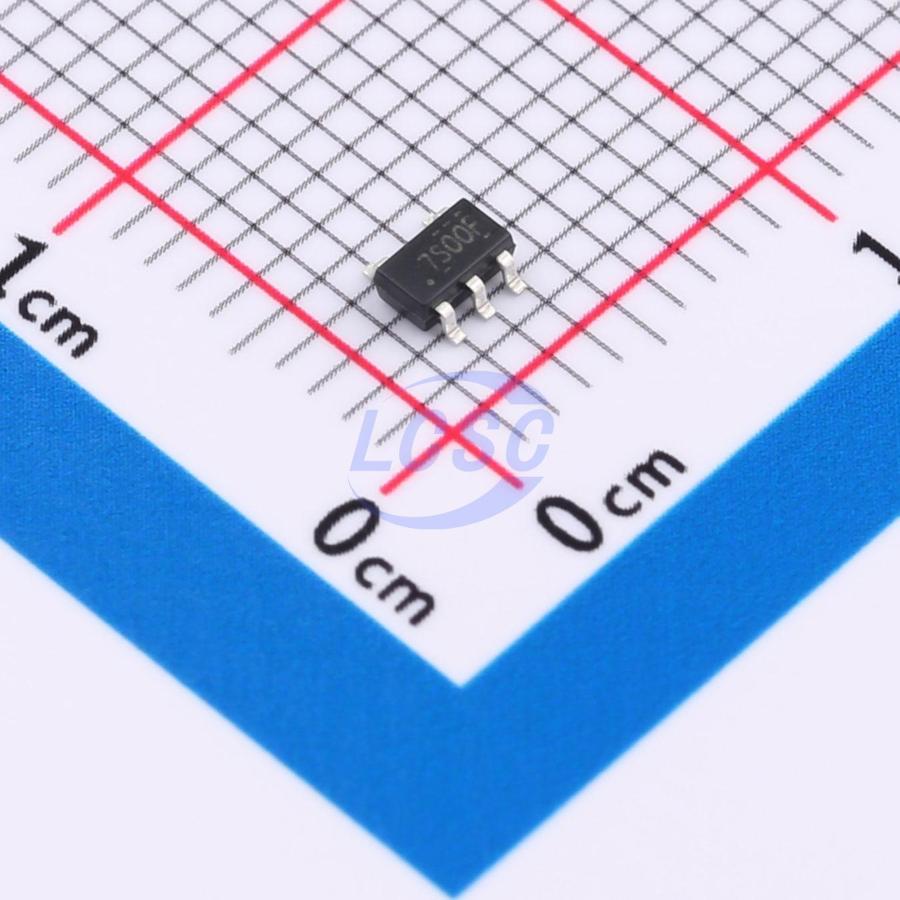

2-input NAND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S00M5X
- Store part #
- C19829494
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C19829494
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.41 | ₹74.10 |
| 100+ | ₹5.86 | ₹586.00 |
| 300+ | ₹5.08 | ₹1,524.00 |
| 3,000+ | ₹4.50 | ₹13,500.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.80 | ₹34,200.00 |
10 × ₹7.41
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S00M5X
₹74.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 15ns@5V,15pF
- Output Logic Level - Low
- 260mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
NC7S00M5X are CMOS 2-input NAND gate ICs. They realize a high speed operation similar to LSTTL with a lower power consumption by CMOS features. An inner circuit structure of 3-stages logic gates obtains wider noise immunity and constant output.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Power voltage range: 2.0 ~ 6.0V
- Operation temp. range: -40 ~ +85°C
- IOH = IOL = 2mA (min)
- ESD Protection Exceeds ESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
