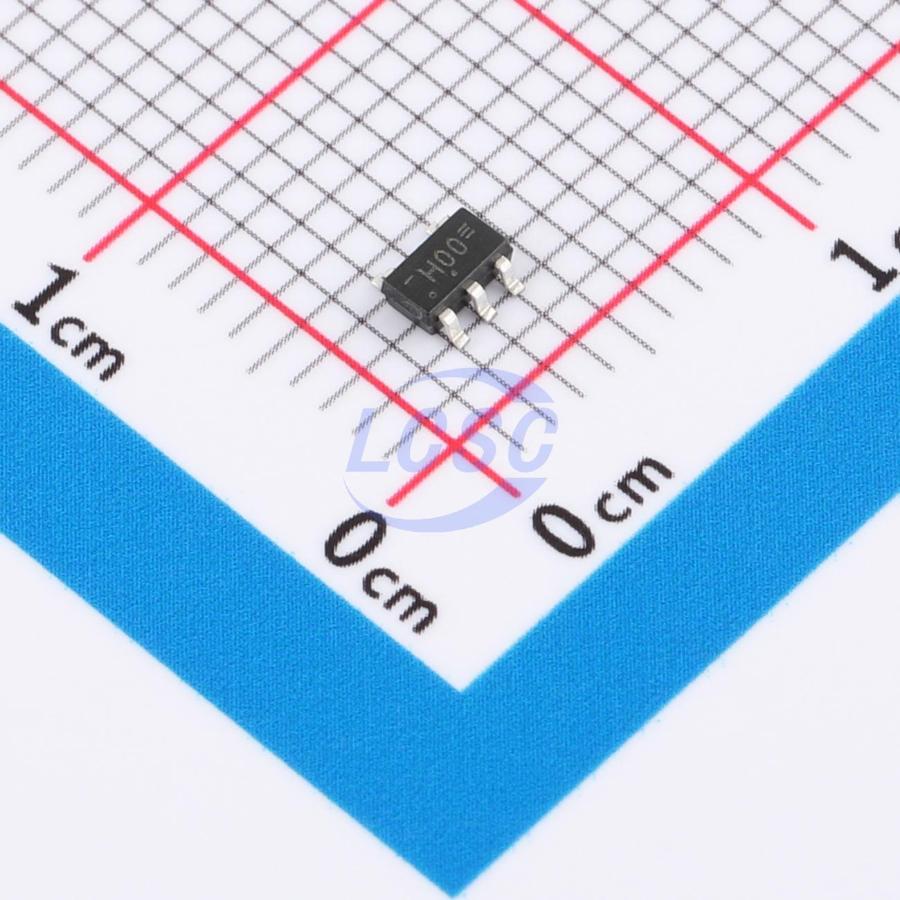

74HC1G00GV
2V~6V 17ns@6V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G00GV
- Store part #
- C52205090
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C52205090
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹4.56 | ₹456.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 3,000+ | ₹3.49 | ₹10,470.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.94 | ₹26,460.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G00GV
₹57.90 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 17ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74HC1G00 is a high-speed CMOS 2-input NAND gate fabricated using silicon gate CMOS technology. Combining CMOS low-power characteristics with speeds comparable to LS-TTL, it features a buffered three-stage internal circuit architecture that delivers wide noise margins and stable output.
Key features
- Basic gate function available as part of Renesas' Unified Logic product line.
- Embossed carrier tape packaging for high-speed automated placement.
- Electrical characteristics equivalent to 74HC1G00.
- Supply voltage range: 2 to 6 V.
- Operating temperature range: -40 to +85℃.
- Output high current = Output low current = 2 mA (min).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G00S5#C42460123TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,930 | ₹7.12 · 2,930 in stock | View |
 | NC7S00M5X#C19829494TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,750 | ₹7.41 · 1,750 in stock | View |
 | 74AHC1G00GV#C19829583TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,270 | ₹7.22 · 2,270 in stock | View |
 | TC7S00F#C19829489TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,330 | ₹7.54 · 2,330 in stock | View |
 | MC74VHC1G132DTT1G-TP#C53100487TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,700 | ₹6.18 · 2,700 in stock | View |
