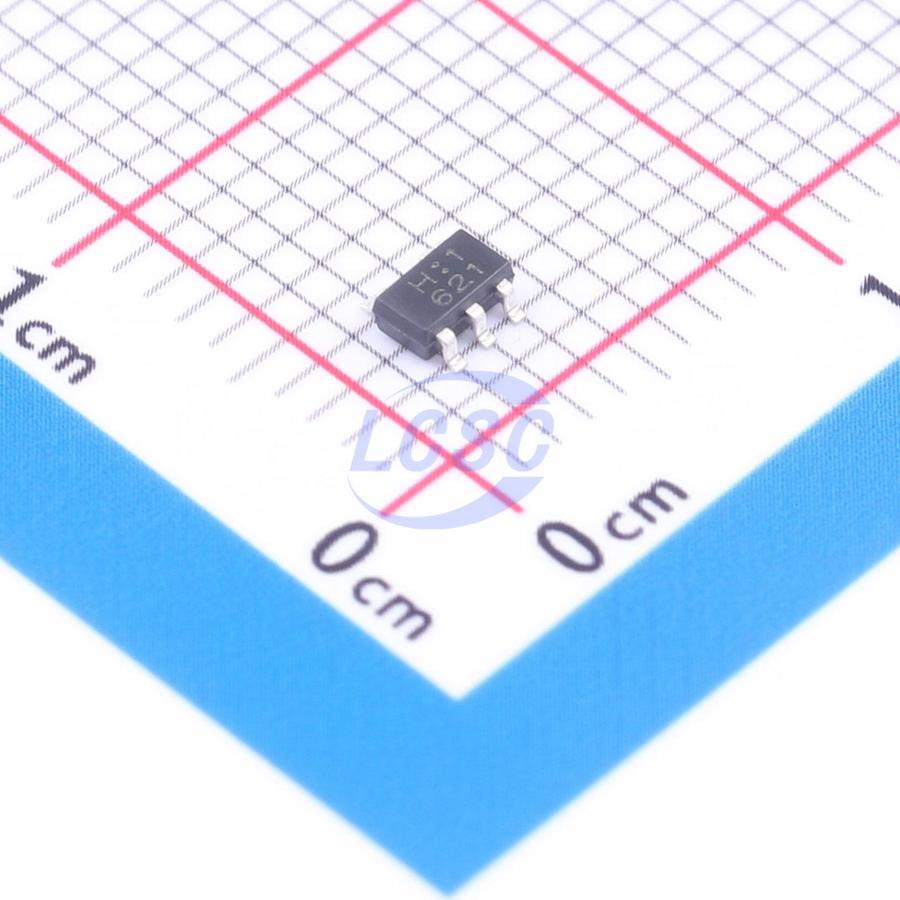

TC7SH00F-TP

TC7SHO0 is a single 2-input NAND gate. The device is designed to operate with Vcc ranging from 2 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as level translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action on all inputs allows the circuit to tolerate slower input rise and fall times. The TC7SHO0 performs the Boolean function Y = A × B or Y = A + B in positive logic. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. The TC7SHO0 is available in SOT23-5 and SOT353 packages.

Applications

• Active Noise Cancellation (ANC)
• Blood Pressure Monitor
• Embedded PC
• SSD: Client and Enterprise
• TV: LCD/Digital and HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard and Mouse
• Power Supply: Telecom/Server AC/DC Controller

Key features

• Wide supply voltage range: 2 V to 5.5 V
• Maximum propagation delay TpD of 3.8 ns at VCC = 3.3 V
• Low power consumption, maximum quiescent current Icc of 10 μA
• Output drive current of ±24 mA at VCC = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• HBM ESD protection 2000 V (A114-A)
• CDM ESD protection 1000 V (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
