onsemiDatasheet (PDF)

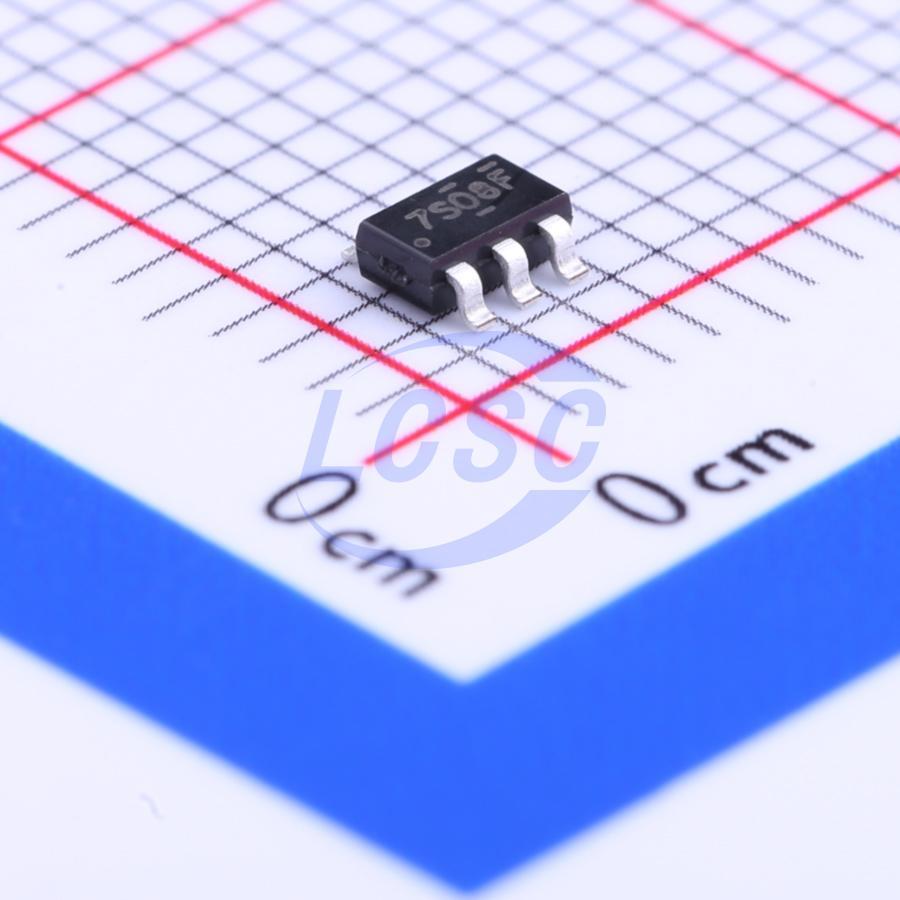

NC7S08M5X
1uA 2V~6V 17ns@6V,50pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
Single 2-Input High Performance CMOS AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7S08M5X
- Store part #
- C128374
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C128374
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.44 | ₹104.40 |
| 100+ | ₹8.45 | ₹845.00 |
| 300+ | ₹7.46 | ₹2,238.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹5.61 | ₹33,660.00 |
| 9,000+ | ₹5.31 | ₹47,790.00 |
10 × ₹10.44
₹104.40
excl. GST
₹123.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S08M5X
₹104.40 for 10 + GST
Specifications
- Input Logic Level - Low
- 500mV
- Input Logic Level - High
- 1.5V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7S Series
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 17ns@6V,50pF
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The NC7S08 is a single 2-Input high performance CMOS AND Gate. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both inputs and output with respect to the VCC and GND rails. Three stages of gain between inputs and outputs assures high noise immunity and reduced sensitivity to input edge rate.
Key features
- Space saving SOT23 or SC70 5-lead package
- Ultra small MicroPak™ Pb-Free leadless package
- High Speed; tPD 3.5 ns typ
- Low Quiescent Power; ICC < 1μA
- Balanced Output Drive; 2mA IoL, -2mA IoH
- Broad VCC Operating Range; 2V–6V
- Balanced Propagation Delays
- Specified for 3V operation
