TECH PUBLIC

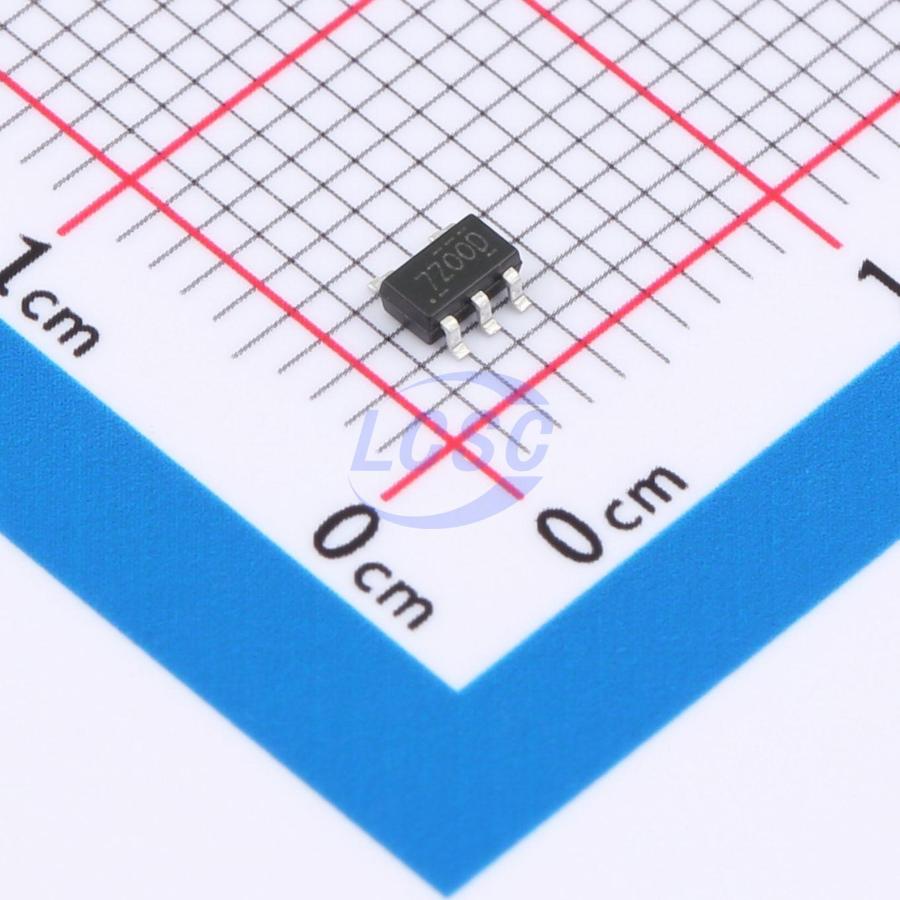

NC7SZ00M5X

1.65V~5.5V 3.6ns@3.3V,15pF 10uA SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Single 2-Input Positive-NAND Gate

Manufacturer: TECH PUBLIC
Manufacturer part #: NC7SZ00M5X
Store part #: C19829499
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,140 in stock

#C19829499

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
10+	₹7.03	₹70.30
100+	₹5.50	₹550.00
300+	₹4.75	₹1,425.00
3,000+	₹4.17	₹12,510.00
6,000+	₹3.72	₹22,320.00
9,000+	₹3.49	₹31,410.00

Quantity (min 10, multiples of 10)

10 × ₹7.03

₹70.30

excl. GST

₹82.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7SZ00M5X

₹70.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;200mV;300mV
Propagation Delay: 3.6ns@3.3V,15pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.5V;1.9V;2.5V;2.6V;4V
Quiescent Current(Iq): 10uA
Number of Channels: 2;1
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.035 g

Overview

This single 2-input positive-NAND gate is designed for 1.65-V to 5.5-V VCC operation. The NC7SZ00 performs the Boolean function Y = A×B(overline) or Y = A(overline) + B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range.

Applications

Audio Dock: Portable
Blu-ray Players and Home Theaters
Embedded PC
MP3 Player/Recorder (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server AC/Dc Supply: Single
Controller: Analog and Digital
Solid State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablet: Enterprise
Video Analytics: Server

Key features

Supports 5-V Vcc Operation
Inputs Accept Voltages to 5.5 V
Provides Down Translation to Vcc
Max tpd of 3.8 ns at 3.3 V
Low Power Consumption, 10 μA Max Icc
±24 mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
Wide operating voltage range
Operates from 1.65 V to 5.5 V
Allows down voltage translation
Inputs accept voltages to 5.5 V
loff feature allows voltages on the inputs and outputs, when Vcc is 0 V
