TP74LVC1G132S5

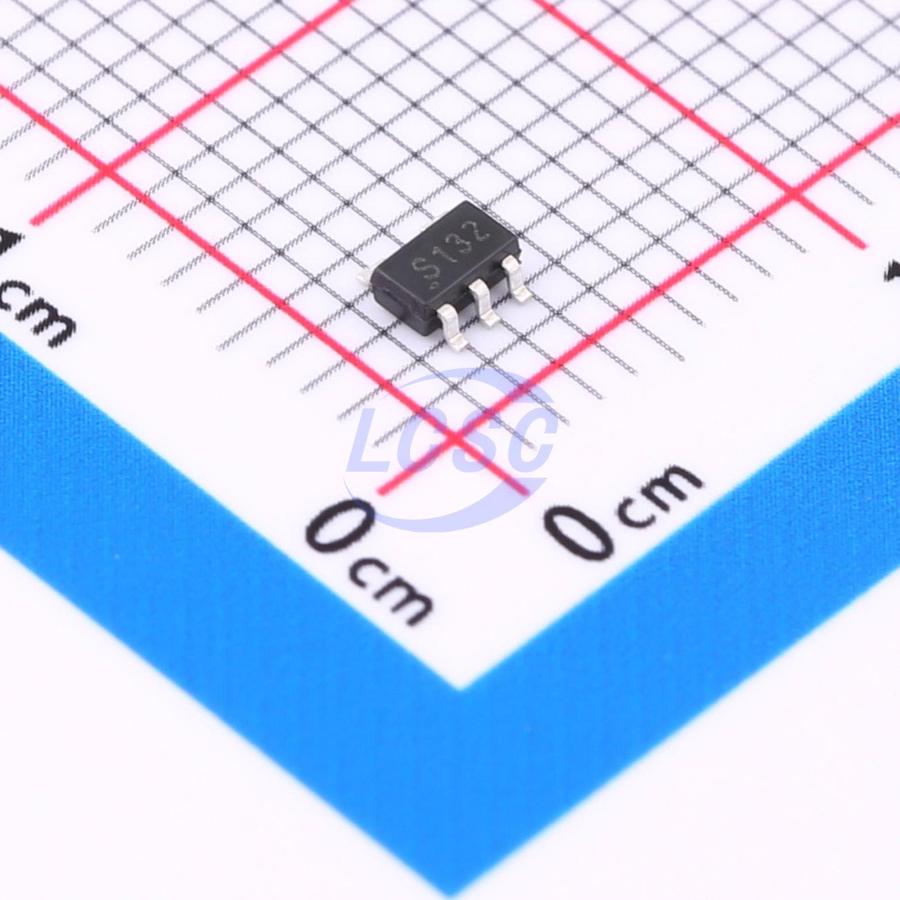

Schmitt trigger 1.65V~5.5V 5ns@5V,50pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT NAND GATE WITH SCHMITT-TRIGGER INPUTS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G132S5
- Store part #
- C46472793
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,440 in stock
#C46472793
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.38 | ₹93.80 |
| 100+ | ₹7.36 | ₹736.00 |
| 300+ | ₹6.34 | ₹1,902.00 |
| 3,000+ | ₹5.57 | ₹16,710.00 |
| 6,000+ | ₹4.96 | ₹29,760.00 |
| 9,000+ | ₹4.66 | ₹41,940.00 |
10 × ₹9.38
₹93.80
excl. GST
₹110.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G132S5
₹93.80 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 5ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74LVC1G132 contains 0ne 2-input NAND gate with Schmitt-trigger inputs designed for 1.65-V to 5.5V VCC operation and performs the Boolean function Y = A·B or Y = A + B in positive logic. Because of Schmitt action, this device has different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device can be triggered from the slowest of input ramps and still give clean jitter-free output signals.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
- Solid State Drive(SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Operate from 1.65V to 5.5V
- Inputs accept voltages to 5.5V
- ±24mA output drive at 3.3V
- Low power consumption, ICC = 10μA (Max)
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A) - 1000 - V Charged - Device Model (C101)
