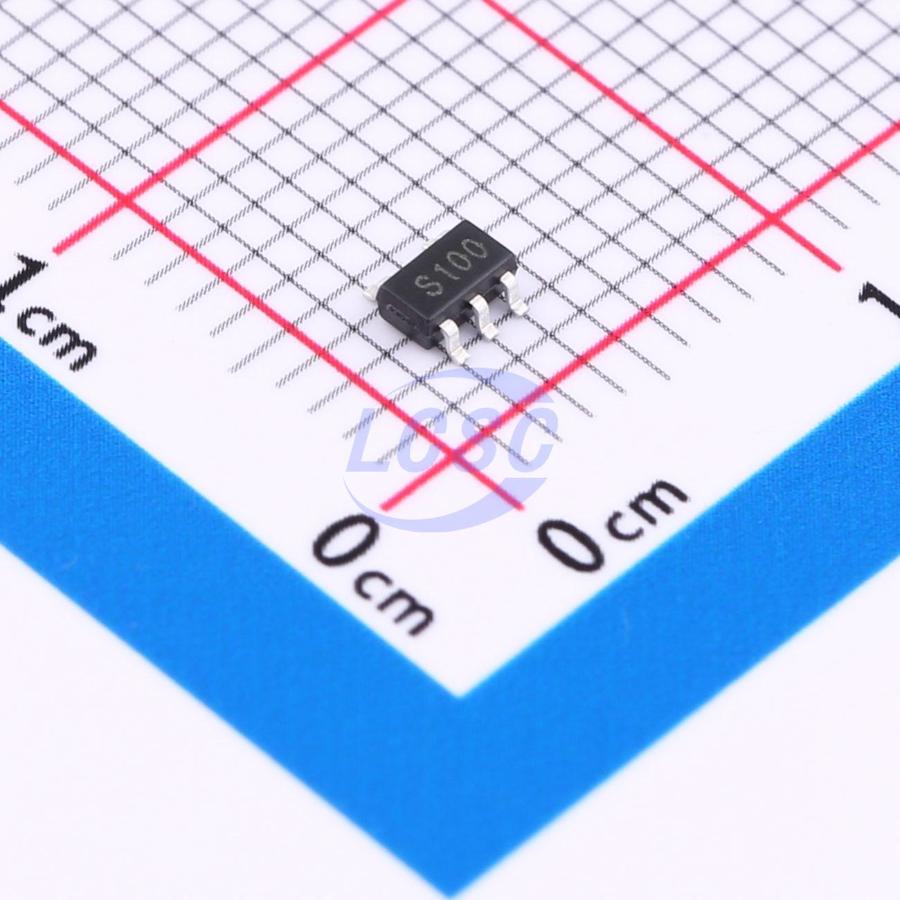

TP74LVC1G00S5
10uA 1.65V~5.5V 12ns@1.8V,30pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT NAND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G00S5
- Store part #
- C42460123
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C42460123
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.12 | ₹71.20 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹4.82 | ₹1,446.00 |
| 1,000+ | ₹4.25 | ₹4,250.00 |
| 5,000+ | ₹3.78 | ₹18,900.00 |
| 10,000+ | ₹3.55 | ₹35,500.00 |
10 × ₹7.12
₹71.20
excl. GST
₹84.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G00S5
₹71.20 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 12ns@1.8V,30pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The TP74LVC1G00 is a 2-input NAND gate device which provides the Function Y = (A • B) (overline) or Y = A (overline) + B (overline) in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
Key features
- Operate from 1.65V to 5.5V
- Inputs Accept Voltages To 5.5V
- High Noise Immunity
- Low Power Dissipation
- ESD Protection Exceeds JESD 22
- -2000-V Human-Body Model (A114-A)
- -1000-V Charged-Device Model (C101)
