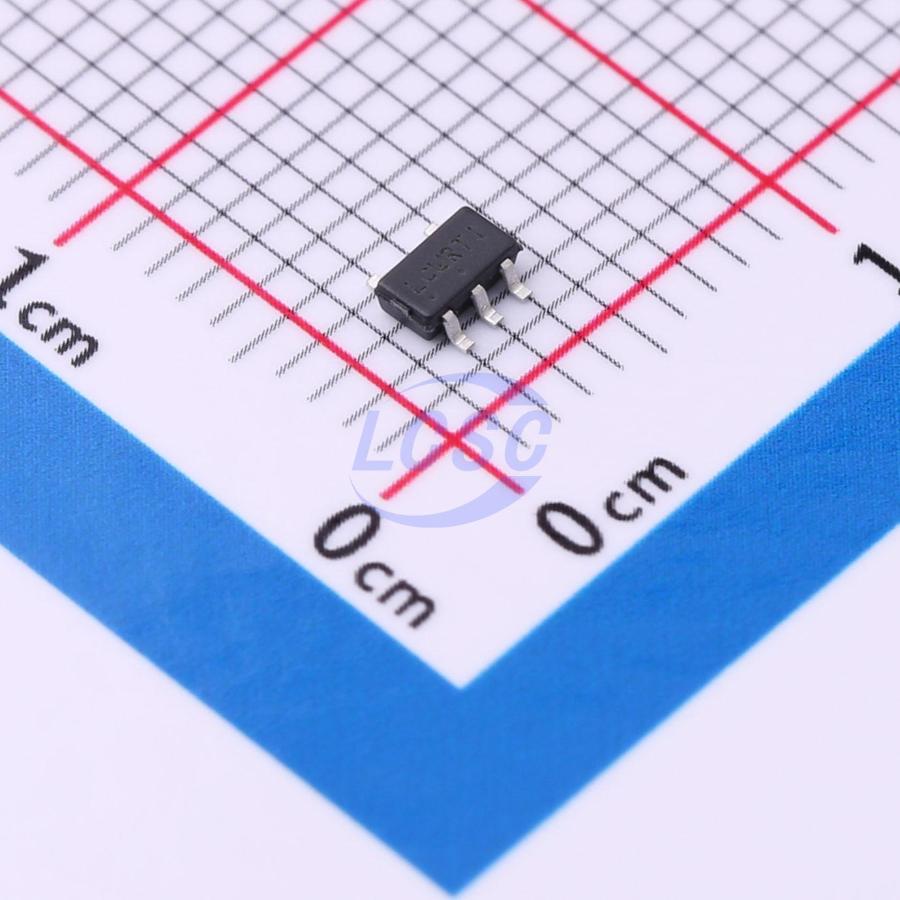

NCP500SN30T1G

The NCP500 series of fixed output low dropout linear regulators are designed for portable battery powered applications which require low noise operation, fast enable response time, and low dropout. The device achieves its low noise performance without the need of an external noise bypass capacitor. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, and resistors for setting output voltage, and current limit and temperature limit protection circuits. The NCP500 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 1.0μF

Applications

• Noise Sensitive Circuits
• VCO's, RF Stages, etc.
• SMPS Post-Regulation
• Hand-Held Instrumentation
• Camcorders and Cameras

Key features

• Ultra-Low Dropout Voltage of 170mV at 150mA
• Fast Enable Turn-On Time of 20μsec
• Wide Operating Voltage Range of 1.8V to 6.0V
• Excellent Line and Load Regulation
• High Accuracy Output Voltage of 2.5%
• Enable Can Be Driven Directly by 1.0V Logic
• Typical RMS Noise Voltage 50μV with No Bypass Capacitor (BW = 10Hz to 100kHz)
• Very Small DFN 2×2.2 Package
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAP Capable
• These are Pb-Free Devices
