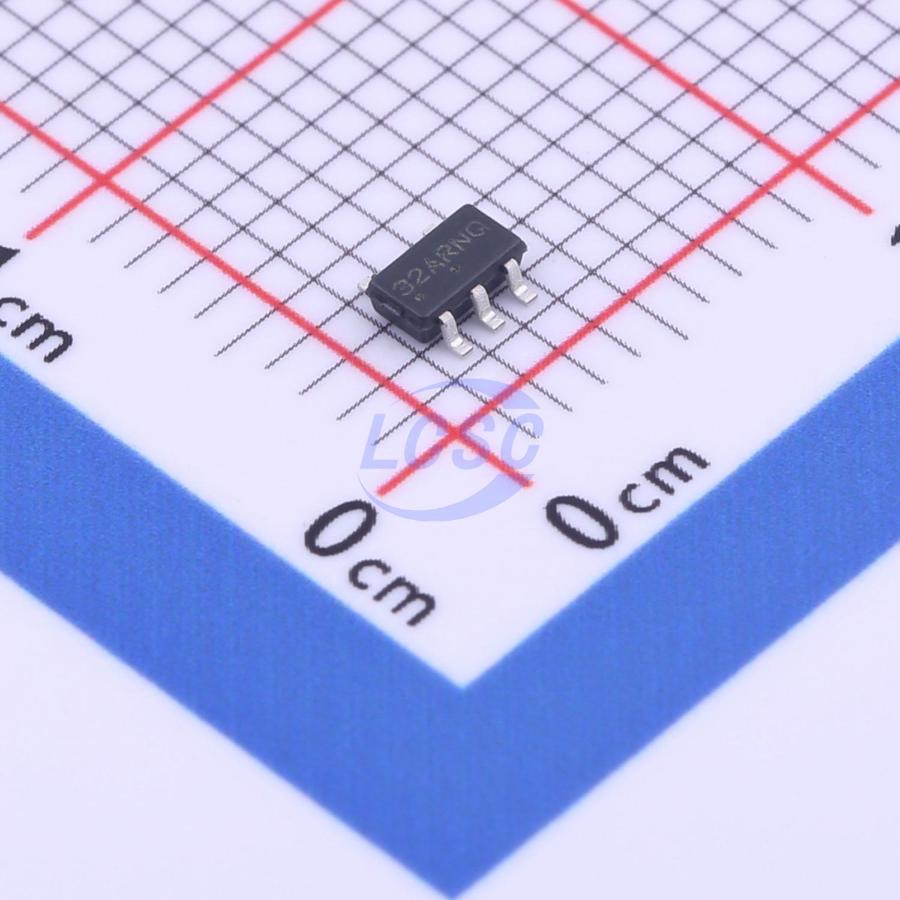

NCS325SN2T1G
5mA 1 14uV 0.16V/us 110dB 50pA 21uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output TSOP-5 Instrumentation, Op Amps, Buffer Amps RoHS
TSOP-5ROHS3 CompliantActive
Zero-Drift Operational Amplifier
- Manufacturer
- onsemi
- Manufacturer part #
- NCS325SN2T1G
- Store part #
- C892885
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C892885
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹58.83 | ₹294.15 |
| 50+ | ₹45.41 | ₹2,270.50 |
| 150+ | ₹39.64 | ₹5,946.00 |
| 500+ | ₹24.21 | ₹12,105.00 |
| 3,000+ | ₹21.02 | ₹63,060.00 |
| 6,000+ | ₹19.09 | ₹1,14,540.00 |
5 × ₹58.83
₹294.15
excl. GST
₹347.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCS325SN2T1G
₹294.15 for 5 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 14uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 250nV/℃
- Quiescent Current
- 21uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression
- Input Voltage Noise Density
- 100nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The NCS325, NCS2325 and NCS4325 are CMOS operational amplifiers providing precision performance. The Zero−Drift architecture allows for continuous auto−calibration, which provides very low offset, near−zero drift over time and temperature, and near flat 1/f noise at only 35 μA (max) quiescent current. These benefits make these devices ideal for precision DC applications. These op amps provide rail−to−rail input and output performance and are optimized for low voltage operation as low as 1.8 V and up to 5.5 V. The single channel NCS325 is available in the space−saving SOT23−5 package. The dual channel NCS2325 is available in Micro8, SOIC−8, and DFN−8. The quad channel NCS4325 is available in SOIC−14.
Applications
- Battery Powered Instruments
- Temperature Measurements
- Transducer Applications
- Electronic Scales
- Medical Instrumentation
- Current Sensing
Key features
- Low Offset Voltage: 14 μV typ, 50 μV max at 25°C for NCS325
- Zero Drift: 0.25 μV/°C max
- Low Noise: 1 μVpp, 0.1 Hz to 10 Hz
- Quiescent Current: 21 μA typ, 35 μA max at 25°C
- Supply Voltage: 1.8 V to 5.5 V
- Rail−to−Rail Input and Output
- Internal EMI Filtering
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA330AIDBVR#C38649TI · SOT-23-5 | TI | SOT-23-5 | 1,444 | ₹132.05 · 1,444 in stock | View |
 | TP5531U-TR#C424333043PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | 1,980 | ₹127.62 · 1,980 in stock | View |
 | SGM8061XN5(TOKMAS)#C51889368Tokmas · SOT23-5 | Tokmas | SOT23-5 | 2,981 | ₹48.38 · 2,981 in stock | View |
 | HT8603ARTZ#C5241939HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 192 | ₹166.96 · 192 in stock | View |
 | LTC8331XT5/R6#C2888134Linearin · SOT-23-5L | Linearin | SOT-23-5L | 1,608 | ₹57.74 · 1,608 in stock | View |
