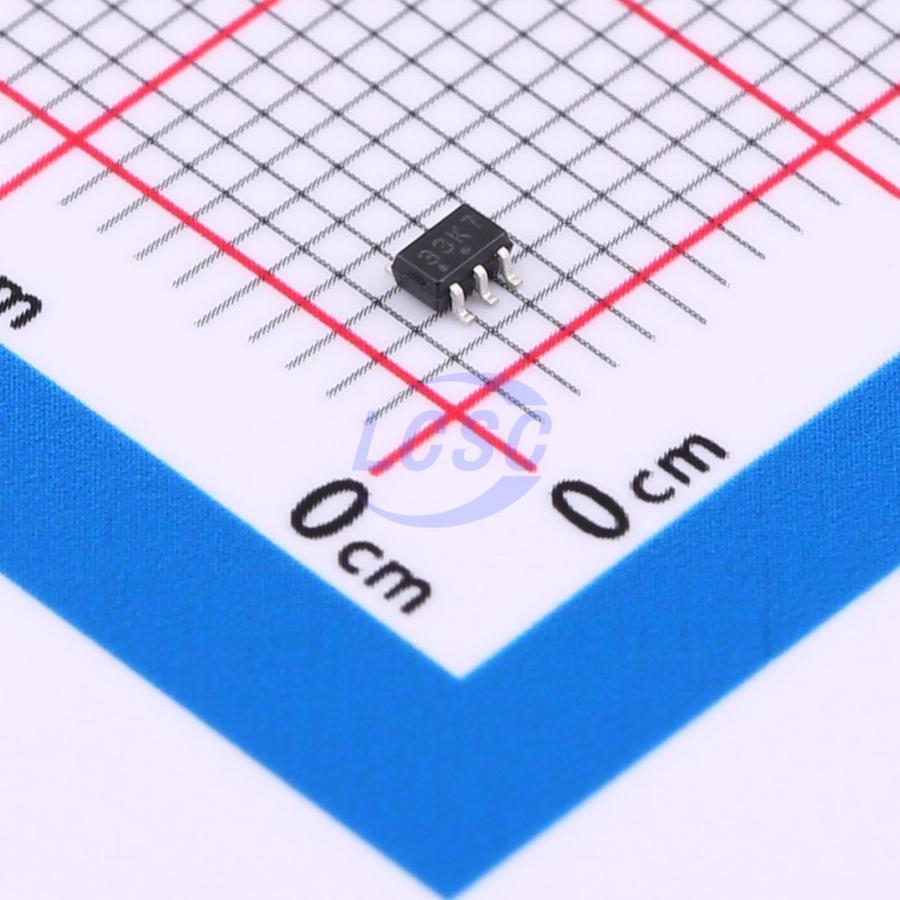

NCS333ASQ3T2G
5mA 1 3.5uV 0.15V/us 123dB 60pA 21uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-5ROHS3 CompliantActive
Zero-Drift Operational Amplifier
- Manufacturer
- onsemi
- Manufacturer part #
- NCS333ASQ3T2G
- Store part #
- C603848
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,474 in stock
#C603848
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.19 | ₹73.19 |
| 10+ | ₹58.85 | ₹588.50 |
| 30+ | ₹51.46 | ₹1,543.80 |
| 100+ | ₹44.52 | ₹4,452.00 |
| 500+ | ₹37.78 | ₹18,890.00 |
| 1,000+ | ₹35.40 | ₹35,400.00 |
1 × ₹73.19
₹73.19
excl. GST
₹86.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCS333ASQ3T2G
₹73.19 for 1 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 3.5uV
- Slew Rate
- 0.15V/us
- Input Offset Current(Ios)
- 50pA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 123dB
- Ib - Input Bias Current
- 60pA
- Input Offset Voltage Drift(Vos TC)
- 70nV/℃
- Quiescent Current
- 21uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 62nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.061 g
Overview
The NCS333/2333/4333 family of zero−drift op amps feature offset voltage as low as 10 μV over the 1.8 V to 5.5 V supply voltage range. The zero−drift architecture reduces the offset drift to as low as 0.07 μV/°C and enables high precision measurements over both time and temperature. This family has low power consumption over a wide dynamic range and is available in space saving packages. These features make it well suited for signal conditioning circuits in portable, industrial, automotive, medical and consumer markets.
Applications
- Automotive
- Battery Powered/ Portable Application
- Sensor Signal Conditioning
- Low Voltage Current Sensing
- Filter Circuits
- Bridge Circuits
- Medical Instrumentation
Key features
- Gain−Bandwidth Product:
- 270 kHz (NCx2333)
- 350 kHz (NCx333, NCx333A, NCx4333)
- Low Supply Current: 17 μA (typ at 3.3 V)
- Low Offset Voltage:
- 10 μV max for NCS333, NCS333A
- 30 μV max for NCV333A, NCx2333 and NCx4333
- Low Offset Drift: 0.07 μV/°C max for NCS333/A
- Wide Supply Range: 1.8 V to 5.5 V
- Wide Temperature Range: -40°C to +125°C
- Rail−to−Rail Input and Output
- Available in Single, Dual and Quad Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV333ASQ3T2G#C892946onsemi · SC-88-5 | onsemi | SC-88-5 | 20 | ₹137.16 · 20 in stock | View |
 | NCV21871SQ3T2G#C892906onsemi · SC-88-5 | onsemi | SC-88-5 | 3 | ₹109.02 · 3 in stock | View |
| OPA330AIDCKT#C2866007TI · SC-70-5 | TI | SC-70-5 | 44 | ₹228.98 · 44 in stock | View | |
 | OPA330AIDCKR#C473401TI · SC-70-5 | TI | SC-70-5 | 1,797 | ₹176.04 · 1,797 in stock | View |
 | TLV333IDCKR#C181502TI · SC-70-5 | TI | SC-70-5 | 18,290 | ₹42.04 · 18,290 in stock | View |
