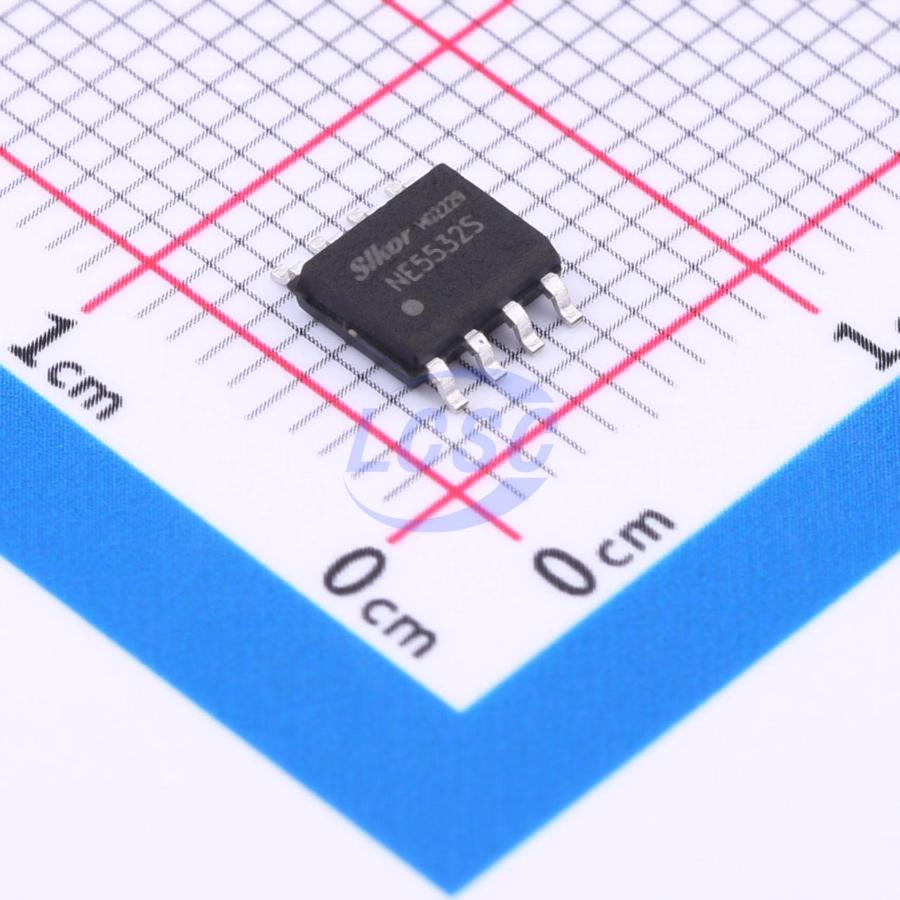

Slkor

NE5532S

Standard (General Purpose) Amplifier 2 Circuit SOP-8

SOP-8RoHSActive

Dual Operational Amplifier

Manufacturer: Slkor
Manufacturer part #: NE5532S
Store part #: C5186033
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,340 in stock

#C5186033

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.12	₹75.60
50+	₹12.11	₹605.50
150+	₹10.60	₹1,590.00
500+	₹9.46	₹4,730.00
2,500+	₹8.18	₹20,450.00
5,000+	₹7.73	₹38,650.00

Quantity (min 5, multiples of 5)

5 × ₹15.12

₹75.60

excl. GST

₹89.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

NE5532S

₹75.60 for 5 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 5mV
Slew Rate: 11V/us
Input Offset Current(Ios): 5nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 500nA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation
Input Voltage Noise Density: 8nV/√Hz@1kHz
Dual Supply: -22V~22V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.19 g

Overview

The NE5532 contains two independent, internally frequency-compensated low-noise dual op-amps. It features a high slew rate and low output noise, making it suitable for high-fidelity audio equipment, instrumentation, and control systems. The NE5532 is available in DIP8 or SOP8 packages.

Applications

High-quality audio equipment
Instrumentation and control systems

Key features

Internal frequency compensation
High DC voltage gain (typ. 100dB)
High slew rate (10V/μs typ.)
Input noise voltage (8nV/√Hz f0=1kHz)
