onsemiDatasheet (PDF)
NL17SZ08DFT2G
1uA 1.65V~5.5V 4.5ns@5V,50pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive

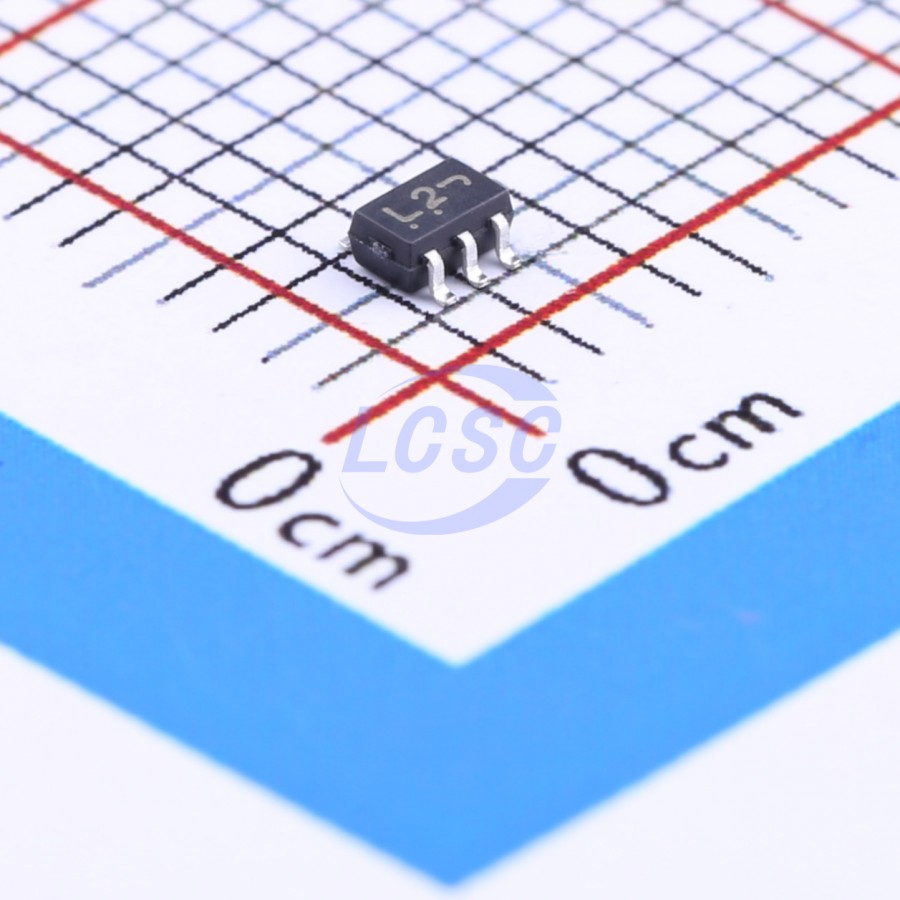

Single 2-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ08DFT2G
- Store part #
- C150234
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,400 in stock
#C150234
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.51 | ₹65.10 |
| 100+ | ₹5.40 | ₹540.00 |
| 300+ | ₹4.84 | ₹1,452.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹6.51
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ08DFT2G
₹65.10 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 17SZ Series
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 4.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NL17SZ08 is a single 2−input AND Gate in three tiny footprint packages. The device performs much as LCX multi−gate products in speed and drive. They should be used wherever the need for higher speed and drive are needed.
Key features
- Tiny SOT−353, SOT−553 and SOT−953 Packages
- 2.7 ns TPD at 5.0 V (typ)
- Source/Sink 24 mA at 3.0 V
- Overvoltage Tolerant Inputs
- Pin For Pin with NC7SZ08P5X, TC7SZ08FU and TC7SZ08AFE
- Chip Complexity: FETs = 20
- Designed for 1.65 V to 5.5 V VCC Operation
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NL17SZ08DFT2G-F22038#C5207835onsemi · SOT-353 | onsemi | SOT-353 | 16,205 | ₹9.30 · 16,205 in stock | View |
 | 74LVC1G08GW,125#C12512Nexperia · SOT-353 | Nexperia | SOT-353 | 62,110 | ₹8.72 · 62,110 in stock | View |
 | SN74LVC1G08DCKT#C2870856TI · SC-70-5 | TI | SC-70-5 | 110 | ₹5.36 · 110 in stock | View |
 | NC7SZ08P5X#C128377onsemi · SC-70-5 | onsemi | SC-70-5 | 1,530 | ₹7.16 · 1,530 in stock | View |
 | 74LVC1G08GW#C52140431MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 10,661 | ₹7.62 · 10,661 in stock | View |
