onsemiDatasheet (PDF)

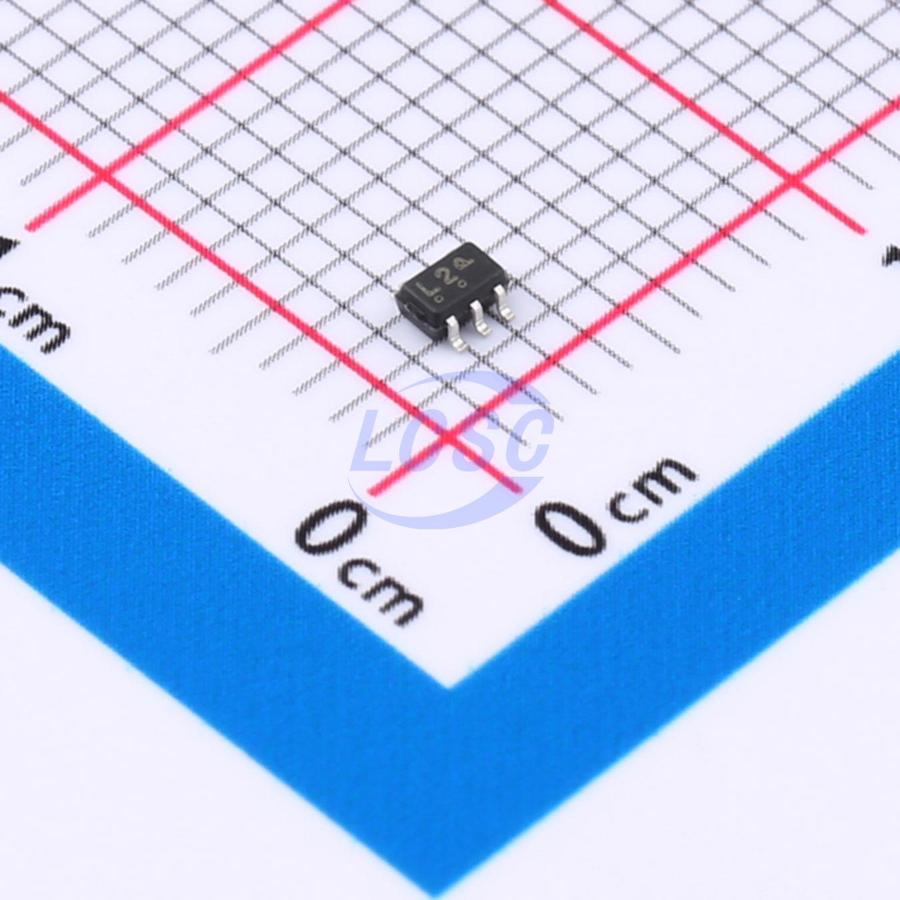

NL17SZ08DFT2G-F22038
1.65V~5.5V 4.5ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
Single 2-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ08DFT2G-F22038
- Store part #
- C5207835
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,205 in stock
#C5207835
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.30 | ₹46.50 |
| 50+ | ₹8.32 | ₹416.00 |
| 150+ | ₹7.82 | ₹1,173.00 |
| 500+ | ₹7.45 | ₹3,725.00 |
| 3,000+ | ₹6.51 | ₹19,530.00 |
| 6,000+ | ₹6.36 | ₹38,160.00 |
5 × ₹9.30
₹46.50
excl. GST
₹54.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ08DFT2G-F22038
₹46.50 for 5 + GST
Specifications
- Logic Family
- 17SZ Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;80mV~240mV;200mV~300mV;220mV~400mV;280mV~400mV;380mV~550mV;420mV~550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.29V;1.9V;2.2V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The NL17SZ08 is a single 2−input AND Gate in tiny footprint packages.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.7 ns tPD at VCC = 5 V (typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.0 V
- Available in SC−88A, SC−74A, SOT−553, SOT−953 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NL17SZ08DFT2G#C150234onsemi · SOT-353 | onsemi | SOT-353 | 26,400 | ₹6.51 · 26,400 in stock | View |
 | 74LVC1G08GW,125#C12512Nexperia · SOT-353 | Nexperia | SOT-353 | 62,110 | ₹8.72 · 62,110 in stock | View |
 | SN74LVC1G08DCKT#C2870856TI · SC-70-5 | TI | SC-70-5 | 110 | ₹5.36 · 110 in stock | View |
 | NC7SZ08P5X#C128377onsemi · SC-70-5 | onsemi | SC-70-5 | 1,530 | ₹7.16 · 1,530 in stock | View |
 | 74LVC1G08GW#C52140431MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 10,661 | ₹7.62 · 10,661 in stock | View |
