onsemiDatasheet (PDF)

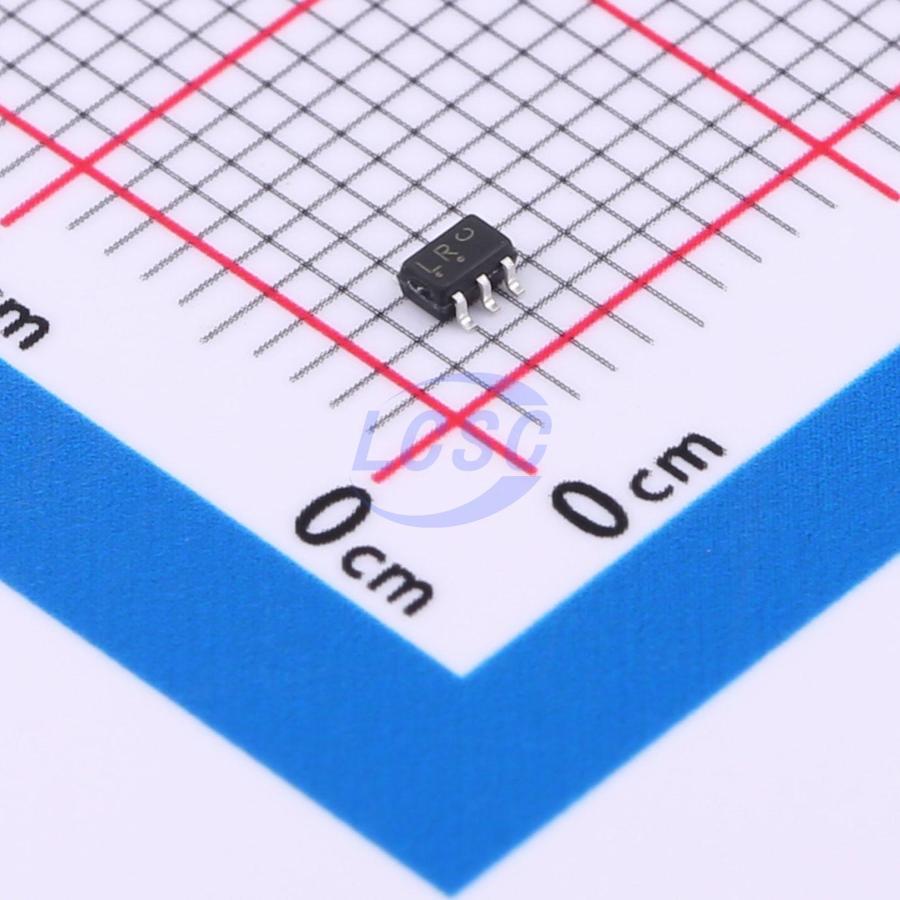

NL17SZ16DFT2G
Buffer 1 Element 1 Bit per Element SOT-353
SOT-353ROHS3 CompliantActive
Single Input Buffer
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ16DFT2G
- Store part #
- C464080
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,205 in stock
#C464080
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.46 | ₹57.30 |
| 50+ | ₹9.16 | ₹458.00 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.14 | ₹3,570.00 |
| 3,000+ | ₹6.46 | ₹19,380.00 |
| 6,000+ | ₹6.11 | ₹36,660.00 |
5 × ₹11.46
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ16DFT2G
₹57.30 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- 17SZ
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -55℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.4ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.4 ns tPD at VCC = 5 V (typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.0 V
- Available in SC−88A, SC−74A, SOT−553, SOT−953 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NLV17SZ125DFT2G#C893571onsemi · SOT-353 | onsemi | SOT-353 | 5 | ₹32.94 · 5 in stock | View |
 | NL17SZ126DFT2G#C97775onsemi · SC-70-5 | onsemi | SC-70-5 | 3,620 | ₹8.11 · 3,620 in stock | View |
 | 74LVC1G125SE-7#C151022DIODES · SOT-353 | DIODES | SOT-353 | 1,930 | ₹9.22 · 1,930 in stock | View |
 | NL17SZ125DFT2G#C97774onsemi · SOT-353 | onsemi | SOT-353 | 11,490 | ₹6.55 · 11,490 in stock | View |
 | 74LVC1G126SE-7#C460528DIODES · SOT-353 | DIODES | SOT-353 | 2,000 | ₹9.34 · 2,000 in stock | View |
