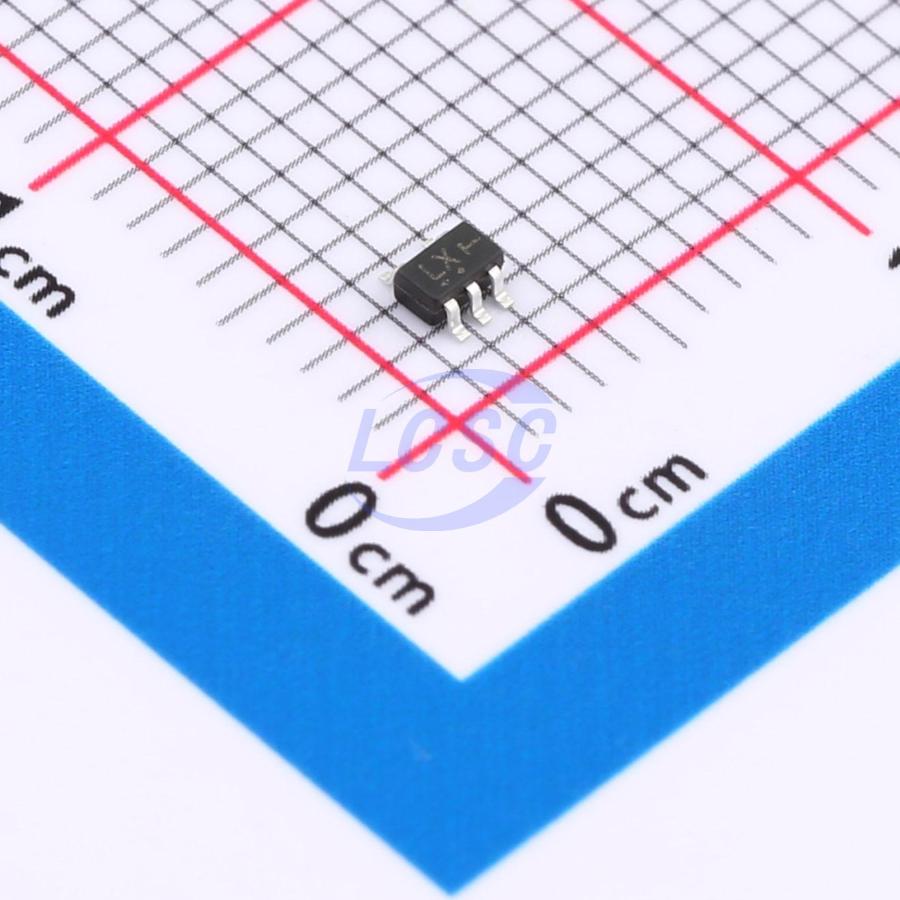

NL17SZ17DFT2G-TP
Schmitt trigger 1.65V~5.5V 1 1 10ns@3.3V,15pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
SINGLE SCHMITT-TRIGGER BUFFER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL17SZ17DFT2G-TP
- Store part #
- C42460263
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C42460263
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.39 | ₹63.90 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 1,000+ | ₹3.89 | ₹3,890.00 |
| 5,000+ | ₹3.48 | ₹17,400.00 |
| 10,000+ | ₹3.28 | ₹32,800.00 |
10 × ₹6.39
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ17DFT2G-TP
₹63.90 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 10ns@3.3V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The NL17SZ17DFT2G-TP is a single Schmitt-trigger buffer, it provides the function Y = A. The device have different input threshold levels for positive going (VT+) and negative-going (VT-) signals because of the Schmitt-trigger action in the input. This device has power-down protective circuit.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Operation Voltage Range: 1.65V~5.5V
- Power Down Protection ±24mA Output Drive (VCC = 3.0V)
- Low Power Consumption, 10μA Max ICC
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 200-V Machine Model (A115-A) - 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G07SE-TP#C52098135TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 530 | ₹5.91 · 530 in stock | View |
 | TP74LVC1G07C5#C42460132TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,300 | ₹7.44 · 2,300 in stock | View |
 | NL17SZ07DFT2G-TP#C42460257TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,780 | ₹6.39 · 2,780 in stock | View |
 | 74LVC1G17SE-TP#C52098132TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,090 | ₹5.85 · 3,090 in stock | View |
 | TC7SZ17FU-TP#C54195044TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
