TECH PUBLICDatasheet (PDF)

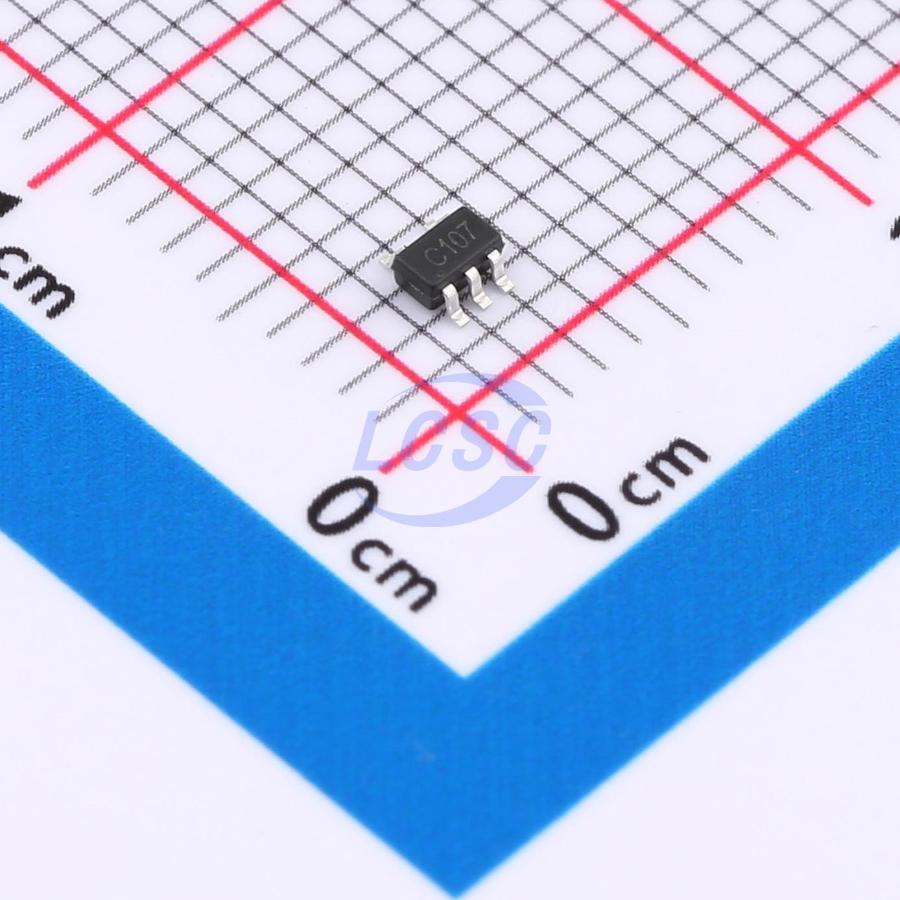

TP74LVC1G07C5
1.65V~5.5V 1 1 8ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G07C5
- Store part #
- C42460132
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C42460132
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.16 | ₹1,548.00 |
| 1,000+ | ₹4.59 | ₹4,590.00 |
| 5,000+ | ₹4.13 | ₹20,650.00 |
| 10,000+ | ₹3.90 | ₹39,000.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G07C5
₹74.40 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 10uA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 8ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The TP74LVC1G07 is a single Buffer/Driver with open-drain output. This device has power -down protective circuit, preventing device destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Supports 5-V VCC Operation
- Supports Partial-Power-Down Mode Operation
- ±24-mA Output Drive at 3.3 V
- Low Power Consumption, 10 μA Max ICC
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
