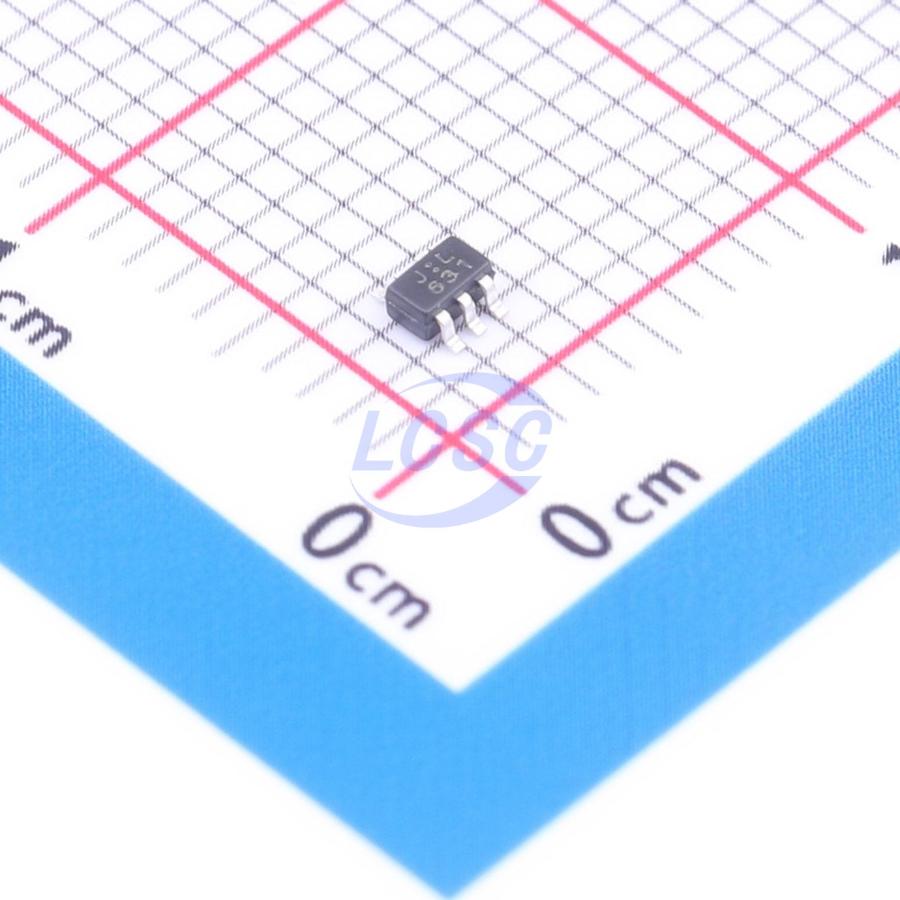

TC7SZ17FU-TP

The TC7SZ17 is a single Schmitt-trigger buffer. The device is designed for a Vcc operating voltage range of 1.65 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as level translators in mixed 3.3 V and 5 V environments. The TC7SZ17 contains one buffer that performs the Boolean function Y = A. This CMOS device provides high output drive capability while maintaining low quiescent power consumption over a wide Vcc operating range. The TC7SZ17 is available in SOT23-5 and SOT353 packages.

Applications

• Active Noise Cancellation (ANC)
• Blood Pressure Monitor
• Embedded PC
• SSD: Client and Enterprise
• TV: LCD/Digital and HDTV
• Tablet: Enterprise
• Video Analytics: Server
• Wireless Headset, Keyboard and Mouse
• Power Supply: Telecom/Server AC/DC Controller

Key features

• Wide supply voltage range: 1.65 V to 5.5 V
• Maximum propagation delay of 6.5 ns at Vcc = 3.3 V
• Low power consumption, 10 μA (Icc maximum)
• ±24 mA output drive capability at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• 2000 V Human Body Model (A114-A)
• 1000 V Charged Device Model (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
