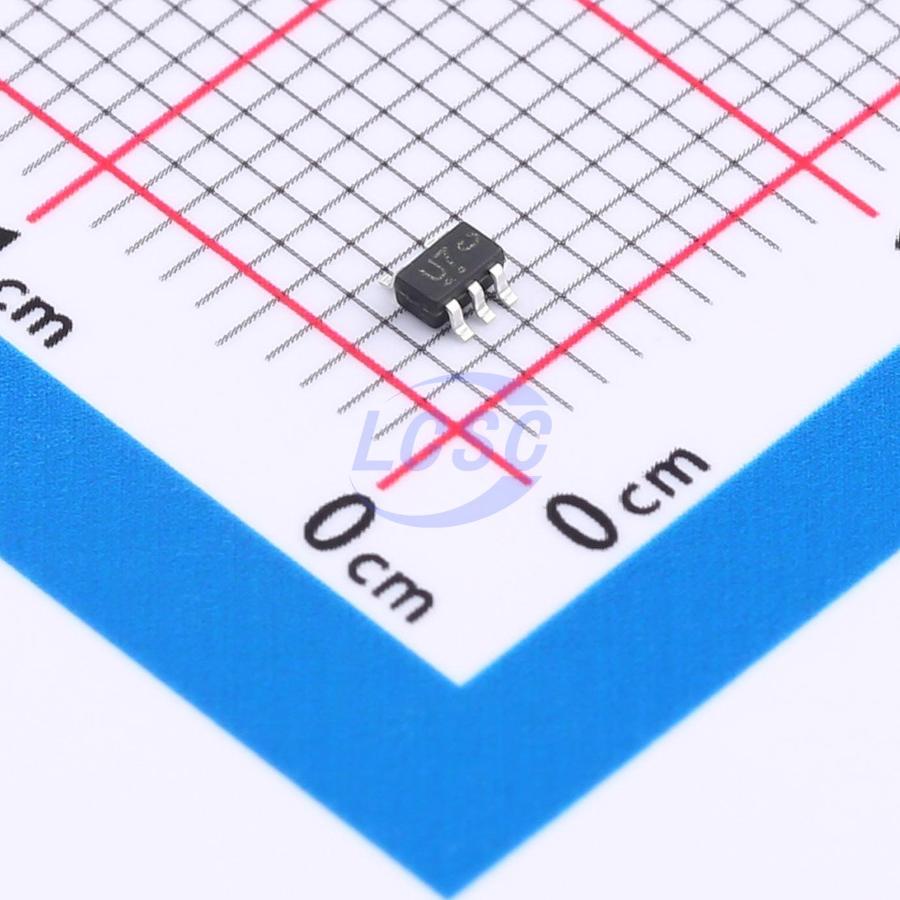

NL17SZ240DFT2G-TP
1.65V~5.5V 1 1 4ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
SINGLE BUFFER/DRIVER WITH 3-STATE OUTPUT
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL17SZ240DFT2G-TP
- Store part #
- C42460258
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C42460258
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.65 | ₹53.25 |
| 50+ | ₹8.41 | ₹420.50 |
| 150+ | ₹7.30 | ₹1,095.00 |
| 500+ | ₹6.47 | ₹3,235.00 |
| 2,500+ | ₹5.79 | ₹14,475.00 |
| 5,000+ | ₹5.46 | ₹27,300.00 |
5 × ₹10.65
₹53.25
excl. GST
₹62.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ240DFT2G-TP
₹53.25 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The is a single line driver with a 3-state output. The output is disabled when the output-enable ( OE ) input is high. To ensure the highimpedance state during power up or power down, OE (overline) should be tied to VCC through a pullup resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- Inputs Accept Voltages to 5.5V
- loFF supports partial-power-down mode
- Low static power consumption; 1CC = 10μA (Max.)
- ESD Protection Exceeds JESD 22
- -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
