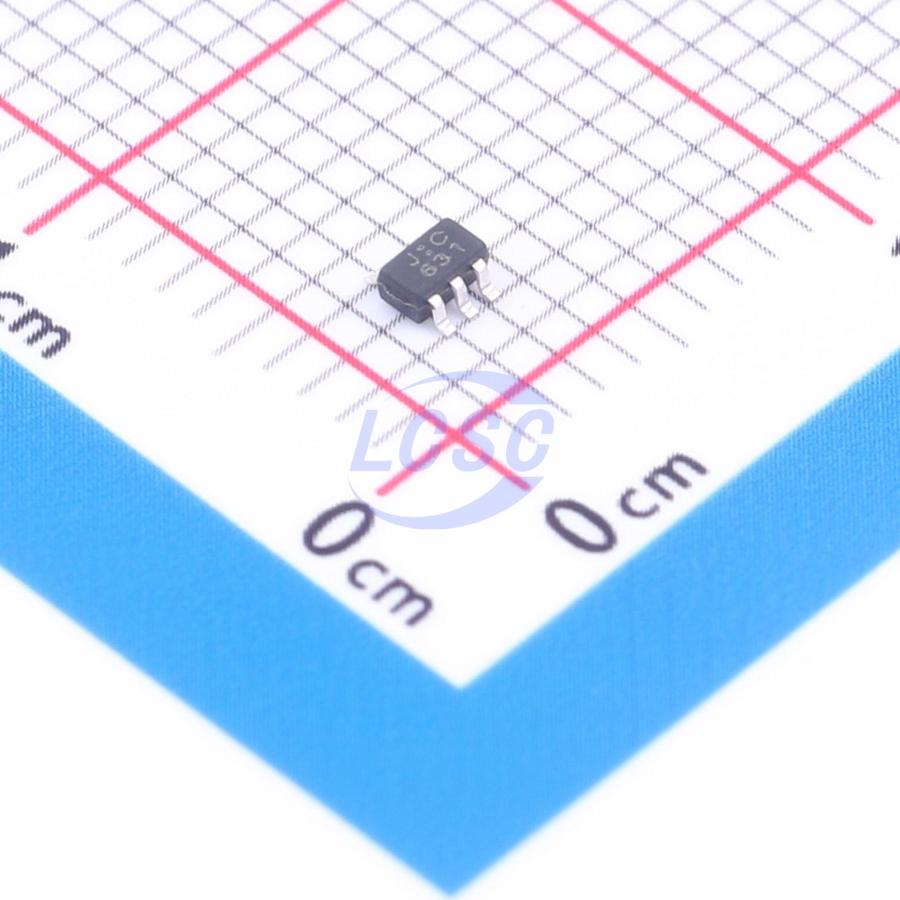

TC7SZ126FU-TP

TC7SZ126 is a single bus buffer gate. The device is designed for 1.65 V to 5.5 V Vcc operating voltage and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SZ126 is a single line driver with tri-state outputs. When the output enable input is low, the output is disabled. The TC7SZ126 is available in SOT23-5 and SOT353 packages.

Applications

• Cable Modem Termination Systems
• High-Speed Data Acquisition and Generation
• Motor Control: High Voltage
• Power Line Communication Modems
• SSD: Internal or External
• Video Broadcasting and Infrastructure: Scalable Platforms
• Video Broadcasting: IP-Based Multi-Format Transcoders
• Video Communication Systems

Key features

• Wide supply voltage range: 1.65 V to 5.5 V
• Maximum propagation delay TpD of 4.5 ns at Vcc = 3.3 V
• Low power consumption, maximum supply current Icc of 10 μA
• Output drive current of ±24 mA at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• HBM ESD 2000 V (A114-A)
• CDM ESD 1000 V (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
