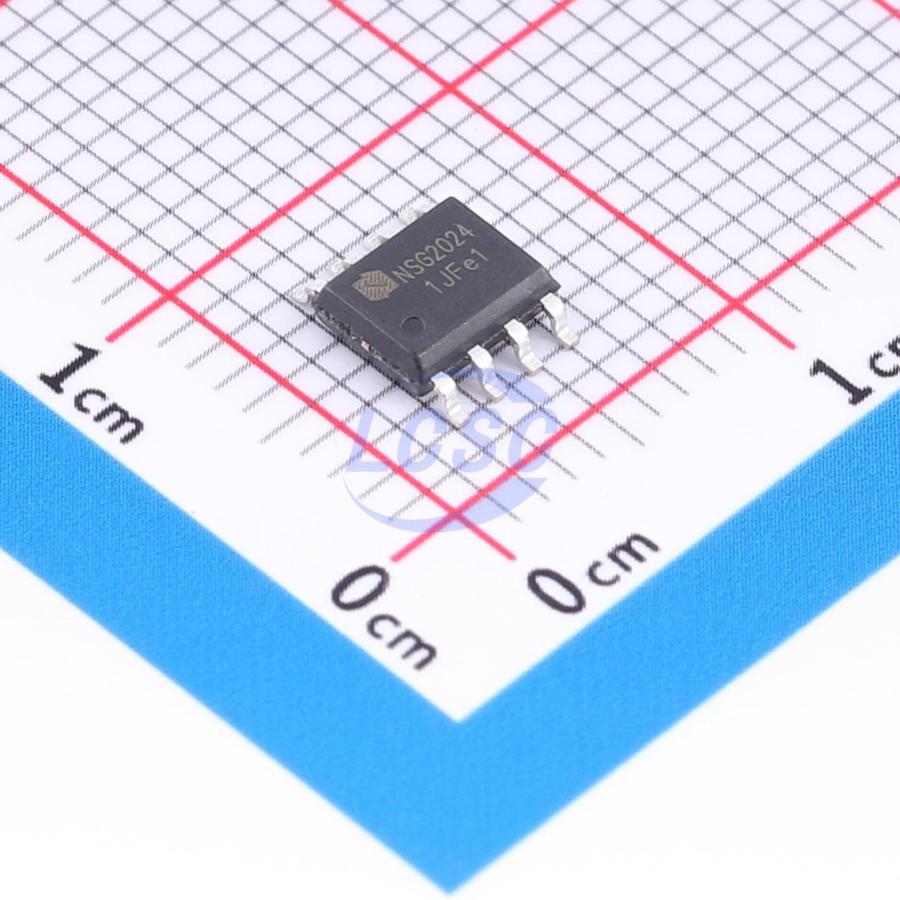

NSG2024

The NSG2024 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC featuring independent high-side and low-side referenced output channels. Utilizing a high-voltage/low-voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip. Logic inputs are compatible with CMOS or LSTTL logic output levels as low as 3.3V, and the outputs feature high-current pulse capability with shoot-through prevention dead-time logic. An integrated bootstrap diode simplifies the external circuitry by charging the high-side supply. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage up to 250V. Available in SOP8 package, operating over a temperature range of -40℃ to 125℃.

Applications

• Motor Control
• Air Conditioner / Washing Machine
• General-Purpose Inverter
• Micro Inverter Drive

Key features

• Bootstrap floating high-side channel
• Maximum operating voltage +250V
• Compatible with 3.3V, 5V, and 15V input logic
• dVS/dt immunity up to ±50V/ns
• VS negative bias capability down to -9V
• Gate drive voltage range 10V to 20V
• Anti-shoot-through dead-time logic
• Dead time 250ns
• Propagation delay characteristics: turn-on/turn-off delay Ton/Toff = 150ns/150ns, delay matching 50ns
• Wide temperature range -40°C ~ 125°C
• Output stage source/sink current capability 4A/4A
• Integrated bootstrap diode
• RoHS-compliant SOP8 (S)
