HTCSEMIDatasheet (PDF)

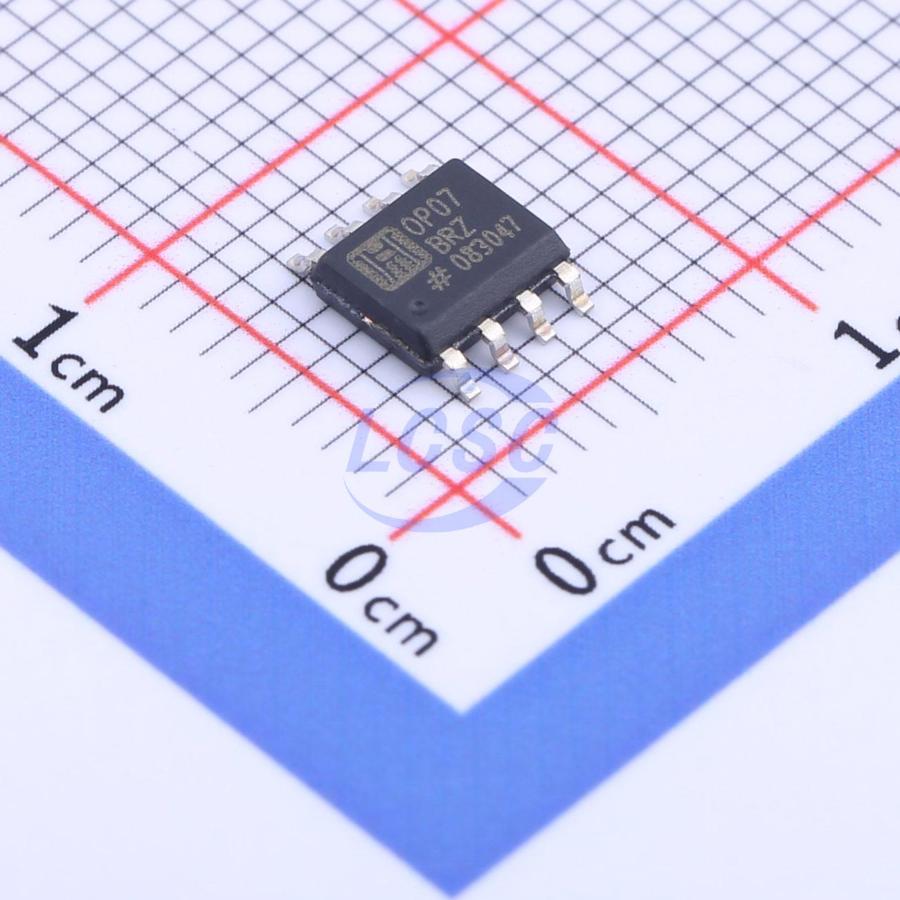

OP07BRZ
1 75uV 170V/ms 1.8nA 120dB 2.7mA 500kHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Very low offset single bipolar operational amplifier
- Manufacturer
- HTCSEMI
- Manufacturer part #
- OP07BRZ
- Store part #
- C2886400
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C2886400
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.30 | ₹191.50 |
| 50+ | ₹30.65 | ₹1,532.50 |
| 150+ | ₹27.39 | ₹4,108.50 |
| 500+ | ₹23.28 | ₹11,640.00 |
| 2,500+ | ₹18.79 | ₹46,975.00 |
| 5,000+ | ₹17.69 | ₹88,450.00 |
5 × ₹38.30
₹191.50
excl. GST
₹225.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OP07BRZ
₹191.50 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 75uV
- Slew Rate
- 170V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+105℃
- Ib - Input Bias Current
- 1.8nA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 2.7mA
- Gain Bandwidth Product
- 500kHz
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Dual Supply
- -3V~22V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
The OP07B is a very high precision op-amp with an offset voltage maximum of 75μv. Offering also low input current (1.8nA) and high gain (400V/mV), the OP07B is particularly suitable for instrumentation applications.
Key features
- Extremely low offset: 75μV max.
- Low input bias current: 1.8nA
- LOW Vi0 drift: 0.25μV/°C
- Ultra stable with time: 2μV/month max.
- Wide supply voltage range: ±3V to ±22V
- Temperature range: 0°C to -105°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT07ARZ#C2834444HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 55 | ₹23.92 · 55 in stock | View |
 | OP07CRZ#C2886401HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 1,955 | ₹20.78 · 1,955 in stock | View |
 | HT5534ARZ#C2928794HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 1,200 | ₹36.05 · 1,200 in stock | View |
 | HT7650ARZ#C7431199HTCSEMI · SOP8 | HTCSEMI | SOP8 | 250 | ₹179.89 · 250 in stock | View |
 | HT2171ARZ#C2917523HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 1,420 | ₹39.49 · 1,420 in stock | View |
