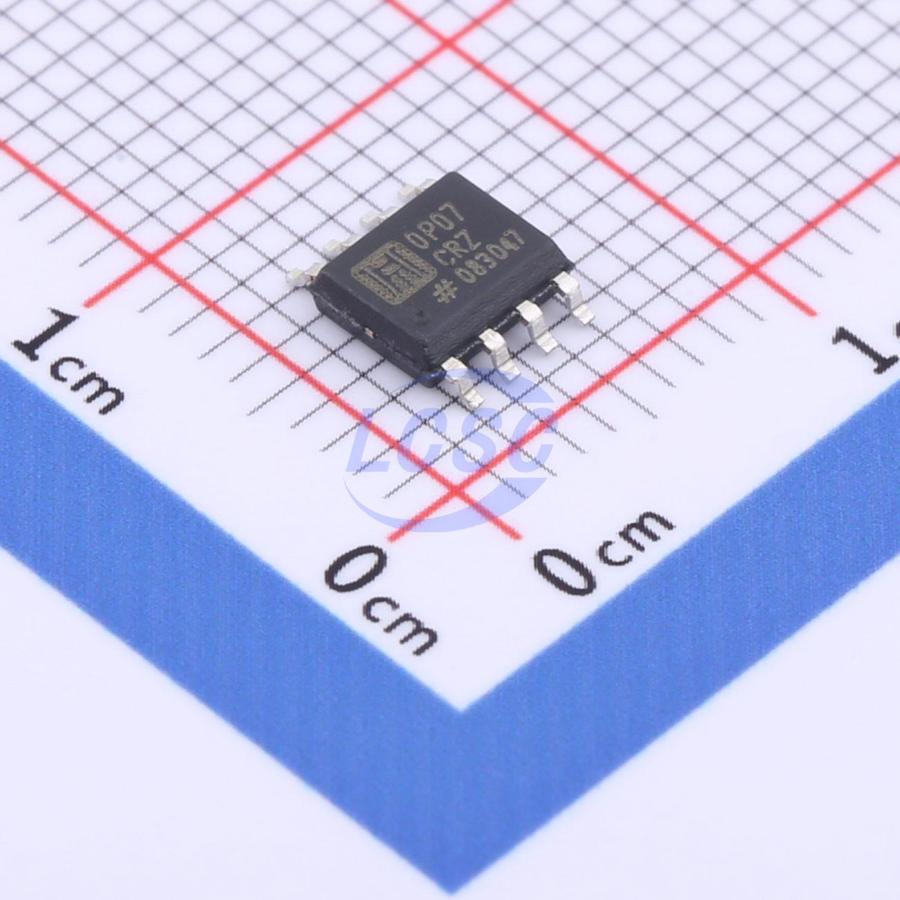

OP07CRZ
1 150uV 170V/ms 1.8nA 120dB 2.7mA 500kHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Very low offset single bipolar operational amplifier
- Manufacturer
- HTCSEMI
- Manufacturer part #
- OP07CRZ
- Store part #
- C2886401
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C2886401
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.78 | ₹103.90 |
| 50+ | ₹16.39 | ₹819.50 |
| 150+ | ₹14.50 | ₹2,175.00 |
| 500+ | ₹12.16 | ₹6,080.00 |
| 2,500+ | ₹11.11 | ₹27,775.00 |
| 5,000+ | ₹10.48 | ₹52,400.00 |
5 × ₹20.78
₹103.90
excl. GST
₹122.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OP07CRZ
₹103.90 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 170V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+105℃
- Ib - Input Bias Current
- 1.8nA
- Common Mode Rejection Ratio(CMRR)
- 120dB
- Input Offset Voltage Drift(Vos TC)
- 1.8uV/℃
- Quiescent Current
- 2.7mA
- Gain Bandwidth Product
- 500kHz
- Input Voltage Noise Density
- 20nV/√Hz@10Hz
- Dual Supply
- 3V~22V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.244 g
Overview
The OP07C is a very high precision op-amp with an offset voltage maximum of 150μV. Offering also low input current (1.8nA) and high gain (400V/mV), the OP07C is particularly suitable for instrumentation applications.
Key features
- Extremely low offset: 150μν/ max.
- Low input bias current: 1.8nA
- LOW Vi0 drift: 0.25μV/°C
- Ultra stable with time: 2μV/ month max.
- Wide supply voltage range: ±3V to ±22V
- Temperature range: -40°C to -105°C
