HGSEMI

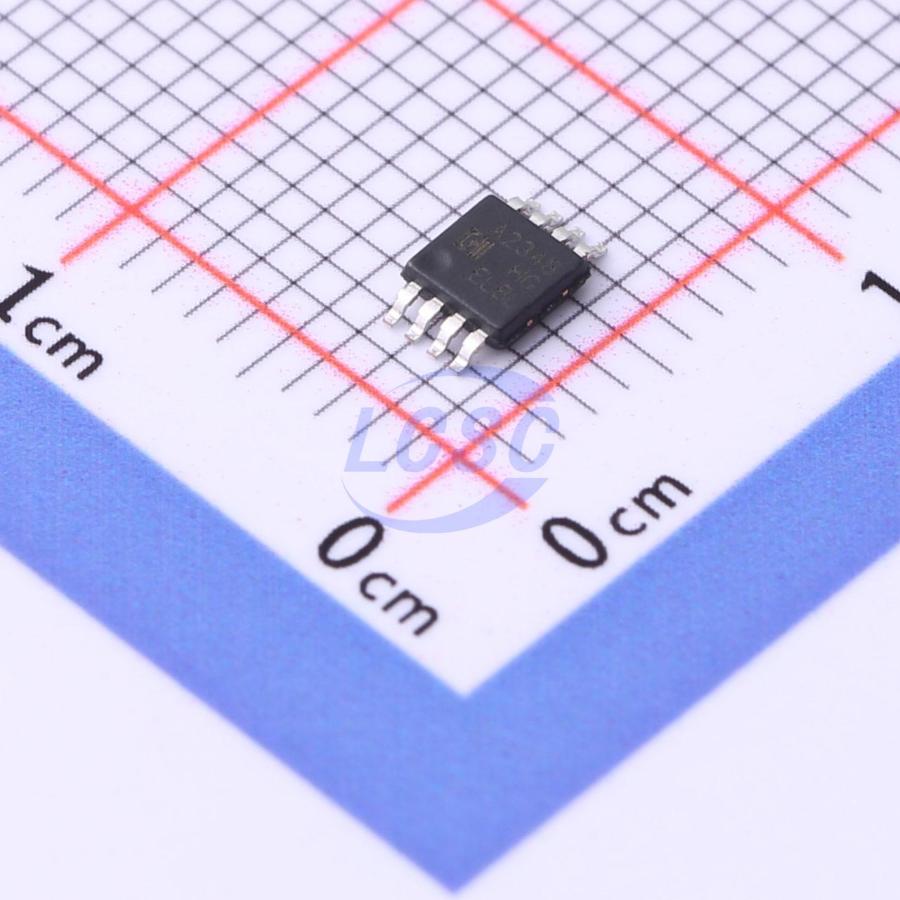

OPA2348MM/TR

Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output MSOP-8

MSOP-8RoHSActive

1MHz,45uA,CMOS,Rail-to-Rail OPERATIONAL AMPLIFIERS

Manufacturer: HGSEMI
Manufacturer part #: OPA2348MM/TR
Store part #: C3726302
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,085 in stock

#C3726302

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹25.20	₹126.00
50+	₹22.25	₹1,112.50
150+	₹21.00	₹3,150.00
500+	₹19.42	₹9,710.00
3,000+	₹16.78	₹50,340.00
6,000+	₹16.35	₹98,100.00

Quantity (min 5, multiples of 5)

5 × ₹25.20

₹126.00

excl. GST

₹148.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2348MM/TR

₹126.00 for 5 + GST

Specifications

Output Current: 10mA
Number of Channels: 2
Vos - Input Offset Voltage: 6mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.5pA
Common Mode Rejection Ratio(CMRR): 94dB
Input Offset Voltage Drift(Vos TC): 175uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.19 g

Overview

The OPA348 series amplifiers are single-supply, low-power, CMOS op amps in miniature packages. This series features 1MHz extended bandwidth and 45μA supply current, suitable for low-power applications with 2.1V to 5.5V single supply. The 45μA low supply current and 0.5pA input bias current make the OPA348 series ideal for low-power, high-impedance applications such as smoke detectors and other sensors. The OPA348 is available in miniature SC70-5, SOT23-5, and SOP-8 packages. The OPA2348 is available in MSOP-8 and SOP-8 packages, while the OPA4348 is offered in space-saving TSSOP-14 and SOP-14 packages. The extended operating temperature range of -40°C to +125°C across all supply voltages provides additional design flexibility.

Applications

Portable devices
Battery-powered devices
Smoke alarms
Carbon monoxide detectors
Medical instruments

Key features

Low quiescent current: 45μA typical
Low cost
Rail-to-rail input and output
Single supply: +2.1V to +5.5V
Input bias current: 0.5pA
High speed-to-power ratio bandwidth: 1MHz
Small packages: OPA348 available in SOT23-5, SC70-5, and SOP-8; OPA2348 available in MSOP-8 and SOP-8; OPA4348 available in SOP-14 and TSSOP-14
