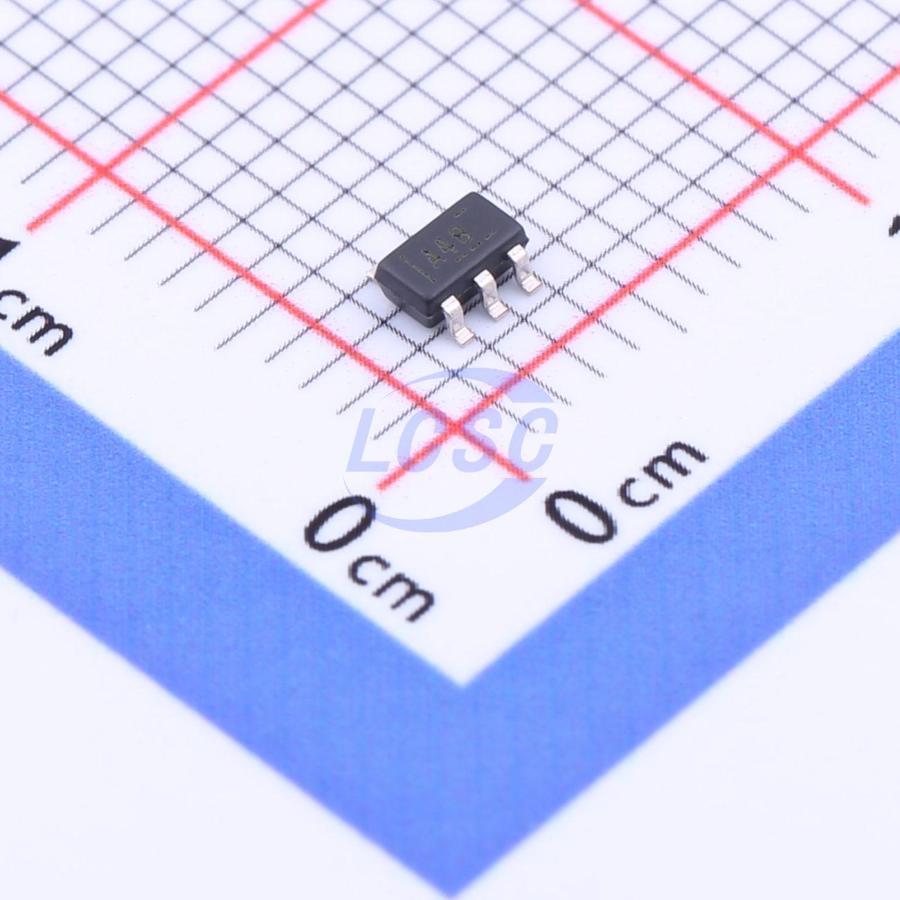

OPA348AQDBVRQ1

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS3 CompliantActive

1-MHz 45-μA CMOS Rail-to-Rail Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA348AQDBVRQ1
Store part #: C2877787
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,902 in stock

#C2877787

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹71.38	₹71.38
10+	₹56.15	₹561.50
30+	₹49.61	₹1,488.30
100+	₹41.34	₹4,134.00
500+	₹37.65	₹18,825.00
1,000+	₹35.47	₹35,470.00

Quantity (min 1)

1 × ₹71.38

₹71.38

excl. GST

₹84.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA348AQDBVRQ1

₹71.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 500V/ms
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 0.5pA
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

The OPAx348-Q1 series are single-supply, low-power CMOS op amps. The OPAx348 series features 1MHz extended bandwidth and 45μA supply current, making them suitable for low-power applications with 2.1V to 5.5V single-supply operation. With 45μA low supply current and 0.5pA input bias current, the OPAx348 series is an ideal choice for low-power, high-impedance applications such as smoke detectors and other sensors. The automotive temperature range of -40°C to +125°C across the full supply voltage range enhances design flexibility.

Applications

Portable devices
Battery-powered devices
Smoke detectors
Carbon monoxide (CO) detectors
HEV/EV and powertrain
Infotainment systems and instrument clusters
Medical instruments

Key features

Qualified for automotive applications, AEC-Q100 compliant
Device temperature grade 1: –40°C to +125°C ambient operating temperature range
Device HBM ESD classification level 2
Device CDM ESD classification level C4B
Low quiescent current (IQ): 45μA (Typ)
Low cost
Rail-to-rail input and output
Single supply: 2.1V to 5.5V
Input bias current: 0.5pA (Typ)
High speed: gain bandwidth product: 1MHz
