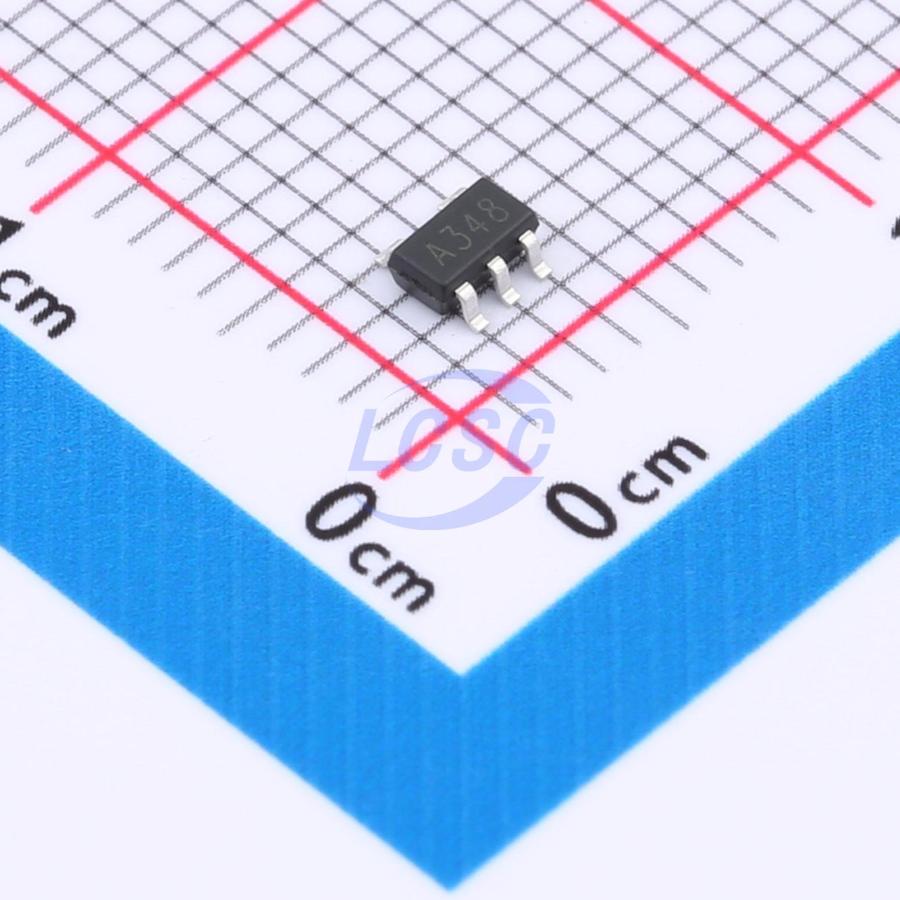

OPA348M5/TR
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
SOT-23-5RoHSActive
1MHz,45uA,CMOS,Rail-to-Rail OPERATIONAL AMPLIFIERS
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA348M5/TR
- Store part #
- C19193500
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C19193500
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.55 | ₹82.75 |
| 50+ | ₹14.45 | ₹722.50 |
| 150+ | ₹13.55 | ₹2,032.50 |
| 500+ | ₹12.44 | ₹6,220.00 |
| 3,000+ | ₹11.93 | ₹35,790.00 |
| 6,000+ | ₹11.63 | ₹69,780.00 |
5 × ₹16.55
₹82.75
excl. GST
₹97.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA348M5/TR
₹82.75 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.052 g
