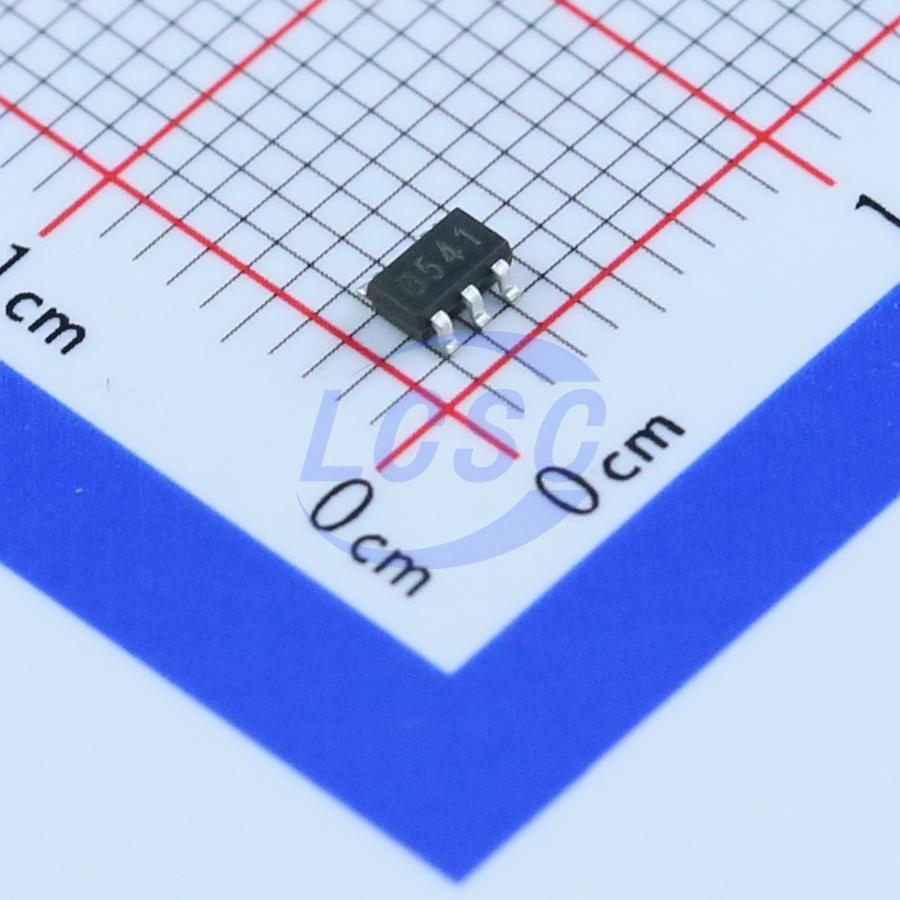

SGM8541XN5/TR
85mA 1 800uV 520V/ms 0.5pA 87dB 46uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
1.1MHz, 46uA, Rail-to-Rail I/O CMOS Operational Amplifiers
- Manufacturer
- SGMICRO
- Manufacturer part #
- SGM8541XN5/TR
- Store part #
- C83409
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,454 in stock
#C83409
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.95 | ₹55.95 |
| 10+ | ₹41.85 | ₹418.50 |
| 30+ | ₹35.79 | ₹1,073.70 |
| 100+ | ₹28.19 | ₹2,819.00 |
1 × ₹55.95
₹55.95
excl. GST
₹66.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SGM8541XN5/TR
₹55.95 for 1 + GST
Specifications
- Output Current
- 85mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 520V/ms
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 87dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 46uA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The SGM8541 (single), SGM8542 (dual) and SGM8544 (quad) are low cost, rail-to-rail input and output voltage feedback amplifiers. They have a wide input common mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. The SGM8541/2/4 provide 1.1MHz bandwidth at a low current consumption of 46μA per amplifier. Very low input bias currents of 0.5pA enable SGM8541/2/4 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail input and output are useful to designers for buffering ASIC in single-supply systems. Applications for these amplifiers include safety monitoring, portable equipment, battery and power supply control, and signal conditioning and interfacing for transducers in very low power systems. The SGM8541 single is available in the Green SOT-23-5, SC70-5 and SOIC-8 packages. The SGM8542 dual comes in the Green SOIC-8, MSOP-8 and TSSOP-8 packages. The quad SGM8544 is offered in Green TSSOP-14 and SOIC-14 packages. They are specified over the extended industrial temperature range (-40°C to +125°C).
Applications
- ASIC Input or Output Amplifier
- Sensor Interface
- Piezoelectric Transducer Amplifier
- Medical Instrumentation
- Mobile Communication
- Audio Output
- Portable Systems
- Smoke Detectors
- Mobile Telephone
- Notebook PC
- PCMCIA Cards
- Battery-Powered Equipment
Key features
- Low Cost
- Rail-to-Rail Input and Output 0.8mV Typical VOS
- Unity Gain Stable
- Gain-Bandwidth Product: 1.1MHz
- Very Low Input Bias Current: 0.50A
- Supply Voltage Range: 2.1V to 5.5V
- Input Voltage Range: -0.1V to +5.68 with VS = 5.5V
- Low Supply Current: 46μA/Amplifier
- Small Packaging: SGM8541 Available in Green SOIC-8, SC70-5 and SOT-23-5 Packages; SGM8542 Available in Green SOIC-8, MSOP-8 and TSSOP-8 Packages; SGM8544 Available in Green SOIC-14 and TSSOP-14 Packages
