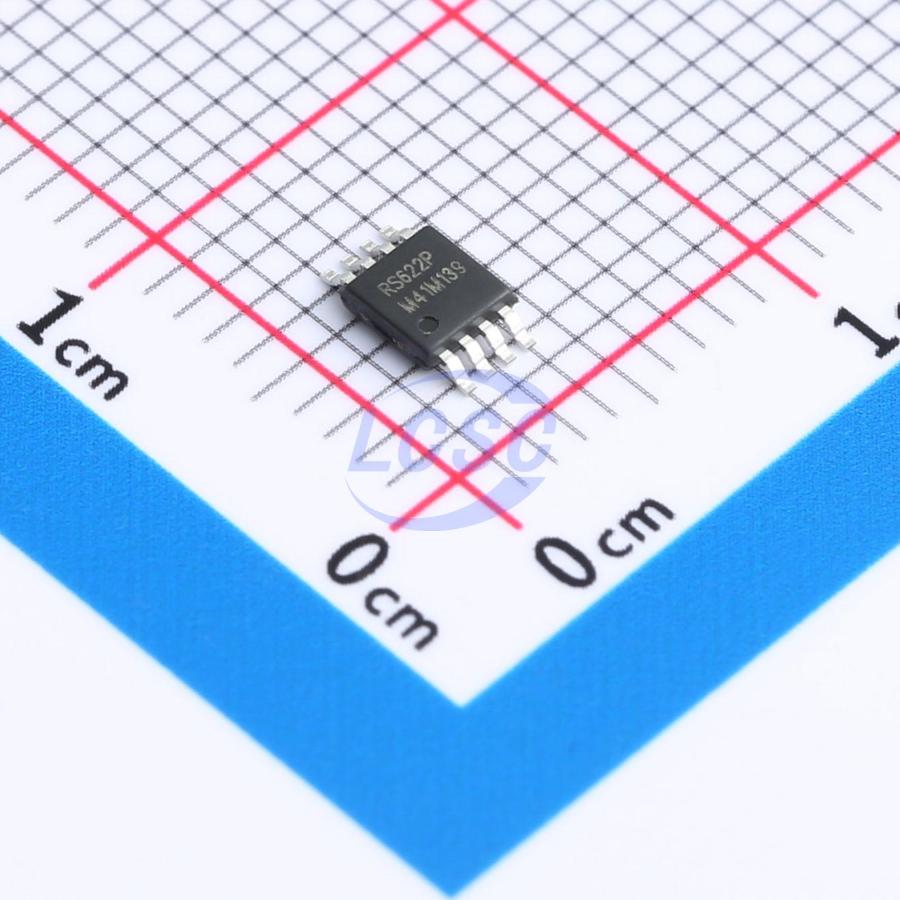

RS622PXM

120mA 2 500uV 3.7V/us 96dB 10uA 7MHz 720uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Precision, Rail-to-Rail I/O CMOS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS622PXM
Store part #: C5372587
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,680 in stock

#C5372587

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹72.78	₹363.90
50+	₹54.32	₹2,716.00
150+	₹46.37	₹6,955.50
500+	₹36.50	₹18,250.00

Quantity (min 5, multiples of 5)

5 × ₹72.78

₹363.90

excl. GST

₹429.40 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS622PXM

₹363.90 for 5 + GST

Specifications

Output Current: 120mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 3.7V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 96dB
Ib - Input Bias Current: 10uA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 7MHz
Quiescent Current: 720uA
Features: Built-in compensation
Input Voltage Noise Density: 11nV/√Hz@1kHz
Dual Supply: -1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.065 g

Overview

The RS621P, RS622P, RS624P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (7MHz) and slew rate of 3.7V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The RS621P, RS622P and RS624P has lower offset, which is guaranteed not upper than ±0.5mV at 25°C with VS = 5V, VCM = Vs/2. The devices are ideal for sensor interfaces, active filters and portable applications. The RS621P, RS622P, RS624P families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT
DRIVING A/D CONVERTERS

Key features

GAIN BANDWIDTH: 7MHz
RAIL-TO-RAIL INPUT AND OUTPUT ±0.5mV Max Vos
INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V
SUPPLY RANGE: +2.5V to +5.5V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOT23-5, SC70-5
