RUNICDatasheet (PDF)

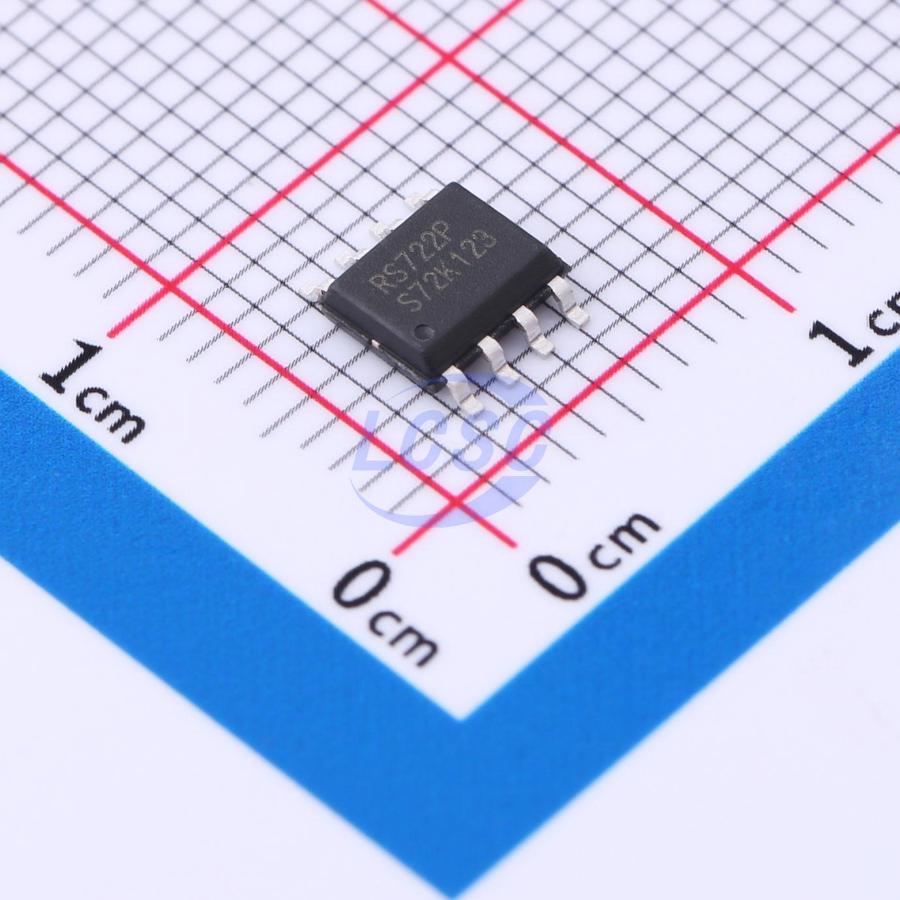

RS722PXK
140mA 2 800uV 6V/us 97dB 1pA 1.1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
10MHz, Precision, Rail-to-Rail I/O CMos Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS722PXK
- Store part #
- C2764998
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,672 in stock
#C2764998
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.44 | ₹86.44 |
| 10+ | ₹64.73 | ₹647.30 |
| 30+ | ₹55.17 | ₹1,655.10 |
| 100+ | ₹43.45 | ₹4,345.00 |
1 × ₹86.44
₹86.44
excl. GST
₹102.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS722PXK
₹86.44 for 1 + GST
Specifications
- Output Current
- 140mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 97dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.6uV/℃
- Quiescent Current
- 1.1mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.5nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
- HIGH GAIN BANDWIDTH: 10MHz RAIL-TO-RAIL INPUT AND OUTPUT 0.8mv Max Vos INPUT VOLTAGE RANGE: -0.2V to +5.7V with Vs = 5.5V - SUPPLY RANGE: +2.5V to +5.5V - SPECIFIED UP TO ±125°C Micro SIZE PACKAGES: SOT23-5 SOT353(SC70-5) - The RS721P, RS722P, RS724P families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (10MHz) and slew rate of 6V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. - The RS721P, RS722P and RS724P has lower offset, which is guaranteed not upper than 0.5mV at 25°C with VS = 5V, VCM = Vs/2. - The RS72XP devices are unity-gain stable, dual and qual-channel op amps with low noise and distortion. The device consists of a low noise input stage with a folded cascade and a rail-to-rail output stage. This topology exhibits superior noise and distortion performance across a wide range of supply voltages that are not delivered by legacy commodity audio operational amplifiers. - The RS72XP family has internal phase-reversal protection. The input of the RS72XP prevents phase reversal with excessive common-mode voltage. Instead, the appropriate rail limits the output voltage.
Applications
- SENSORS
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
- PHOTODIODE AMPLIFICATION
- sensor interfaces
- portable applications
