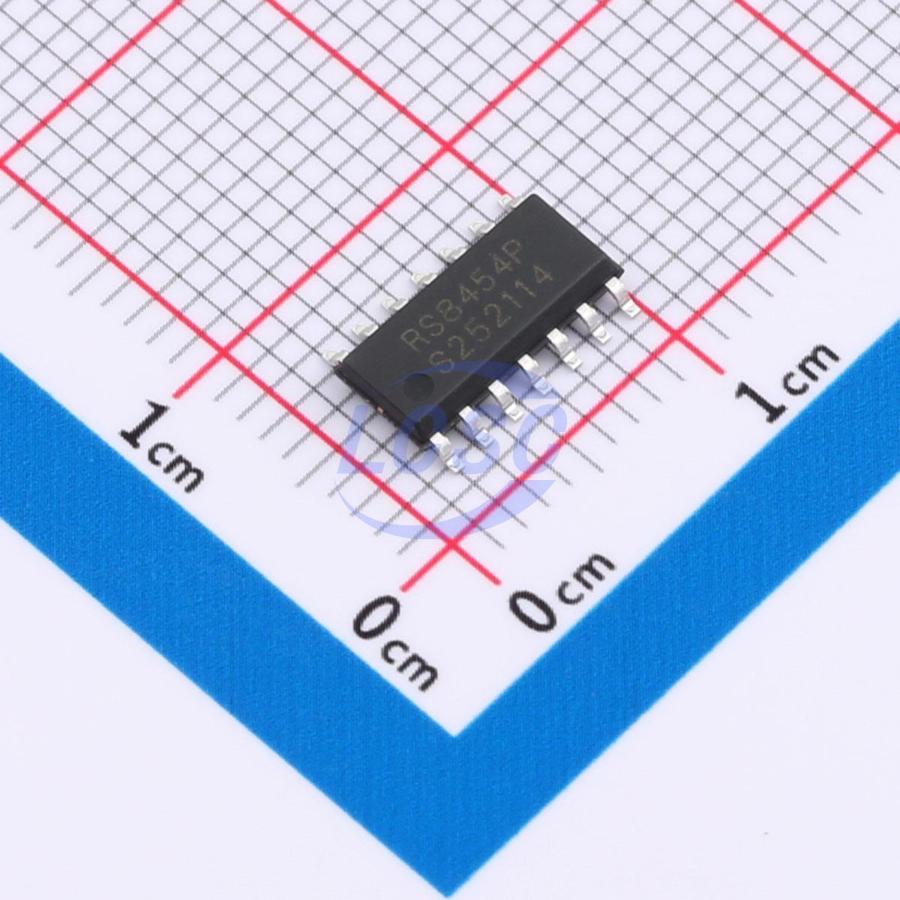

RUNIC

RS8454PXP

4 1.5mV 5V/us 60pA 110dB 4.3mA 8MHz Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Rail-to-Rail Output CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8454PXP
Store part #: C2931603
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,905 in stock

#C2931603

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹86.30	₹86.30
10+	₹64.62	₹646.20
30+	₹55.08	₹1,652.40
100+	₹43.37	₹4,337.00

Quantity (min 1)

1 × ₹86.30

₹86.30

excl. GST

₹101.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8454PXP

₹86.30 for 1 + GST

Specifications

Number of Channels: 4
Vos - Input Offset Voltage: 1.5mV
Slew Rate: 5V/us
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 60pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 4.3mA
Gain Bandwidth Product: 8MHz
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: 2.5V~18V;-18V~-2.5V
Rail to Rail: Rail-to-rail output
Single Supply: 5V~36V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.256 g

Overview

The RS845XP families of products offer high voltage (36V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz) and slew rate of 5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The input can operate normally within the negative power rail to 2V below of the positive power rail. The RS845XP families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 5V to 36V or dual power supplies of ±2.5V to ±18V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS

Key features

HIGH GAIN BANDWIDTH: 8MHz
INPUT OFFSET VOLTAGE: ±1.5mV (Max at 25°C)
QUIESCENT CURRENT: 2.75mA/Amp
Rail to Rail Output
Supply Range: +5V to ±36V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOT23-5
