RUNIC

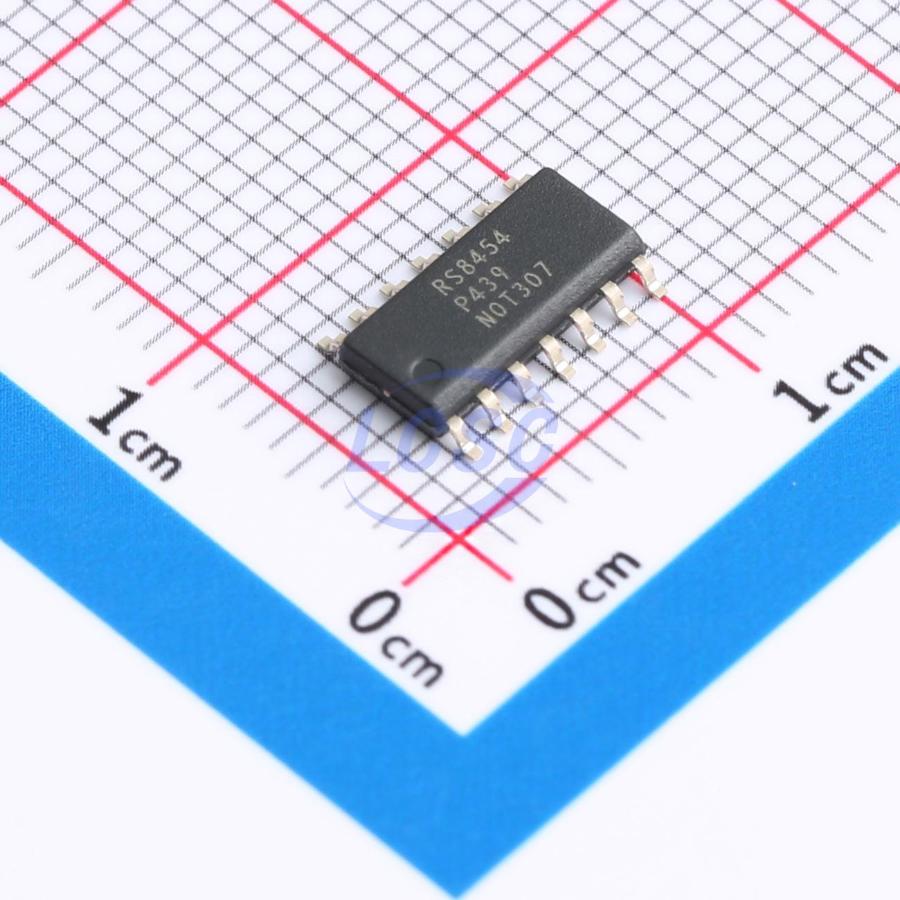

RS8454XP-Q1

30mA 4 800uV 5V/us 10pA 110dB 8MHz 2.75mA Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

32V, 8MHz Rail-to-Rail Output CMos Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS8454XP-Q1
Store part #: C19269203
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,480 in stock

#C19269203

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹60.99	₹60.99
10+	₹54.26	₹542.60
30+	₹51.00	₹1,530.00
100+	₹47.54	₹4,754.00
500+	₹45.58	₹22,790.00
1,000+	₹44.72	₹44,720.00

Quantity (min 1)

1 × ₹60.99

₹60.99

excl. GST

₹71.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS8454XP-Q1

₹60.99 for 1 + GST

Specifications

Output Current: 30mA
Number of Channels: 4
Vos - Input Offset Voltage: 800uV
Slew Rate: 5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 5uV/℃
Gain Bandwidth Product: 8MHz
Quiescent Current: 2.75mA
Features: ESD protection
Input Voltage Noise Density: 35nV/√Hz@1kHz
Dual Supply: -16V~-2.5V;2.5V~16V
Rail to Rail: Rail-to-rail output
Single Supply: 5V~32V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.24 g

Overview

The RS845X-Q1 families of products offer high voltage (32V) operation and rail-to-rail output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (8MHz) and slew rate of 5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The input can operate normally within the negative power rail to 2V below of the positive power rail. The RS845X-Q1 families of operational amplifiers are specified at the full temperature range of -40°C to +125°C under single power supplies of 5V to 32V or dual power supplies of ±2.5V to ±16V.

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT
DRIVING A/D CONVERTERS

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified with the Grade 1
HIGH GAIN BANDWIDTH: 8MHz
INPUT OFFSET VOLTAGE: ±0.8mV (Typical)
QUIESCENT CURRENT: 2.75mA/Amp
Rail to Rail Output
Supply Range: +5V to +32V
SPECIFIED UP TO ±125°C
Micro SIZE PACKAGES: SOIC-8(SOP8)
