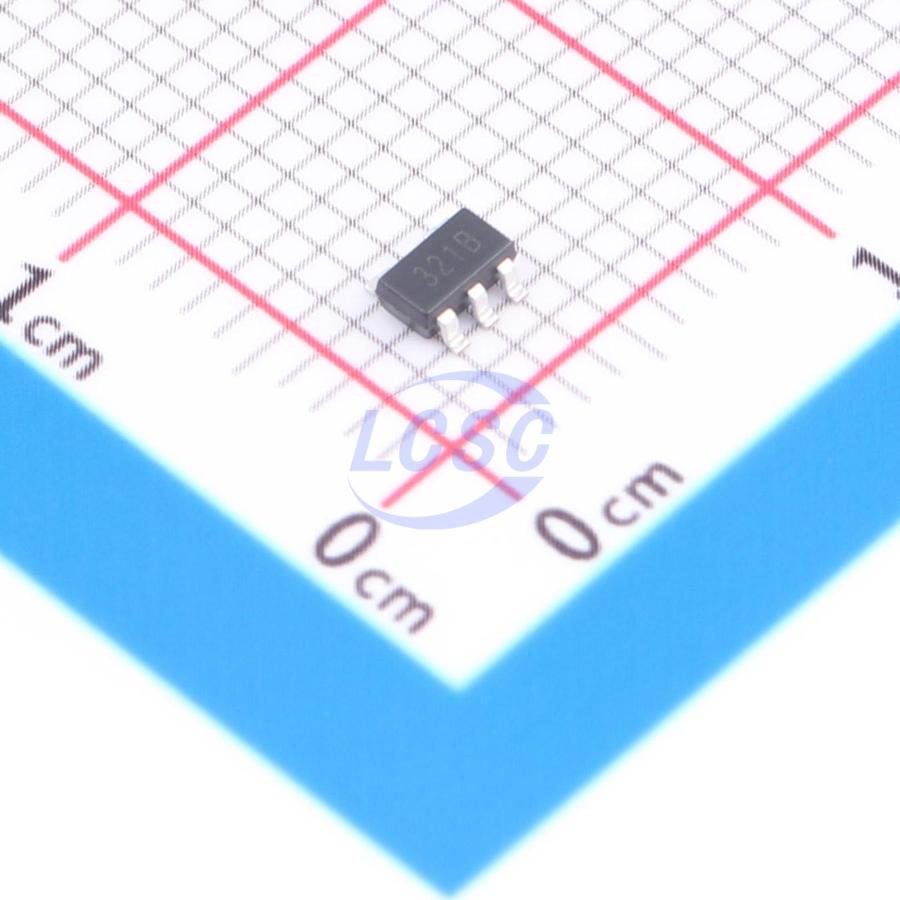

SGM321BYN5/TR

84mA 1 800uV 520V/ms 70dB 10pA 1MHz 60uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: SGMICRO
Manufacturer part #: SGM321BYN5/TR
Store part #: C5152062
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,695 in stock

#C5152062

Stock & price checked 29 h ago

Quantity	Unit price	Pack price
5+	₹34.42	₹172.10
50+	₹25.71	₹1,285.50
150+	₹21.98	₹3,297.00
500+	₹17.30	₹8,650.00

Quantity (min 5, multiples of 5)

5 × ₹34.42

₹172.10

excl. GST

₹203.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM321BYN5/TR

₹172.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 84mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 520V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 60uA
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The SGM321 (single), SGM358 (dual), and SGM324 (quad) are low-cost voltage feedback amplifiers. These devices operate from a 2.1V to 5.5V single supply, consuming only 60μA quiescent current per amplifier. They feature rail-to-rail inputs with a wide common-mode input voltage range and rail-to-rail output voltage swing. This makes the SGM321/358/324 well-suited for buffering ASICs. The SGM321/358/324 offer a 1MHz gain bandwidth product and ultra-low input bias current of only 10pA. They are ideal for piezoelectric sensors, integrators, and photodiode amplifiers. The SGM321/358/324 are suitable for a wide range of applications such as battery-powered instrumentation, security monitoring, portable systems, and sensor interface circuits in low-power systems. The SGM321 is available in green SOT-23-5 and SC70-5 packages. The SGM358 is available in green SOIC-8, MSOP-8, and DIP-8 packages. The SGM324 is available in green TSSOP-14 and SOIC-14 packages. The operating temperature range is -40°C to +85°C.

Applications

ASIC input or output amplifier
Piezoelectric sensor amplifier
Battery-powered devices
Portable devices
Sensor interface

Key features

Low cost
Input offset voltage: 5mV maximum
Ultra-low input bias current: 10pA typical
Unity-gain stable
Gain bandwidth product: 1MHz
Rail-to-rail input and output
Supply voltage range: 2.1V to 5.5V
Input voltage range: -0.1V to 5.6V when VS = 5.5V
Low quiescent current: 60μA typical per amplifier
Operating temperature range: -40°C to +85°C
Small packages: SGM321 in green SOT-23-5 and SC70-5; SGM358 in green SOIC-8, MSOP-8, and DIP-8; SGM324 in green SOIC-14 and TSSOP-14
