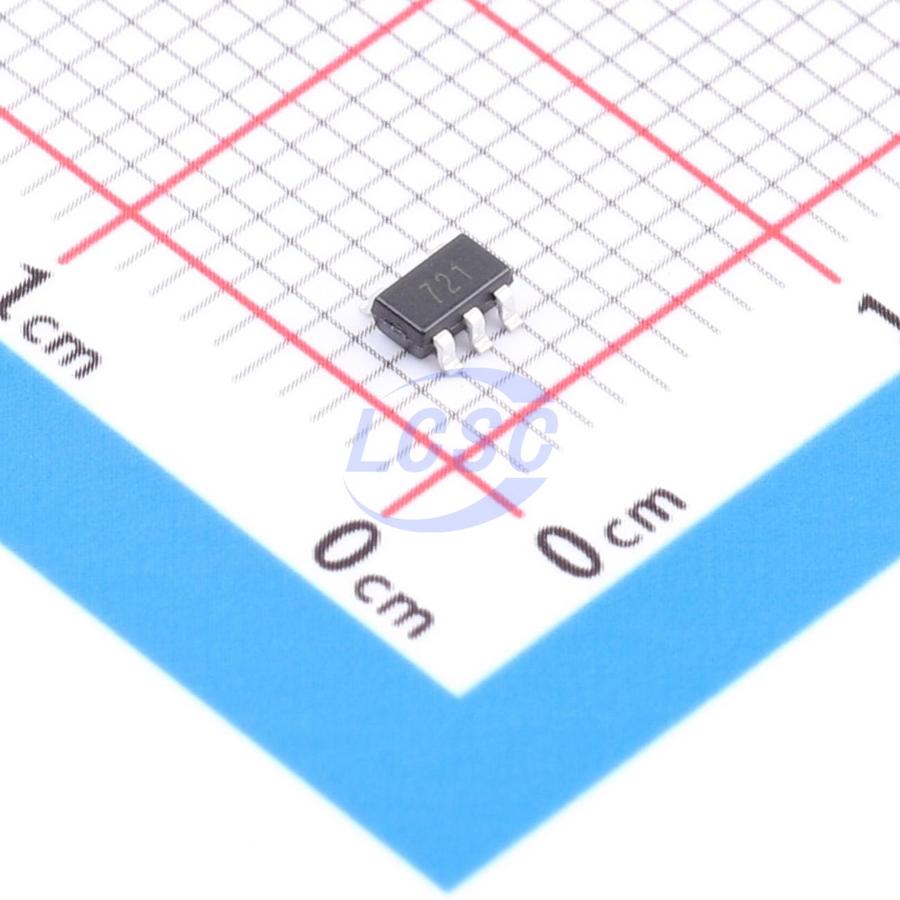

SGM721XN5/TR

The SGM721/2/3/4 are a family of single, dual and quad operational amplifiers, which are optimized for low voltage, low noise and low power operation. These devices can operate from 2.1V to 5.5V single supply, while consuming low quiescent current. The supply current of SGM723 is less than 1μA in power-down mode. The SGM721/2/3/4 feature a 4mV maximum input offset voltage. The minimum input common mode voltage is within 0.1V below the negative rail, and the output swing is rail-to-rail with heavy loads. They exhibit a high gain-bandwidth product of 11MHz and a slew rate of 8.5V/μs. These specifications make the operational amplifiers appropriate for various applications. The SGM721 is available in Green SC70-5, SOT-23-5 and SOIC-8 packages. The SGM722 is available in Green SOIC-8, MSOP-8 and TSSOP-8 packages. The SGM723 is available in Green SOT-23-6 and SOIC-8 packages. The SGM724 is available in Green SOIC-14 and TSSOP-14 packages. They are specified over the extended industrial temperature range -40°C to +125°C.

Applications

• Sensors
• Audio
• Active Filters
• A/D Converters
• Communications
• Test Equipment
• Cellular and Cordless Phones
• Laptops and PDAs
• Photodiode Amplification
• Battery-Powered Instrumentation

Key features

• Input Offset Voltage: 4mV (MAX)
• High Gain-Bandwidth Product: 11MHz
• High Slew Rate: 8.5V/μs
• Settling Time to 0.1% with 2V Step: 0.21μs
• Overload Recovery Time: 0.6μs
• Low Noise: 8.5nV/√Hz at 10kHz
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to 5.6V with Vs = 5.5V
• Low Power: SGM721/3: 1.2mA (TYP) SGM722/4: 1.1mA/Amplifier (TYP) SGM723 Less than 1μA when Disabled
• -40°C to +125°C Operating Temperature Range
• Small Packaging: SGM721 Available in Green SC70-5, SOT-23-5 and SOIC-8 Packages SGM722 Available in Green MSOP-8, SOIC-8 and TSSOP-8 Packages SGM723 Available in Green SOT-23-6 and SOIC-8 Packages SGM724 Available in Green TSSOP-14 and SOIC-14 Packages
