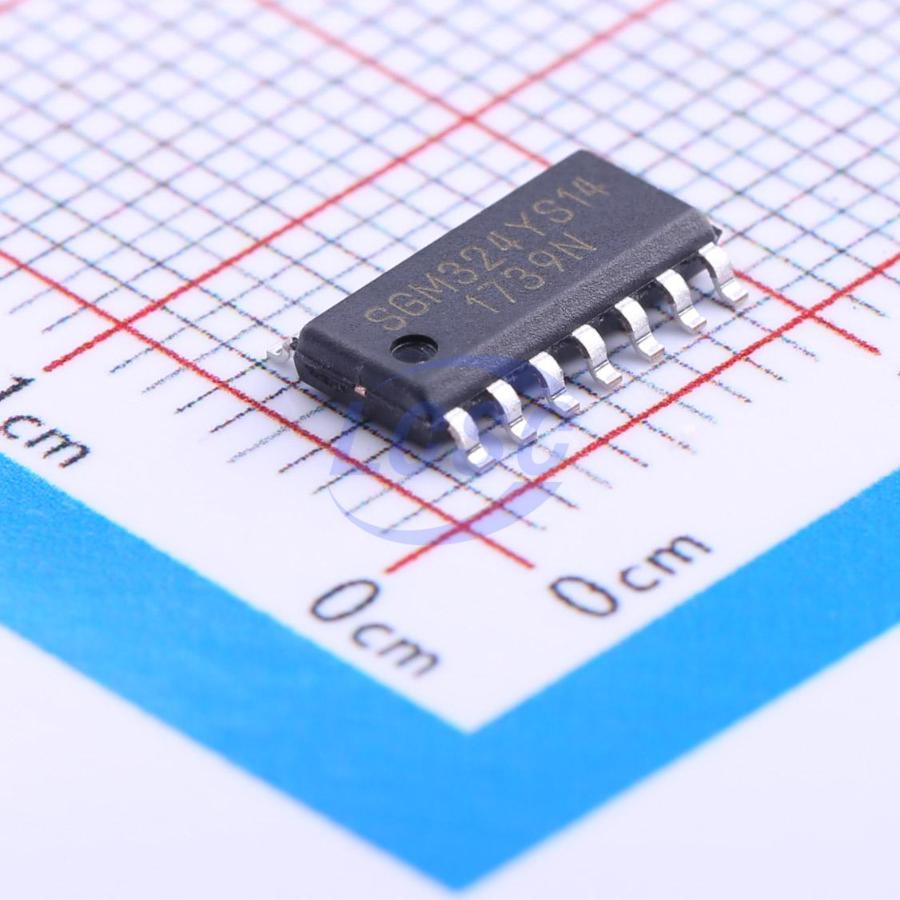

SGM324YS14/TR

84mA 4 800uV 520V/ms 10pA 70dB 1MHz 86uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps

SOIC-14RoHSActive

1MHz, 60uA, Rail-to-Rail I/O, CMos Operational Amplifiers

Manufacturer: SGMICRO
Manufacturer part #: SGM324YS14/TR
Store part #: C77887
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,011 in stock

#C77887

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹77.37	₹77.37
10+	₹57.71	₹577.10
30+	₹49.28	₹1,478.40
100+	₹38.91	₹3,891.00

Quantity (min 1)

1 × ₹77.37

₹77.37

excl. GST

₹91.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SGM324YS14/TR

₹77.37 for 1 + GST

Specifications

Output Current: 84mA
Number of Channels: 4
Vos - Input Offset Voltage: 800uV
Slew Rate: 520V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 70dB
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 86uA
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.783 g

Overview

The SGM321 (single), SGM358 (dual) and SGM324 (quad) are low cost, rail-to-rail input and output voltage feedback amplifiers. They have a wide input common mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. All are specified over the extended -40°C to +85°C temperature range. The SGM321/358/324 provide 1MHz bandwidth at a low current consumption of 60μA per amplifier. Very low input bias currents of 10pA enable SGM321/358/324 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail input and output are useful to designers for buffering ASIC in single-supply systems. Applications for this series of amplifiers include safety monitoring, portable equipment, battery and power supply control, and signal conditioning and interfacing for transducers in very low power systems. The SGM321 is available in the Green SOT-23-5 and SC70-5 packages. The SGM358 comes in the Green SOIC-8, MSOP-8 and DIP-8 packages. The SGM324 is offered in the Green SOIC-14 and TSSOP-14 packages.

Applications

ASIC Input or Output Amplifier
Sensor Interface
Piezoelectric Transducer Amplifier
Medical Instrumentation
Mobile Communication
Audio Output
Portable Systems
Smoke Detectors
Notebook PC
PCMCIA Cards
Battery-Powered Equipment
DSP Interface

Key features

Low Cost
Rail-to-Rail Input and Output 0.8mv Typical VOS
Unity Gain Stable Gain-Bandwidth Product: 1MHz
Very Low Input Bias Current: 10pA
Supply Voltage Range: 2.1V to 5.5V
Input Voltage Range: -0.1V to +5.68 with Vs = 5.5V
Low Supply Current: 60μA/Amplifier
Small Packaging
SGM321 Available in SOT-23-5 and SC70-5
SGM358 Available in SOIC-8, MSOP-8 and DIP-8
SGM324 Available in SOIC-14 and TSSOP-14

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SGM8273-4XS14G/TR#C700147SGMICRO · SOIC-14	SGMICRO	SOIC-14	2,470	₹210.49 · 2,470 in stock	View
SGM8634XS14/TR#C80805SGMICRO · SOIC-14	SGMICRO	SOIC-14	1,619	₹156.68 · 1,619 in stock	View
SGM8544XS14/TR#C700021SGMICRO · SOIC-14	SGMICRO	SOIC-14	On request	Price on request	Quote
SGM724XS14/TR#C699936SGMICRO · SOIC-14	SGMICRO	SOIC-14	On request	Price on request	Quote
SGM8276-4XS14G/TR#C700190SGMICRO · SOIC-14	SGMICRO	SOIC-14	On request	Price on request	Quote
