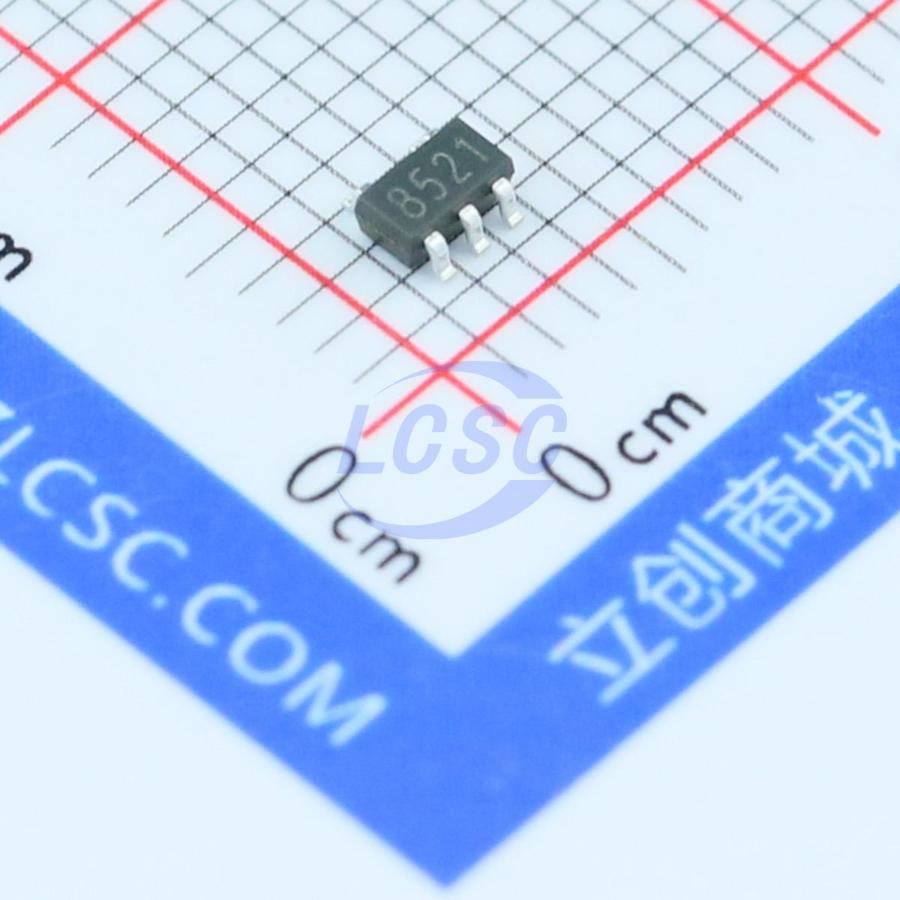

SGM8521XN5/TR

22mA 1 800uV 40V/ms 0.5pA 91dB 150kHz 4.7uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

150KHz, 4.7uA, Rail-to-Rail I/O CMos Operational Amplifier

Manufacturer: SGMICRO
Manufacturer part #: SGM8521XN5/TR
Store part #: C19968
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,390 in stock

#C19968

Stock & price checked 16 h ago

Quantity	Unit price	Pack price
1+	₹105.10	₹105.10
10+	₹80.73	₹807.30
30+	₹68.54	₹2,056.20
100+	₹56.58	₹5,658.00

Quantity (min 1)

1 × ₹105.10

₹105.10

excl. GST

₹124.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SGM8521XN5/TR

₹105.10 for 1 + GST

Specifications

Output Current: 22mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 40V/ms
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 0.5pA
Common Mode Rejection Ratio(CMRR): 91dB
Input Offset Voltage Drift(Vos TC): 1.7uV/℃
Gain Bandwidth Product: 150kHz
Quiescent Current: 4.7uA
Features: Built-in compensation
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.038 g

Overview

The SGM8521 (single), SGM8522 (dual), and SGM8524 (quad) are low-cost voltage feedback amplifiers. These devices operate from a 2.1V to 5.5V single supply, consuming only 5.5μA quiescent current per amplifier. They feature rail-to-rail inputs with a wide common-mode input voltage range and rail-to-rail output voltage swing. This makes the SGM8521/2/4 well-suited for buffering ASICs. The SGM8521/2/4 offer a gain bandwidth product of 150kHz and an ultralow input bias current of only 3pA. They are ideal for piezoelectric sensors, integrators, and photodiode amplifiers. The SGM8521/2/4 are designed for a broad range of applications, including battery-powered instrumentation, security monitoring, portable systems, and sensor interface circuits in low-power systems. The SGM8521 is available in green SOT-23-5 and SOIC-8 packages. The SGM8522 is available in green SOIC-8 and MSOP-8 packages. The SGM8524 is available in green SOIC-14 and TSSOP-14 packages. All devices operate over a temperature range of -40°C to +125°C.

Applications

ASIC input or output amplifier
Piezoelectric sensor amplifier
Battery-powered devices
Portable devices
Sensor interface

Key features

Low cost
Input offset voltage: 3.5mV (max)
Unity-gain stable
Gain bandwidth product: 150kHz
Rail-to-rail input and output
Supply voltage range: 2.1V to 5.5V
Input voltage range: -0.1V to 5.6V when VS = 5.5V
Low supply current: 5.5μA/amplifier
Operating temperature range: -40°C to +125°C
Small package: SGM8521 available in green SOIC-8 and SOT-23-5 packages
SGM8522 available in green SOIC-8 and MSOP-8 packages
SGM8524 available in green SOIC-14 and TSSOP-14 packages
