SlkorDatasheet (PDF)

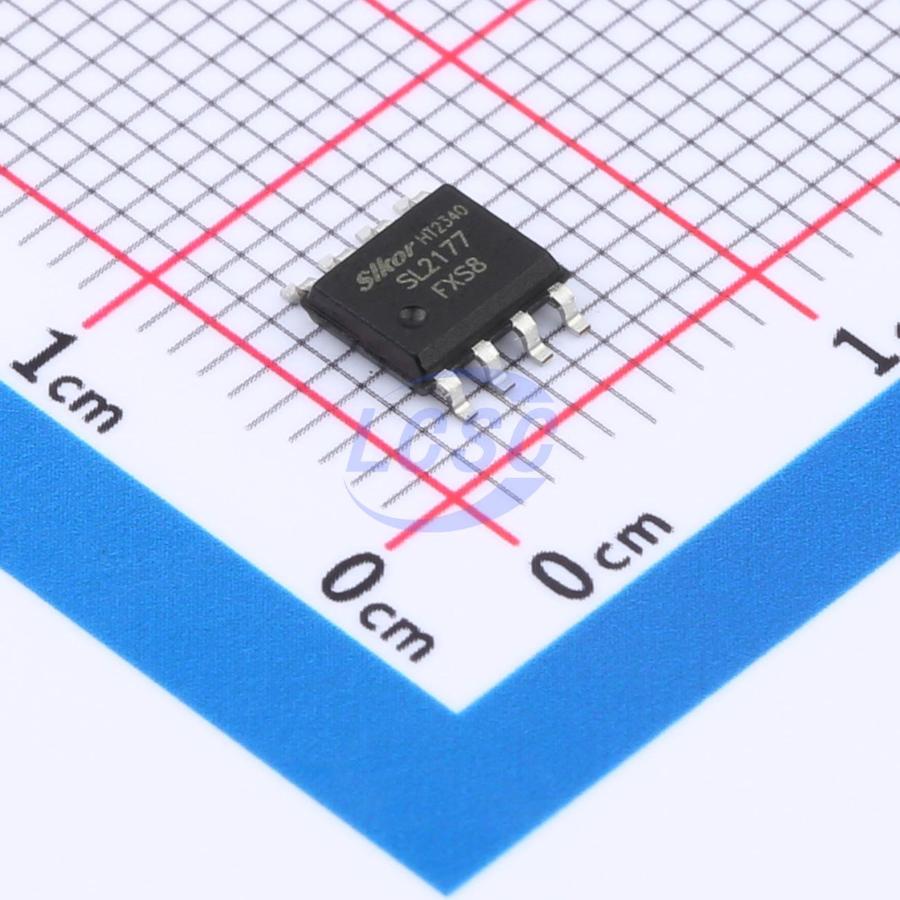

SL2177FXS8
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Output SOP-8
SOP-8RoHSActive
Low offset, rail-to-rail output, 36V operational amplifier
- Manufacturer
- Slkor
- Manufacturer part #
- SL2177FXS8
- Store part #
- C19632486
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,829 in stock
#C19632486
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.23 | ₹83.23 |
| 10+ | ₹67.16 | ₹671.60 |
| 30+ | ₹59.11 | ₹1,773.30 |
| 100+ | ₹51.07 | ₹5,107.00 |
| 500+ | ₹45.64 | ₹22,820.00 |
| 1,000+ | ₹43.25 | ₹43,250.00 |
1 × ₹83.23
₹83.23
excl. GST
₹98.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SL2177FXS8
₹83.23 for 1 + GST
Specifications
- Output Current
- 25mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 50uV
- Slew Rate
- 1.6V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 100pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Quiescent Current
- 410uA
- Gain Bandwidth Product
- 2MHz
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 22nV/√Hz@1kHz
- Dual Supply
- -18V~-1.65V;1.65V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 3.3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
SL2177F (dual) and SL4177F (quad) are low-offset op-amps with high input impedance, featuring output swing within 200mV of the supply rails. The input common-mode voltage range extends to the negative supply rail. Offset voltage is trimmed using trim technology, achieving an ultralow offset voltage (typical 50μV). The devices support both single-supply and dual-supply operation. For single-supply operation, the supply voltage range is +3.3V to +36V; for dual-supply operation, the supply voltage range is ±1.65V to ±18V. SL2177F is available in SOP-8 and MSOP-8 packages; SL4177F is available in SOP-14 and TSSOP-14 packages. All package types support an operating temperature range of -40°C to +125°C.
Applications
- Bridge amplifier
- Strain gauge
- Sensor applications
- Temperature measurement
- Electronic scale
- Medical equipment
- Resistance temperature detector
Key features
- Low offset voltage: 50μV (typical)
- Zero drift: 0.5μV/°C
- High DC accuracy
- Open-loop gain (AVOL): 120dB
- Power supply rejection ratio (PSRR): 110dB
- Common-mode rejection ratio (CMRR): 110dB
- Gain bandwidth product: 2MHz
- Quiescent current: 400μA (typical)
- Supply voltage range: ±1.65V to ±18V
- Rail-to-rail output
- Input extends to negative supply rail
