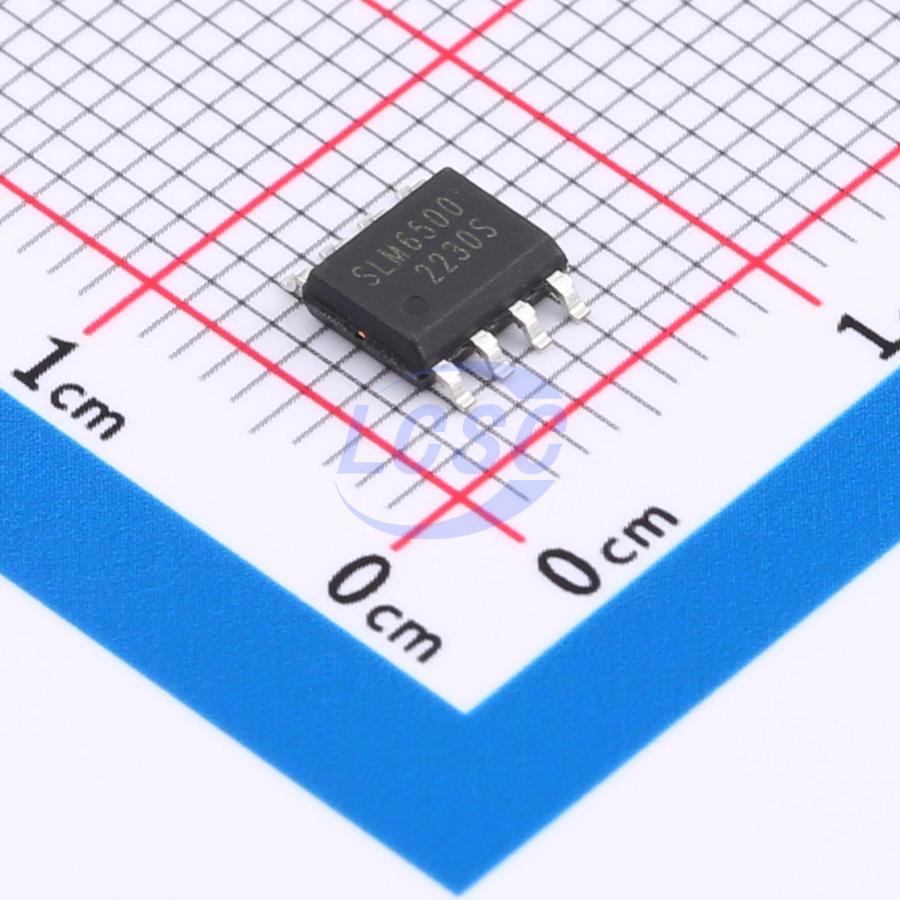

SLM6500S
Lithium Battery 2A SOP-8-EP Battery Management RoHS
2A synchronous step-down lithium battery charging circuit
- Manufacturer
- SOLA-IC
- Manufacturer part #
- SLM6500S
- Store part #
- C7541670
- Package / case
- SOP-8-EP
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,440 in stock
#C7541670
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.96 | ₹184.80 |
| 50+ | ₹28.67 | ₹1,433.50 |
| 150+ | ₹25.12 | ₹3,768.00 |
| 500+ | ₹20.69 | ₹10,345.00 |
| 2,500+ | ₹19.47 | ₹48,675.00 |
| 5,000+ | ₹18.28 | ₹91,400.00 |
5 × ₹36.96
₹184.80
excl. GST
₹218.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLM6500S
₹184.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 140uA
- Operating Voltage
- 3.8V~6V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Short-Circuit Protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.116 g
Overview
The SLM6500 is a 2A single cell Li- ion battery charger applied for 5V adapters. It utilizes 1.2MHz synchronous buck converter topology to reduce power dissipation and therefore reaches a high efficiency up to 90%. The SLM6500 includes complete charge termination circuitry, automatic recharge, and a ±1% 4.2V float voltage. It also has other features include output short- circuit protection, battery temperature monitor, overheating protection, and no blocking diode is required. The SLM6500 is available in SOP8/MSOP8 package with heat sink. Its few external component count makes the SLM6500 a high- efficient battery charger ideally suited for portable applications.
Applications
- Cellular Telephones
- MP3, MP4 Players
- GPS, Digital Cameras
- Electronic Dictionaries
- Portable Devices, Chargers
Key features
- 1.2MHz Fixed Switching Frequency
- High Efficiency up to 90%
- 2.5A Maximum Charge Current
- No External MOSFET or Blocking Diode Required
- Preset 4.2V Charge Voltage with ±1% Accuracy
- Automatic Recharge
- Charge State Pairs of Output, No Battery and Fault Status Display
- C/10 Charge Termination
- 140uA Supply Current in Shutdown
- 2.9V Trickle Charge
- Soft- Start Limits Inrush Current
- Battery Temperature Monitoring
- Short- Circuit Protection
- Available in 8- Pin SOP/MSOP Package
