TDSEMICDatasheet (PDF)
SN65176DR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive

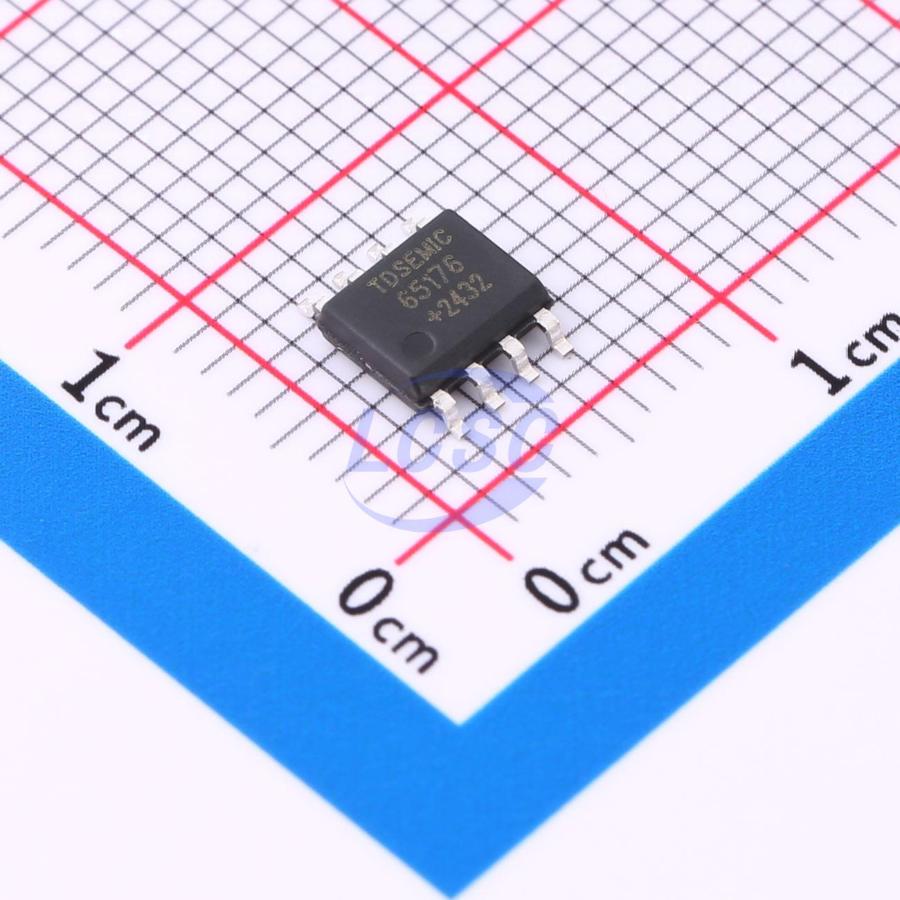

SN65176DR RS-485/RS-422 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN65176DR-TD
- Store part #
- C41369790
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,365 in stock
#C41369790
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.31 | ₹91.55 |
| 50+ | ₹14.51 | ₹725.50 |
| 150+ | ₹12.62 | ₹1,893.00 |
| 500+ | ₹11.19 | ₹5,595.00 |
| 2,500+ | ₹10.05 | ₹25,125.00 |
| 5,000+ | ₹9.49 | ₹47,450.00 |
5 × ₹18.31
₹91.55
excl. GST
₹108.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN65176DR-TD
₹91.55 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.182 g
Overview
SN65176DR is a transceiver IC designed for RS-485 and RS-422 communication systems. The IMX485 supports data transfer rates up to 2.5Mbps for both transmission and reception. RS-485 operates in half-duplex mode. In addition, RS-485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs enter a high-impedance state. The SN65176DR incorporates a failsafe function that ensures the receiver output remains high when the input is open-circuited or short-circuited during receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN75176DR-TD#C41369794TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 1,155 | ₹16.59 · 1,155 in stock | View |
 | SP485ECN-TD#C41369799TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,925 | ₹22.01 · 2,925 in stock | View |
 | ST485EBDR-TD#C41369858TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,240 | ₹32.85 · 4,240 in stock | View |
 | ST485ECDR-TD#C41369859TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,935 | ₹19.57 · 3,935 in stock | View |
 | MAX485CSA-TD#C41369780TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,180 | ₹27.44 · 3,180 in stock | View |
