TDSEMICDatasheet (PDF)

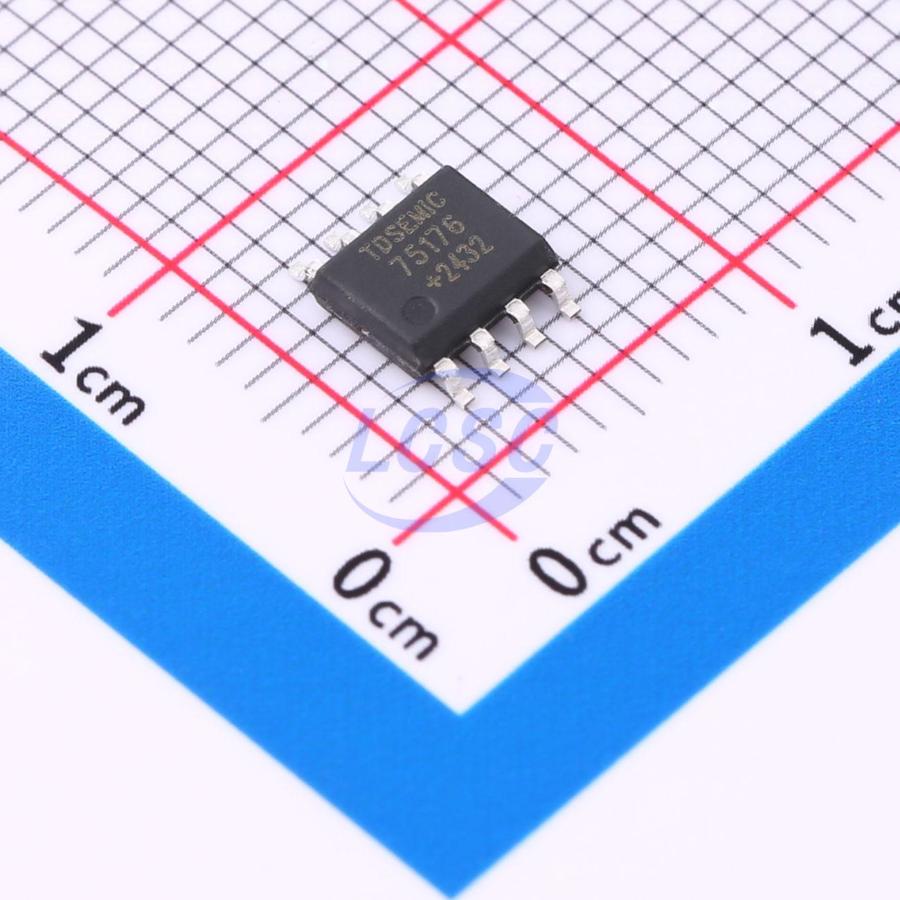

SN75176DR-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
SN75176DR Low-Power RS-485/RS-422 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SN75176DR-TD
- Store part #
- C41369794
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,155 in stock
#C41369794
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.59 | ₹82.95 |
| 50+ | ₹13.15 | ₹657.50 |
| 150+ | ₹11.43 | ₹1,714.50 |
| 500+ | ₹10.15 | ₹5,075.00 |
| 2,500+ | ₹9.12 | ₹22,800.00 |
| 5,000+ | ₹8.60 | ₹43,000.00 |
5 × ₹16.59
₹82.95
excl. GST
₹97.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN75176DR-TD
₹82.95 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.182 g
Overview
SN75176DR is a transceiver IC for RS-485 and RS-422 communication systems, supporting data transfer rates up to 2.5Mbps for IMN485 transmission and reception. The RS-485 operates in half-duplex mode. It features a Driver Enable (DE) pin and a Receiver Enable (RE) pin; when disabled, both the driver and receiver outputs enter a high-impedance state. The SN75176DR incorporates a failsafe function that ensures the receiver output remains high when the input is open-circuited or short-circuited during receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level translation
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN65176DR-TD#C41369790TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,365 | ₹18.31 · 2,365 in stock | View |
 | SP485ECN-TD#C41369799TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,925 | ₹22.01 · 2,925 in stock | View |
 | ST485EBDR-TD#C41369858TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,240 | ₹32.85 · 4,240 in stock | View |
 | ST485ECDR-TD#C41369859TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,935 | ₹19.57 · 3,935 in stock | View |
 | MAX485CSA-TD#C41369780TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 3,180 | ₹27.44 · 3,180 in stock | View |
