TDSEMICDatasheet (PDF)

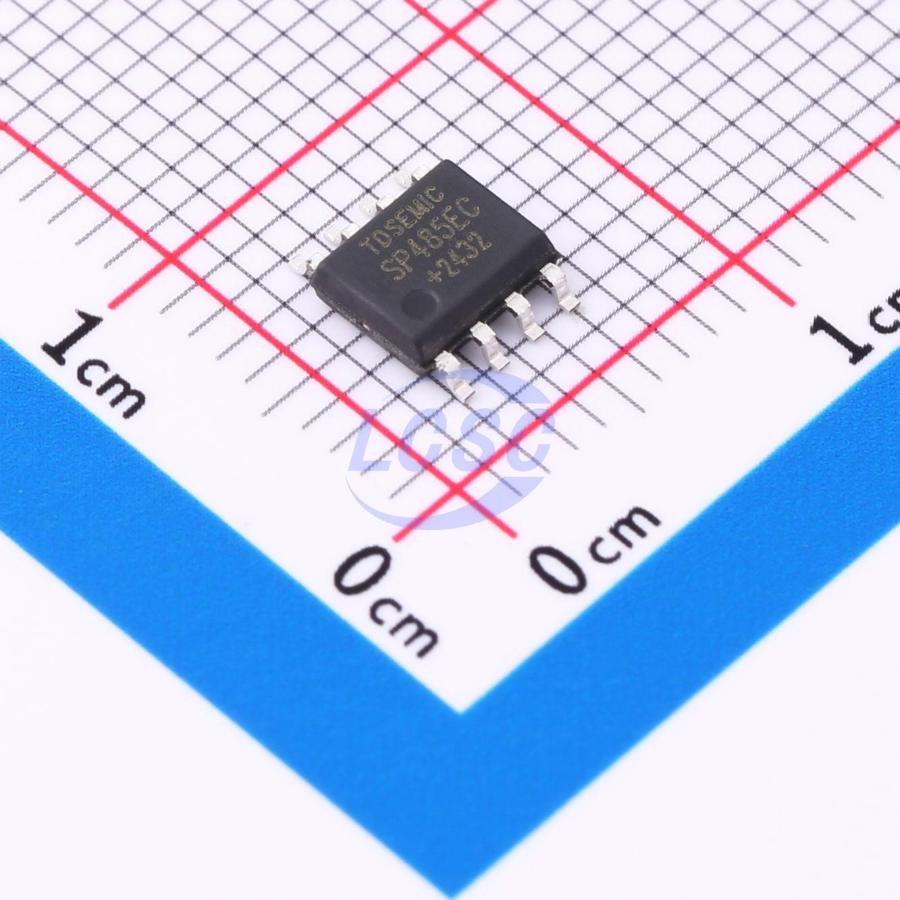

SP485ECN-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
SP485ECN
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SP485ECN-TD
- Store part #
- C41369799
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,925 in stock
#C41369799
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.01 | ₹110.05 |
| 50+ | ₹17.20 | ₹860.00 |
| 150+ | ₹15.12 | ₹2,268.00 |
| 500+ | ₹12.54 | ₹6,270.00 |
| 2,500+ | ₹11.39 | ₹28,475.00 |
| 5,000+ | ₹10.70 | ₹53,500.00 |
5 × ₹22.01
₹110.05
excl. GST
₹129.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP485ECN-TD
₹110.05 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The SP485ECN is a transceiver designed for RS-485 and RS-422 communication systems. The HM485 supports data transmission rates up to 2.5Mbps for both transmitting and receiving. The 485 operates in half-duplex mode. In addition, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both driver and receiver outputs enter a high-impedance state. The SP485ECN incorporates a failsafe function, ensuring the receiver output remains high when the input is open-circuited or short-circuited in receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level shifting
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD Protection: ±1500V - HBM
- Three-State Output
- Half-Duplex
- Bus Supports Up to 128 Transceivers
