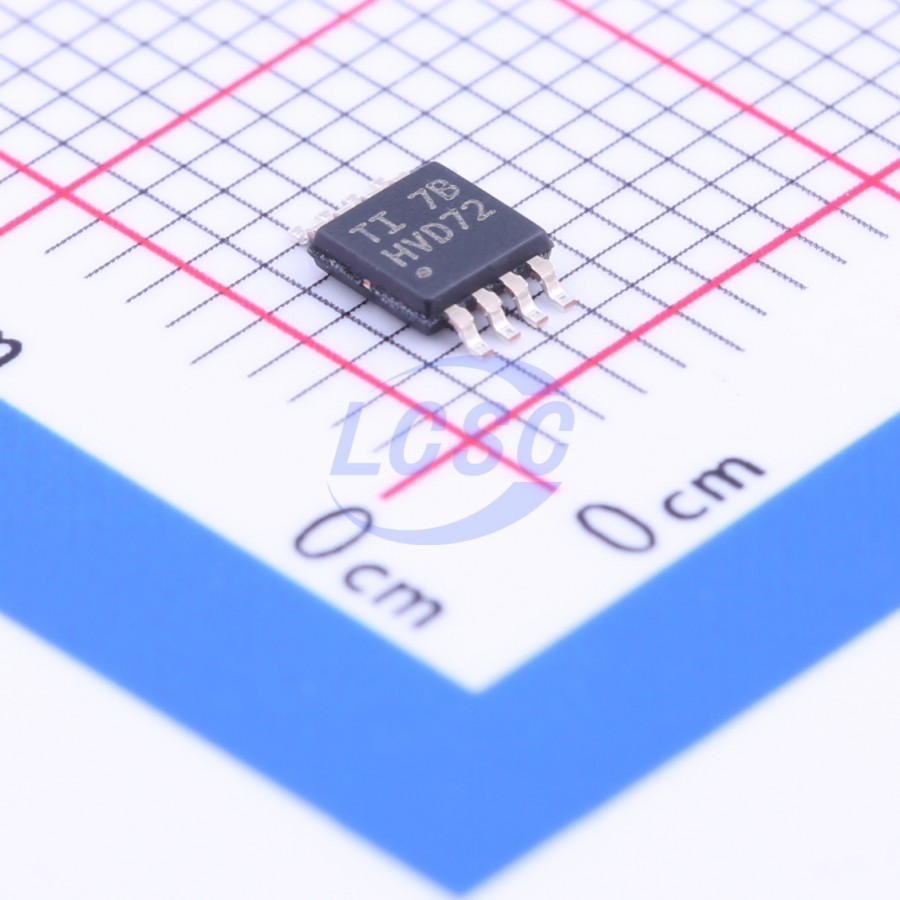

SN65HVD72DGKR

These devices feature robust 3.3V drivers and receivers in small packages, suitable for industrial applications. The bus pins are ESD-protected, with high-level protection against the Human Body Model and IEC contact discharge specifications. Each device integrates one differential driver and one differential receiver, both powered by a single 3.3V supply. The driver differential output and receiver differential input are internally connected to form a bus port for half-duplex (2-wire bus) communication. The wide common-mode voltage range makes these devices suitable for long-cable applications. These devices are rated for an operating temperature range of -40°C to 125°C.

Applications

• Factory automation
• Telecom infrastructure
• Motion control

Key features

• Available in compact VSSOP and SOIC packages — the former saves board space, the latter offers broad compatibility
• Bus I/O protection
• > ±15 kV HBM protection
• > ±12 kV IEC61000-4-2 contact discharge
• > ±4 kV IEC61000-4-4 fast transient burst
• Extended industrial temperature range: -40°C to 125°C
• Large receiver hysteresis (80 mV) for noise suppression
• Low unit load supports connections of more than 200 nodes
• Low power consumption
• Low standby supply current: < 2 μA
• ICC quiescent current during operation: < 1 mA
• 5V-tolerant logic inputs compatible with 3.3V or 5V controllers
• Optimized for data rates: 250 kbps, 20 Mbps, 50 Mbps
• Glitch-free power-up and power-down bus inputs and outputs
