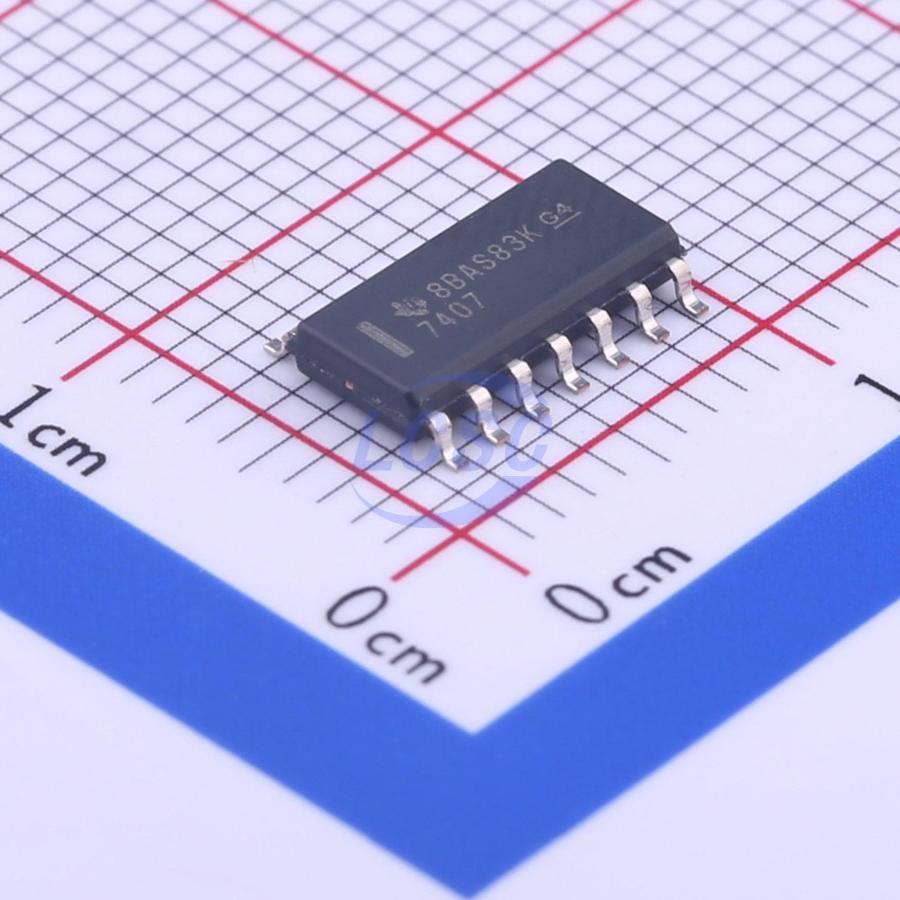

SN7407DR
Buffer Driver 6 Element 1 Bit per Element Open Collector Output SOIC-14
SOIC-14ROHS3 CompliantActive
HEX BUFFERS/DRIVERS WITH OPEN-COLLECTOR HIGH-VOLTAGE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN7407DR
- Store part #
- C40481
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,476 in stock
#C40481
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.34 | ₹185.34 |
| 10+ | ₹148.19 | ₹1,481.90 |
| 30+ | ₹129.51 | ₹3,885.30 |
| 100+ | ₹111.04 | ₹11,104.00 |
| 500+ | ₹100.18 | ₹50,090.00 |
| 1,000+ | ₹94.30 | ₹94,300.00 |
1 × ₹185.34
₹185.34
excl. GST
₹218.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN7407DR
₹185.34 for 1 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 250uA
- Series
- 7400
- Voltage - Supply
- 4.75V~5.25V
- Output Type
- Open Collector
- Current - Output Low(IOL)
- 40mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Operating Temperature
- 0℃~+70℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
These are TTL hex buffers/drivers with high-voltage open-collector outputs, suitable for interfacing with high-voltage circuits (such as MOS), driving high-current loads (such as indicator lamps or relays), or as buffers for driving TTL inputs. The SN5407 and SN7407 have a minimum breakdown voltage of 30V, while the SN5417 and SN7417 have a minimum breakdown voltage of 15V. The SN5407 and SN5417 have a maximum sink current of 30mA, and the SN7407 and SN7417 have a maximum sink current of 40mA. These devices implement the Boolean function Y = A in positive logic. These circuits are fully compatible with most TTL families. Inputs are diode-clamped to minimize transmission line effects and simplify design. Typical power dissipation is 145mW, with an average propagation delay time of 14ns.
Applications
- Interface with high-voltage circuits such as MOS
- Indicator LED driving
- Relay driving
- TTL input driving
Key features
- TTL-to-MOS level conversion
- High sink current capability
- Input clamp diodes for simplified system design
- Open-collector driver for indicators and relays
- Inputs fully compatible with most TTL circuits
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN7407D#C354140TI · SOIC-14 | TI | SOIC-14 | 19 | ₹105.79 · 19 in stock | View | |
 | SN74LS07DR#C371970TI · SOIC-14 | TI | SOIC-14 | 15,140 | ₹54.04 · 15,140 in stock | View |
 | XL74LS07#C513513XINLUDA · SOIC-14 | XINLUDA | SOIC-14 | 2,565 | ₹25.52 · 2,565 in stock | View |
 | SN74ALS1035DR#C2872310TI · SOIC-14 | TI | SOIC-14 | 10 | ₹412.05 · 10 in stock | View |
 | SN74ALS1034DR#C1848207TI · SOIC-14 | TI | SOIC-14 | 6 | ₹573.06 · 6 in stock | View |
