TIDatasheet (PDF)

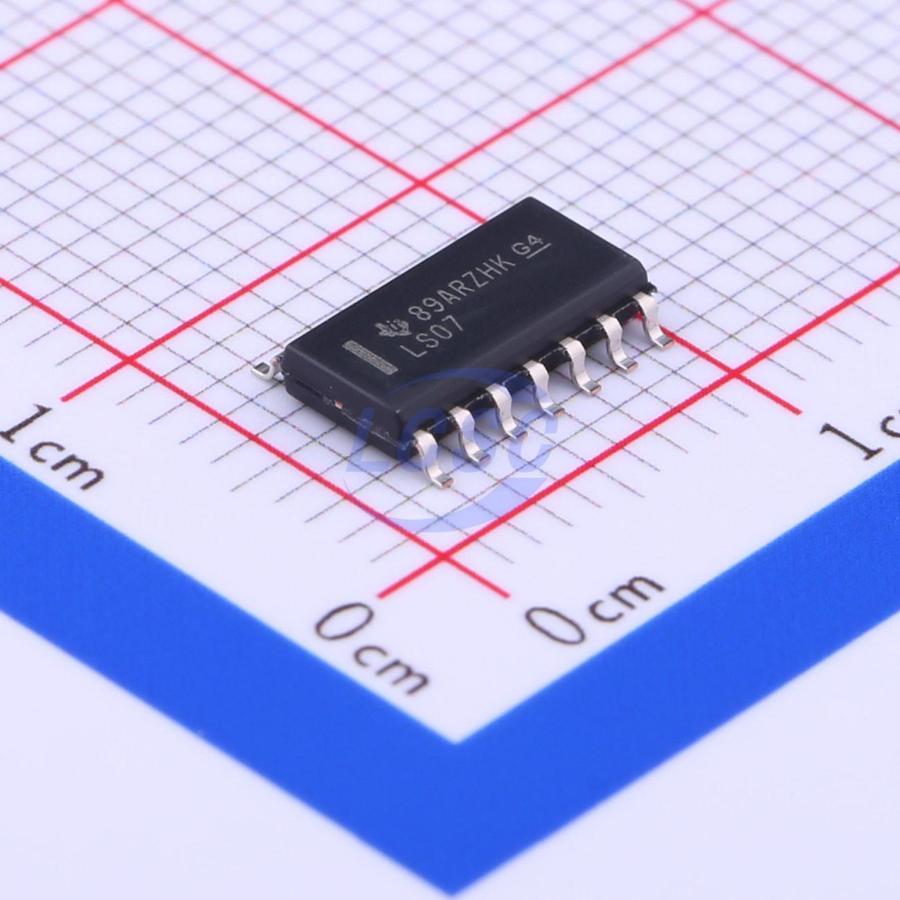

SN74LS07DR
4.75V~5.25V 1 6 10ns@5V,15pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive
Hex Buffers and Drivers With Open-Collector High-Voltage Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LS07DR
- Store part #
- C371970
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,140 in stock
#C371970
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.04 | ₹270.20 |
| 50+ | ₹43.61 | ₹2,180.50 |
| 150+ | ₹39.13 | ₹5,869.50 |
| 500+ | ₹31.94 | ₹15,970.00 |
| 2,500+ | ₹29.45 | ₹73,625.00 |
| 5,000+ | ₹27.95 | ₹1,39,750.00 |
5 × ₹54.04
₹270.20
excl. GST
₹318.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS07DR
₹270.20 for 5 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 250uA
- Series
- 74LS
- Voltage - Supply
- 4.75V~5.25V
- Output Type
- Open Collector
- Current - Output Low(IOL)
- 40mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Operating Temperature
- 0℃~+70℃
- Propagation Delay
- 10ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Overview
These hex buffers and drivers feature high-voltage open-collector outputs to interface with high-level circuits or for driving high-current loads. They are also characterized for use as buffers for driving TTL inputs. The SN74LS07 devices have a rated output voltage of 30 V. The maximum sink current is 40 mA. These circuits are compatible with most TTL families. Inputs are diode-clamped to minimize transmissionline effects, which simplifies design. Typical power dissipation is 140 mW, and average propagation delay time is 12 ns.
Applications
- AV Receivers
- Audio Docks
- Portable Blu-ray Players
- Home Theaters
- MP3 Players or Recorders
- Personal Digital Assistants (PDA)
- Power
- Telecom/Server AC/DC Supply
- Single Controller
- Analog and Digital
- Solid-State Drives (SSD)
- Client and Enterprise
- TVs: LCD, Digital, and High-Definition (HDTV)
- Tablets: Enterprise
- Video Analytics
- Server
- Wireless Headsets, Keyboards, and Mice
Key features
- Convert TTL Voltage Levels to MOS Levels
- High Sink-Current Capability
- Input Clamping Diodes Simplify System Design
- Open-Collector Driver for Indicator Lamps and Relays
