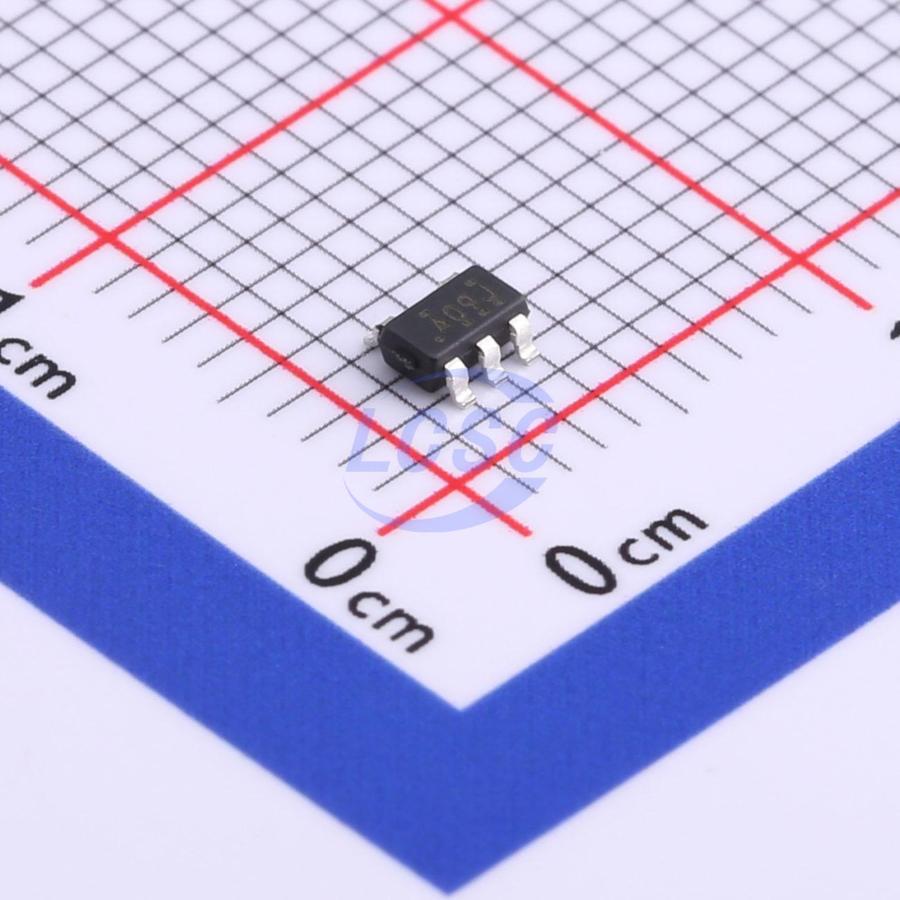

SN74AHC1G09DBVR
AND Gate IC 1 Channel SOT-23-5
SOT-23-5ROHS3 CompliantActive
Single-channel dual-input positive AND gate with open-drain output
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G09DBVR
- Store part #
- C840099
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31,740 in stock
#C840099
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.96 | ₹79.60 |
| 100+ | ₹6.28 | ₹628.00 |
| 300+ | ₹5.45 | ₹1,635.00 |
| 3,000+ | ₹4.42 | ₹13,260.00 |
| 6,000+ | ₹3.92 | ₹23,520.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹7.96
₹79.60
excl. GST
₹93.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G09DBVR
₹79.60 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Open-drain
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 650mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -55℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G08DBVR#C7467TI · SOT-23-5 | TI | SOT-23-5 | 12,110 | ₹8.35 · 12,110 in stock | View |
 | U74AHC1G09G-AF5-R#C53152882UTC · SOT-25 | UTC | SOT-25 | 500 | ₹11.67 · 500 in stock | View |
 | SN74AHC1G08QDBVRQ1#C133547TI · SOT-23-5 | TI | SOT-23-5 | 1,995 | ₹22.93 · 1,995 in stock | View |
 | 74AHC1G08W5-7#C460487DIODES · SOT-25 | DIODES | SOT-25 | 6,630 | ₹13.63 · 6,630 in stock | View |
 | SN74AHC1G08DBV3#C2877867TI · SOT-23-5 | TI | SOT-23-5 | 925 | ₹31.73 · 925 in stock | View |
