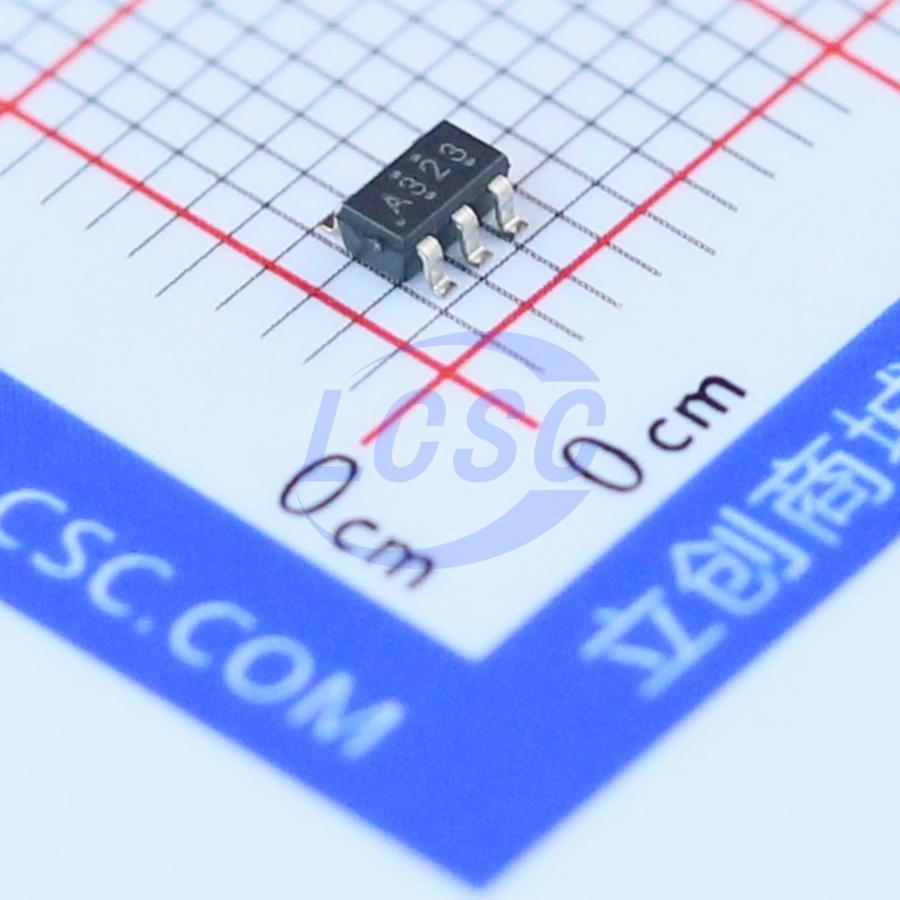

SN74AHC1G32DBVR
Schmitt trigger 2V~5.5V 6.5ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G32DBVR
- Store part #
- C7470
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,810 in stock
#C7470
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.49 | ₹94.90 |
| 100+ | ₹7.47 | ₹747.00 |
| 300+ | ₹6.47 | ₹1,941.00 |
| 3,000+ | ₹5.72 | ₹17,160.00 |
| 6,000+ | ₹5.11 | ₹30,660.00 |
| 9,000+ | ₹4.80 | ₹43,200.00 |
10 × ₹9.49
₹94.90
excl. GST
₹111.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G32DBVR
₹94.90 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 6.5ns@5V,50pF
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;2.48V;3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The SN74AHC1G32 is a single 2-input positive-OR gate. The device performs the Boolean function Y = A + B or Y = ¬(A • ¬B) in positive logic.
Key features
- Operating Range of δ₂ to 5.5 V
- Max tpd of 6.5 ns at 5 V
- Low Power Consumption, 10 - μA Max ICC
- ±8-mA Output Drive at 5 V
- Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G32TDBVRQ1#C507209TI · SOT-23-5 | TI | SOT-23-5 | 90 | ₹32.29 · 90 in stock | View |
 | MC74VHC1G32DBVT1G#C891476onsemi · SC-74A-5 | onsemi | SC-74A-5 | 50 | ₹12.50 · 50 in stock | View |
 | TP74AHC1G32S5#C52205198TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.77 · 2,990 in stock | View |
 | 74AHC1G32GV#C19829587TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,890 | ₹7.46 · 5,890 in stock | View |
 | SN74AHC1G32DBVR#C19829669TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,030 | ₹7.09 · 7,030 in stock | View |
