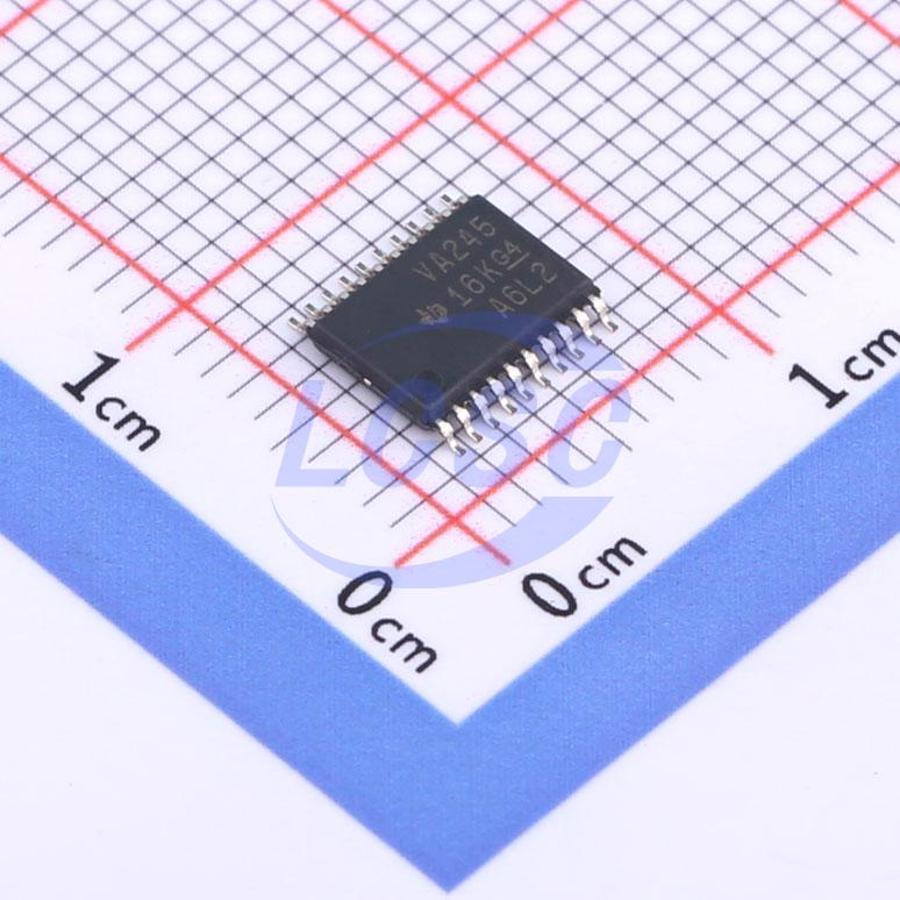

SN74ALVC245PWR
1.65V~3.6V 8 1 3.4ns@3.3V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal Bus Transceiver with 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74ALVC245PWR
- Store part #
- C2675545
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,883 in stock
#C2675545
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.77 | ₹116.77 |
| 10+ | ₹93.32 | ₹933.20 |
| 30+ | ₹81.60 | ₹2,448.00 |
| 100+ | ₹69.89 | ₹6,989.00 |
| 500+ | ₹62.95 | ₹31,475.00 |
| 1,000+ | ₹59.26 | ₹59,260.00 |
1 × ₹116.77
₹116.77
excl. GST
₹137.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74ALVC245PWR
₹116.77 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~3.6V
- Series
- 74ALVC
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.4ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
This octal bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The SN74ALVC245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE(overline)) input can be used to disable the device so the buses are effectively isolated. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Applications
- Asynchronous communication transfer between data buses
Key features
- Operates from 1.65 V to 3.6 V
- Max tpd of 3.4 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
